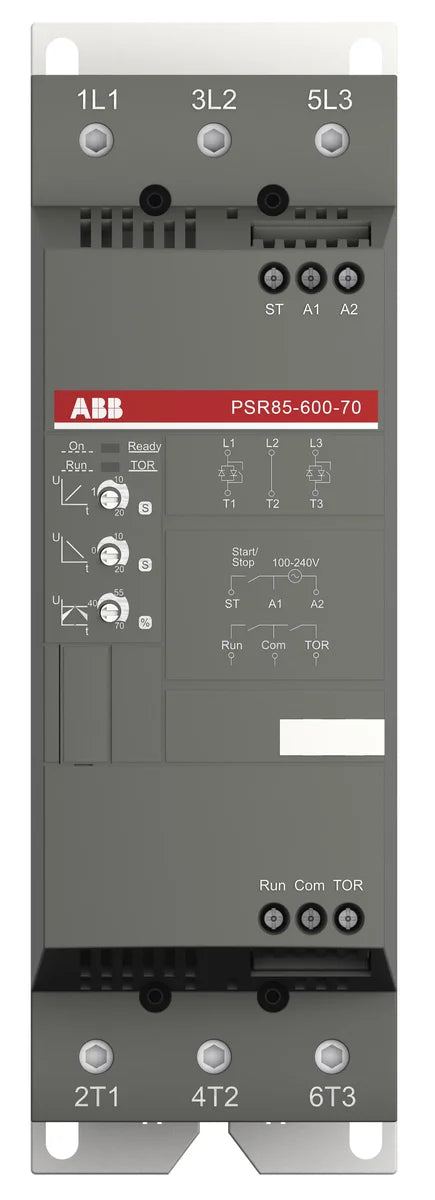

ABB 1SFA896114R7000 PSR85-600-70 85A 208-600V AC 3P 45kW Softstarter
Other ratings in PSR
All 13 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 22 | 45 | 1SFA896111R7000 | In stock | $387.96 |
| 30 | 60 | 1SFA896112R7000 | In stock | $464.31 |
| 37 | 72 | 1SFA896113R7000 | In stock | $511.64 |
| 45 | 85 | 1SFA896114R7000This part | In stock | $635.00 |
| 55 | 105 | 1SFA896115R7000 | Low stock | $693.92 |
Description
About the PSR85-600-70
About the PSR85-600-70
The ABB PSR85-600-70 softstarter (SKU: 1SFA896114R7000) is a 3-pole, 85 A compact softstarter rated for 208–600 V AC supply, delivering smooth motor starting and stopping for loads up to 45 kW. Designed for demanding industrial automation environments, the PSR85-600-70 reduces mechanical stress and inrush current, extending motor and drivetrain service life while fitting neatly into space-constrained control panels with its 70 mm × 220 mm × 180 mm profile.
Certifications & Standards
- CE: Complies with European Union directives for electrical equipment safety and electromagnetic compatibility
- RoHS: Restriction of Hazardous Substances — free from regulated hazardous materials per EU Directive 2011/65/EU
- REACH: Complies with EU REACH regulation on chemical substance registration and safety
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal
- IEC 60947-1: Low-voltage switchgear and controlgear — general rules, verified per international IEC standard
- IEC 60529: Ingress protection classification standard
- CSA: Certified by the Canadian Standards Association for North American markets
- CCC: China Compulsory Certification for market access in the People's Republic of China
Applications & Use Cases
The ABB PSR85-600-70 softstarter is widely used across industrial automation and motor control applications where controlled acceleration and deceleration are essential. Typical applications include pumps, fans, compressors, conveyors, and centrifugal loads in manufacturing plants, water treatment facilities, HVAC systems, and process industries. With its wide voltage range of 208–600 V AC and compact DIN-rail-compatible form factor, the PSR85-600-70 integrates seamlessly into control panels, motor control centres (MCCs), and enclosed switch assemblies. The 110–250 V control voltage range accommodates diverse plant control architectures without additional transformers.
Specification
Full specification
Dimensions 4
| Product Net Width | 70 mm |
|---|---|
| Product Net Height | 220 mm |
| Product Net Depth / Length | 180 mm |
| Product Net Weight | 2.1 kg |
Technical 33
| Rated Operational Voltage | 208 ... 600 V AC |
|---|---|
| Rated Control Supply Voltage (Us) | 100 ... 240 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz, Main Circuit 50 / 60 Hz |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 22 kW, (400 V) 45 kW, (500 V) 55 kW |
| Rated Operational Current - In-Line Connection (Ie) | 85 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Recommended MS495 70 ... 90 |
| Integrated Electronic Overload | No |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 6s |
| Ramp Time | 0 ... 20 s, 1 ... 10 s |
| Initial Voltage During Start | 40 ... 70 % |
| Step Down Voltage Special Ramp | 100 ... 60 % |
| Current Limit Function | No |
| Switch for Inside Delta Connection | No |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | No |
| Overload Signal Relay | No |
| Signal Indication Completed Start Ramp (LED) | Green |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Ramping Up/Down (LED) | Green |
| Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time | 10 |
| Communication | FiledBusPlug(Optional) |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| Terminal Type | Main Circuit: Bars |
| Connecting Capacity Main Circuit | Rigid 1x 10 ... 95 mm², Rigid 2 x 6 ... 35 mm² |
| Connecting Capacity Control Circuit | 1 x 0.75 ... 2.5 mm², 2 x 0.75 ... 2.5 mm², Rigid 1 x 0.75 ... 2.5 mm², Rigid 2 x 0.75 ... 1.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1 x 0.75 ... 2.5 |
| Tightening Torque | Control Circuit 0.6 N·m, Main Circuit 8 N·m, Supply Circuit 0.6 N·m |
| Product Main Type | PSR85 |
| Function | Soft start with voltage ramp, Soft stop with voltage ramp |
Technical UL/CSA 3
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 25 Hp, (220 ... 240 V AC) Three Phase 30 Hp, (440 ... 480 V AC) Three Phase 60 Hp, (550 ... 600 V AC) Three Phase 75 Hp |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Control Circuit 5.3 in·lb, Main Circuit 70.8, Supply Circuit 5.3 in·lb |
Show all 70 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA896114R7000 |
|---|---|
| Type designation | PSR85-600-70 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500362631 |
| eCl@ss | 27370907 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
Environmental 1
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +70 °C |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006481 |
|---|---|
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 3
| ETIM 7 | EC000640 - Soft starter |
|---|---|
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
Logistics 10
| Package Level 1 Width | 195 mm |
|---|---|
| Package Level 1 Depth / Length | 86 mm |
| Package Level 1 Height | 230 mm |
| Package Level 1 Gross Weight | 2.3 kg |
| Package Level 1 EAN | 7320500362631 |
| Package Level 1 Units | box 1 piece |
| Shipping weight | 2.3 kg |
| Ships from | Türkiye |
| Dispatch | 12 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA896114R7000
No documents are on file for this part yet.
Ask us for the datasheet
Other ratings
All 13 ratings in PSR
ABB PSR series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 1.5 kW | 3.9 A | 1SFA896103R7000 | PSR3-600-70 | In stock | $138.51 | ||
| 3 kW | 6.8 A | 1SFA896104R7000 | PSR6-600-70 | In stock | $142.27 | ||
| 4 kW | 4 A | 1SFA896105R7000 | PSR9-600-70 | In stock | $142.27 | ||
| 5.5 kW | 5.5 A | 1SFA896106R7000 | PSR12-600-70 | In stock | $147.59 | ||
| 7.5 kW | 16 A | 1SFA896107R7000 | PSR16-600-70 | In stock | $177.30 | ||
| 11 kW | 25 A | 1SFA896108R7000 | PSR25-600-70 | In stock | $182.94 | ||
| 15 kW | 30 A | 1SFA896109R7000 | PSR30-600-70 | In stock | $222.70 | ||
| 18.5 kW | 37 A | 1SFA896110R7000 | PSR37-600-70 | Critical stock | $316.08 | ||
| 22 kW | 45 A | 1SFA896111R7000 | PSR45-600-70 | In stock | $387.96 | ||
| 30 kW | 60 A | 1SFA896112R7000 | PSR60-600-70 | In stock | $464.31 | ||
| 37 kW | 72 A | 1SFA896113R7000 | PSR72-600-70 | In stock | $511.64 | ||
| 45 kW | 85 A | 1SFA896114R7000 This part | PSR85-600-70 | In stock | $635.00 | ||
| 55 kW | 105 A | 1SFA896115R7000 | PSR105-600-70 | Low stock | $693.92 |
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- CCC
Quick answers
Questions about the PSR85-600-70
What is the rated current of PSR85-600-70?
The rated current of PSR85-600-70 is 85 A.
Which supply voltage is PSR85-600-70 rated for?
The rated operational voltage of PSR85-600-70 is 208–600 V AC.
What motor power is PSR85-600-70 rated for?
The rated motor power of PSR85-600-70 is 45 kW.
Which control voltage does PSR85-600-70 need?
The control voltage range of PSR85-600-70 is 110–250 V.
What is the HS code of PSR85-600-70 for customs?
The tariff (HS) code on file for PSR85-600-70 is 853710.
What is the EAN of PSR85-600-70?
The EAN (GTIN) of PSR85-600-70 is 7320500362631.
Where does PSR85-600-70 ship from, and how fast?
PSR85-600-70 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
