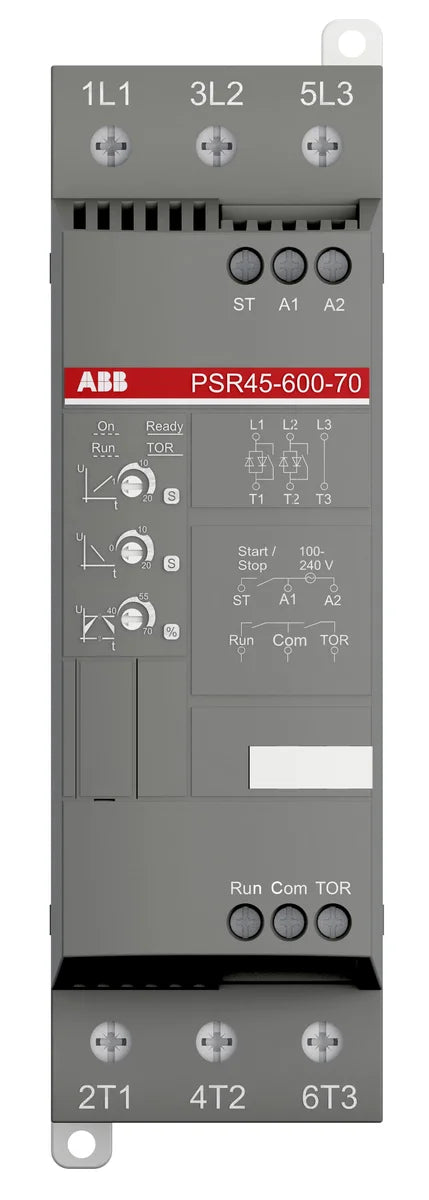

ABB 1SFA896111R7000 PSR45-600-70 45A 3P 208-600V AC 22kW Softstarter
Other ratings in PSR
All 13 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 15 | 30 | 1SFA896109R7000 | In stock | $222.70 |
| 18.5 | 37 | 1SFA896110R7000 | Critical stock | $316.08 |
| 22 | 45 | 1SFA896111R7000This part | In stock | $387.96 |
| 30 | 60 | 1SFA896112R7000 | In stock | $464.31 |
| 37 | 72 | 1SFA896113R7000 | In stock | $511.64 |
Description
About the PSR45-600-70
About the PSR45-600-70
The ABB PSR45-600-70 (SKU: 1SFA896111R7000) is a 45A three-pole softstarter from ABB's PSR series, designed to provide smooth motor starting and stopping across a wide supply voltage range of 208–600V AC. Rated for 22kW motor loads, the PSR45-600-70 supports control voltages of 110–250V and fits standard DIN-rail or panel installations with compact 54mm × 187mm × 153mm dimensions. Ideal for pumps, fans, compressors, and conveyor applications, this softstarter reduces mechanical stress and inrush current in industrial automation systems.
Certifications & Standards
- CE: Complies with EU directives for electrical equipment placed on the European market
- IEC 60947-1: General rules for low-voltage switchgear and controlgear
- IEC 60529: Degrees of protection provided by enclosures (IP rating standard)
- CSA: Canadian Standards Association certification for North American markets
- CCC: China Compulsory Certification for the Chinese market
- KC: Korea Certification mark for the South Korean market
- RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
- REACH: Compliant with EU REACH regulation on chemical substance safety
- WEEE: Waste Electrical and Electronic Equipment Directive compliance for responsible disposal
Applications & Use Cases
- Pump and fan motor soft-starting to reduce water hammer and mechanical wear
- Compressor and conveyor belt drives requiring controlled acceleration and deceleration
- Industrial automation control panels where inrush current limitation is critical
- HVAC systems requiring energy-efficient motor management
- Applications across a wide global supply voltage range (208–600V AC), including North American, European, and Asian installations
Specification
Full specification
Dimensions 4
| Product Net Width | 54 mm |
|---|---|
| Product Net Height | 187 mm |
| Product Net Depth / Length | 153 mm |
| Product Net Weight | 1 kg |
Technical 33
| Rated Operational Voltage | 208 ... 600 V AC |
|---|---|
| Rated Control Supply Voltage (Us) | 100 ... 240 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz, Main Circuit 50 / 60 Hz |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 11 kW, (400 V) 22 kW, (500 V) 30 kW |
| Rated Operational Current - In-Line Connection (Ie) | 45 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Recommended MS450 36 ... 45 |
| Integrated Electronic Overload | No |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 6s |
| Ramp Time | 0 ... 20 s, 1 ... 10 s |
| Initial Voltage During Start | 40 ... 70 % |
| Step Down Voltage Special Ramp | 100 ... 60 % |
| Current Limit Function | No |
| Switch for Inside Delta Connection | No |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | No |
| Overload Signal Relay | No |
| Signal Indication Completed Start Ramp (LED) | Green |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Ramping Up/Down (LED) | Green |
| Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time | 10 |
| Communication | FiledBusPlug(Optional) |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit | Rigid 1x 6 ... 35 mm², Rigid 2 x 6 ... 16 mm² |
| Connecting Capacity Control Circuit | 1 x 0.75 ... 2.5 mm², 2 x 0.75 ... 2.5 mm², Rigid 1 x 0.75 ... 2.5 mm², Rigid 2 x 0.75 ... 1.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1 x 0.75 ... 2.5 |
| Tightening Torque | Control Circuit 0.6 N·m, Main Circuit 4 N·m, Supply Circuit 0.6 N·m |
| Product Main Type | PSR45 |
| Function | Soft start with voltage ramp, Soft stop with voltage ramp |
Technical UL/CSA 3
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 15 Hp, (220 ... 240 V AC) Three Phase 15 Hp, (440 ... 480 V AC) Three Phase 30 Hp, (550 ... 600 V AC) Three Phase 40 Hp |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Control Circuit 5.3 in·lb, Main Circuit 35.4, Supply Circuit 5.3 in·lb |
Show all 70 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA896111R7000 |
|---|---|
| Type designation | PSR45-600-70 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500338346 |
| eCl@ss | 27370907 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
Environmental 1
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +70 °C |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006481 |
|---|---|
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 3
| ETIM 7 | EC000640 - Soft starter |
|---|---|
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
Logistics 10
| Package Level 1 Width | 163 mm |
|---|---|
| Package Level 1 Depth / Length | 56 mm |
| Package Level 1 Height | 217 mm |
| Package Level 1 Gross Weight | 1.1 kg |
| Package Level 1 EAN | 7320500338346 |
| Package Level 1 Units | box 1 piece |
| Shipping weight | 1.1 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA896111R7000
No documents are on file for this part yet.
Ask us for the datasheet
Other ratings
All 13 ratings in PSR
ABB PSR series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 1.5 kW | 3.9 A | 1SFA896103R7000 | PSR3-600-70 | In stock | $138.51 | ||
| 3 kW | 6.8 A | 1SFA896104R7000 | PSR6-600-70 | In stock | $142.27 | ||
| 4 kW | 4 A | 1SFA896105R7000 | PSR9-600-70 | In stock | $142.27 | ||
| 5.5 kW | 5.5 A | 1SFA896106R7000 | PSR12-600-70 | In stock | $147.59 | ||
| 7.5 kW | 16 A | 1SFA896107R7000 | PSR16-600-70 | In stock | $177.30 | ||
| 11 kW | 25 A | 1SFA896108R7000 | PSR25-600-70 | In stock | $182.94 | ||
| 15 kW | 30 A | 1SFA896109R7000 | PSR30-600-70 | In stock | $222.70 | ||
| 18.5 kW | 37 A | 1SFA896110R7000 | PSR37-600-70 | Critical stock | $316.08 | ||
| 22 kW | 45 A | 1SFA896111R7000 This part | PSR45-600-70 | In stock | $387.96 | ||
| 30 kW | 60 A | 1SFA896112R7000 | PSR60-600-70 | In stock | $464.31 | ||
| 37 kW | 72 A | 1SFA896113R7000 | PSR72-600-70 | In stock | $511.64 | ||
| 45 kW | 85 A | 1SFA896114R7000 | PSR85-600-70 | In stock | $635.00 | ||
| 55 kW | 105 A | 1SFA896115R7000 | PSR105-600-70 | Low stock | $693.92 |
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- CCC
Quick answers
Questions about the PSR45-600-70
What is the rated current of PSR45-600-70?
The rated current of PSR45-600-70 is 45 A.
Which supply voltage is PSR45-600-70 rated for?
The rated operational voltage of PSR45-600-70 is 208–600 V AC.
What motor power is PSR45-600-70 rated for?
The rated motor power of PSR45-600-70 is 22 kW.
Which control voltage does PSR45-600-70 need?
The control voltage range of PSR45-600-70 is 110–250 V.
What is the HS code of PSR45-600-70 for customs?
The tariff (HS) code on file for PSR45-600-70 is 853710.
What is the EAN of PSR45-600-70?
The EAN (GTIN) of PSR45-600-70 is 7320500338346.
Where does PSR45-600-70 ship from, and how fast?
PSR45-600-70 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
