ABB 1SFA896112R7000 PSR60-600-70 60A 3P 208-600V AC 30kW Softstarter
Other ratings in PSR
All 13 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 18.5 | 37 | 1SFA896110R7000 | Critical stock | $316.08 |
| 22 | 45 | 1SFA896111R7000 | In stock | $387.96 |
| 30 | 60 | 1SFA896112R7000This part | In stock | $464.31 |
| 37 | 72 | 1SFA896113R7000 | In stock | $511.64 |
| 45 | 85 | 1SFA896114R7000 | In stock | $635.00 |
Description
About the PSR60-600-70
About the PSR60-600-70

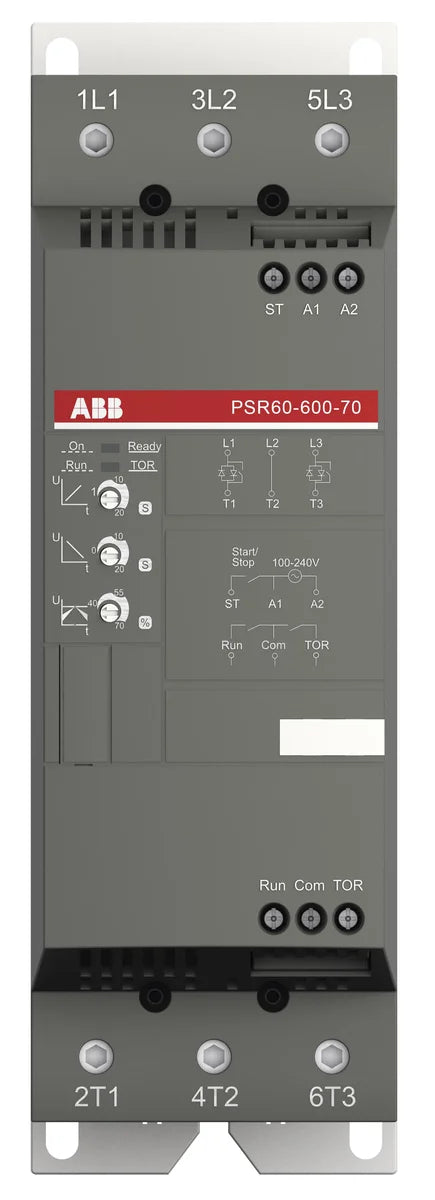

The ABB PSR60-600-70 softstarter (SKU 1SFA896112R7000) is a 60 A, 3-pole, 208–600 V AC compact soft starter rated for 30 kW motor loads, delivering smooth motor acceleration and deceleration to reduce mechanical stress and extend equipment life. Designed for industrial automation and control panel integration, the PSR60-600-70 features a wide supply voltage range of 208–600 V AC and an auxiliary control voltage of 110–250 V, making it suitable for global deployment across diverse plant environments.
Certifications & Standards
- CE: Conforms to applicable European Union directives for electrical equipment safety and electromagnetic compatibility.
- IEC 60947-1: Compliant with the international standard for low-voltage switchgear and controlgear — general rules.
- CSA: Certified by the Canadian Standards Association for use in North American markets.
- RoHS: Compliant with the Restriction of Hazardous Substances Directive, limiting use of specified hazardous materials in electrical equipment.
- RoHS II: Meets the updated RoHS II (2011/65/EU) requirements covering additional substance restrictions and product categories.
- REACh / REACH: Compliant with the EU REACH regulation (Registration, Evaluation, Authorisation and Restriction of Chemicals), ensuring safe chemical management.
- WEEE: Compliant with the Waste Electrical and Electronic Equipment Directive, supporting responsible end-of-life disposal and recycling.
- CCC: China Compulsory Certification, authorising sale and use within the Chinese market.
Applications & Use Cases
- Soft starting and stopping of AC induction motors in pumps, fans, compressors, and conveyors
- Reduction of inrush current during motor startup to protect distribution systems and connected loads
- Control panel integration in manufacturing, water treatment, HVAC, and process automation installations
- Global plant deployments requiring wide voltage range (208–600 V AC) compatibility
- Applications demanding compact DIN-rail or panel-mount form factor (70 mm wide)
Specification
Full specification
Dimensions 4
| Product Net Width | 70 mm |
|---|---|
| Product Net Height | 220 mm |
| Product Net Depth / Length | 180 mm |
| Product Net Weight | 2.1 kg |
Technical 33
| Rated Operational Voltage | 208 ... 600 V AC |
|---|---|
| Rated Control Supply Voltage (Us) | 100 ... 240 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz, Main Circuit 50 / 60 Hz |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 15 kW, (400 V) 30 kW, (500 V) 37 kW |
| Rated Operational Current - In-Line Connection (Ie) | 60 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Recommended MS495 45 ... 63 |
| Integrated Electronic Overload | No |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 6s |
| Ramp Time | 0 ... 20 s, 1 ... 10 s |
| Initial Voltage During Start | 40 ... 70 % |
| Step Down Voltage Special Ramp | 100 ... 60 % |
| Current Limit Function | No |
| Switch for Inside Delta Connection | No |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | No |
| Overload Signal Relay | No |
| Signal Indication Completed Start Ramp (LED) | Green |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Ramping Up/Down (LED) | Green |
| Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time | 10 |
| Communication | FiledBusPlug(Optional) |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| Terminal Type | Main Circuit: Bars |
| Connecting Capacity Main Circuit | Rigid 1x 10 ... 95 mm², Rigid 2 x 6 ... 35 mm² |
| Connecting Capacity Control Circuit | 1 x 0.75 ... 2.5 mm², 2 x 0.75 ... 2.5 mm², Rigid 1 x 0.75 ... 2.5 mm², Rigid 2 x 0.75 ... 1.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1 x 0.75 ... 2.5 |
| Tightening Torque | Control Circuit 0.6 N·m, Main Circuit 8 N·m, Supply Circuit 0.6 N·m |
| Product Main Type | PSR60 |
| Function | Soft start with voltage ramp, Soft stop with voltage ramp |
Technical UL/CSA 3
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 20 Hp, (220 ... 240 V AC) Three Phase 20 Hp, (440 ... 480 V AC) Three Phase 40 Hp, (550 ... 600 V AC) Three Phase 50 Hp |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Control Circuit 5.3 in·lb, Main Circuit 70.8, Supply Circuit 5.3 in·lb |
Show all 70 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA896112R7000 |
|---|---|
| Type designation | PSR60-600-70 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500362594 |
| eCl@ss | 27370907 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
Environmental 1
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +70 °C |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006481 |
|---|---|
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 3
| ETIM 7 | EC000640 - Soft starter |
|---|---|
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
Logistics 10
| Package Level 1 Width | 195 mm |
|---|---|
| Package Level 1 Depth / Length | 86 mm |
| Package Level 1 Height | 230 mm |
| Package Level 1 Gross Weight | 2.3 kg |
| Package Level 1 EAN | 7320500362594 |
| Package Level 1 Units | box 1 piece |
| Shipping weight | 2.3 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA896112R7000
No documents are on file for this part yet.
Ask us for the datasheet
Other ratings
All 13 ratings in PSR
ABB PSR series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 1.5 kW | 3.9 A | 1SFA896103R7000 | PSR3-600-70 | In stock | $138.51 | ||
| 3 kW | 6.8 A | 1SFA896104R7000 | PSR6-600-70 | In stock | $142.27 | ||
| 4 kW | 4 A | 1SFA896105R7000 | PSR9-600-70 | In stock | $142.27 | ||
| 5.5 kW | 5.5 A | 1SFA896106R7000 | PSR12-600-70 | In stock | $147.59 | ||
| 7.5 kW | 16 A | 1SFA896107R7000 | PSR16-600-70 | In stock | $177.30 | ||
| 11 kW | 25 A | 1SFA896108R7000 | PSR25-600-70 | In stock | $182.94 | ||
| 15 kW | 30 A | 1SFA896109R7000 | PSR30-600-70 | In stock | $222.70 | ||
| 18.5 kW | 37 A | 1SFA896110R7000 | PSR37-600-70 | Critical stock | $316.08 | ||
| 22 kW | 45 A | 1SFA896111R7000 | PSR45-600-70 | In stock | $387.96 | ||
| 30 kW | 60 A | 1SFA896112R7000 This part | PSR60-600-70 | In stock | $464.31 | ||
| 37 kW | 72 A | 1SFA896113R7000 | PSR72-600-70 | In stock | $511.64 | ||
| 45 kW | 85 A | 1SFA896114R7000 | PSR85-600-70 | In stock | $635.00 | ||
| 55 kW | 105 A | 1SFA896115R7000 | PSR105-600-70 | Low stock | $693.92 |
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- CCC
Quick answers
Questions about the PSR60-600-70
What is the rated current of PSR60-600-70?
The rated current of PSR60-600-70 is 60 A.
Which supply voltage is PSR60-600-70 rated for?
The rated operational voltage of PSR60-600-70 is 208–600 V AC.
What motor power is PSR60-600-70 rated for?
The rated motor power of PSR60-600-70 is 30 kW.
Which control voltage does PSR60-600-70 need?
The control voltage range of PSR60-600-70 is 110–250 V.
What is the HS code of PSR60-600-70 for customs?
The tariff (HS) code on file for PSR60-600-70 is 853710.
What is the EAN of PSR60-600-70?
The EAN (GTIN) of PSR60-600-70 is 7320500362594.
Where does PSR60-600-70 ship from, and how fast?
PSR60-600-70 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
