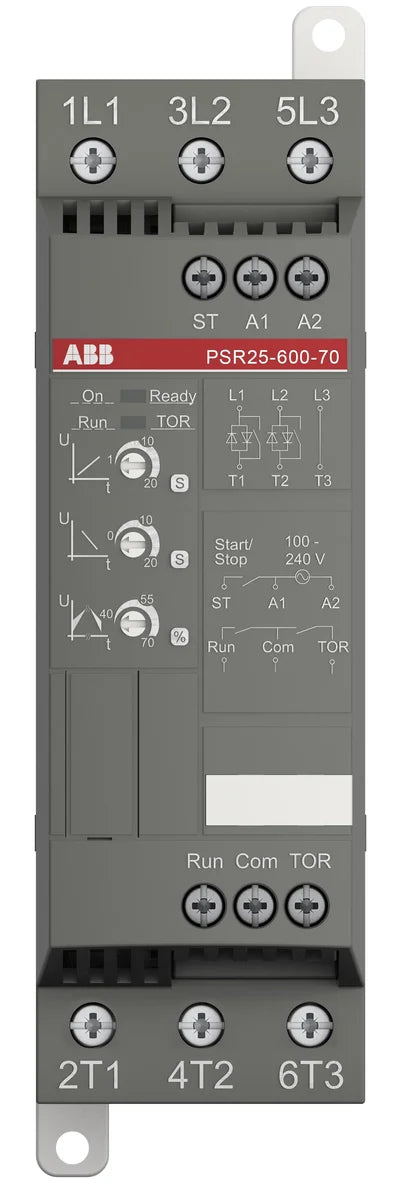

ABB 1SFA896108R7000 PSR25-600-70 25A 3P 208-600V AC 11kW Soft Starter
Other ratings in PSR
All 13 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 5.5 | 5.5 | 1SFA896106R7000 | In stock | $147.59 |
| 7.5 | 16 | 1SFA896107R7000 | In stock | $177.30 |
| 11 | 25 | 1SFA896108R7000This part | In stock | $182.94 |
| 15 | 30 | 1SFA896109R7000 | In stock | $222.70 |
| 18.5 | 37 | 1SFA896110R7000 | Critical stock | $316.08 |
Description
About the PSR25-600-70
About the PSR25-600-70
The ABB PSR25-600-70 (SKU: 1SFA896108R7000) is a compact 3-pole soft starter rated at 25A and 11kW, designed for smooth motor starting and stopping across a wide supply voltage range of 208–600V AC. Part of ABB's trusted PSR series, the PSR25-600-70 accepts a control voltage of 110–250V and fits neatly into control panels with its 45mm × 160mm × 128mm footprint and lightweight 0.6kg body — making it ideal for industrial automation, pump and fan applications, and conveyor systems requiring controlled acceleration.
Certifications & Standards
- CE: Compliant with European Union directives for electrical equipment
- IEC 60947-1: Low-voltage switchgear and controlgear — general rules
- CSA: Certified to Canadian Standards Association requirements
- CCC: China Compulsory Certification for the Chinese market
- KC: Korean Certification mark for South Korean market compliance
- RoHS: Restriction of Hazardous Substances — EU Directive 2011/65/EU
- RoHS II: Enhanced restriction of hazardous substances per updated EU directive
- REACH: Compliance with EU REACH regulation on chemical substances
- WEEE: Waste Electrical and Electronic Equipment Directive compliance
Applications & Use Cases
- Smooth starting and stopping of AC induction motors in industrial environments
- Pump and fan applications requiring controlled ramp-up to reduce water hammer and mechanical stress
- Conveyor systems and material handling equipment
- Compressors and mixers in process automation
- Control panels requiring a compact, lightweight soft starter solution
Specification
Full specification
Dimensions 4
| Product Net Width | 45 mm |
|---|---|
| Product Net Height | 160 mm |
| Product Net Depth / Length | 128 mm |
| Product Net Weight | 0.6 kg |
Technical 33
| Rated Operational Voltage | 208 ... 600 V AC |
|---|---|
| Rated Control Supply Voltage (Us) | 100 ... 240 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz, Main Circuit 50 / 60 Hz |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 5.5 kW, (400 V) 11 kW, (500 V) 15 kW |
| Rated Operational Current - In-Line Connection (Ie) | 25 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Recommended MS132 20 ... 25 |
| Integrated Electronic Overload | No |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 6s |
| Ramp Time | 0 ... 20 s, 1 ... 10 s |
| Initial Voltage During Start | 40 ... 70 % |
| Step Down Voltage Special Ramp | 100 ... 60 % |
| Current Limit Function | No |
| Switch for Inside Delta Connection | No |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | No |
| Overload Signal Relay | No |
| Signal Indication Completed Start Ramp (LED) | Green |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Ramping Up/Down (LED) | Green |
| Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time | 10 |
| Communication | FiledBusPlug(Optional) |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit | Rigid 1/2 x 2.5 ... 10 mm² |
| Connecting Capacity Control Circuit | 1 x 0.75 ... 2.5 mm², 2 x 0.75 ... 2.5 mm², Rigid 1 x 0.75 ... 2.5 mm², Rigid 2 x 0.75 ... 1.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1 x 0.75 ... 2.5 |
| Tightening Torque | Control Circuit 0.6 N·m, Main Circuit 2.3 N·m, Supply Circuit 0.6 N·m |
| Product Main Type | PSR25 |
| Function | Soft start with voltage ramp, Soft stop with voltage ramp |
Technical UL/CSA 3
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 7.5 Hp, (220 ... 240 V AC) Three Phase 7.5 Hp, (440 ... 480 V AC) Three Phase 15 Hp, (550 ... 600 V AC) Three Phase 20 Hp |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Control Circuit 5.3 in·lb, Main Circuit 20.4, Supply Circuit 5.3 in·lb |
Show all 70 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA896108R7000 |
|---|---|
| Type designation | PSR25-600-70 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500338285 |
| eCl@ss | 27370907 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
Environmental 1
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +70 °C |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006481 |
|---|---|
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 3
| ETIM 7 | EC000640 - Soft starter |
|---|---|
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
Logistics 10
| Package Level 1 Width | 137 mm |
|---|---|
| Package Level 1 Depth / Length | 50 mm |
| Package Level 1 Height | 176 mm |
| Package Level 1 Gross Weight | 0.7 kg |
| Package Level 1 EAN | 7320500338285 |
| Package Level 1 Units | box 1 piece |
| Shipping weight | 0.7 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA896108R7000
No documents are on file for this part yet.
Ask us for the datasheet
Other ratings
All 13 ratings in PSR
ABB PSR series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 1.5 kW | 3.9 A | 1SFA896103R7000 | PSR3-600-70 | In stock | $138.51 | ||
| 3 kW | 6.8 A | 1SFA896104R7000 | PSR6-600-70 | In stock | $142.27 | ||
| 4 kW | 4 A | 1SFA896105R7000 | PSR9-600-70 | In stock | $142.27 | ||
| 5.5 kW | 5.5 A | 1SFA896106R7000 | PSR12-600-70 | In stock | $147.59 | ||
| 7.5 kW | 16 A | 1SFA896107R7000 | PSR16-600-70 | In stock | $177.30 | ||
| 11 kW | 25 A | 1SFA896108R7000 This part | PSR25-600-70 | In stock | $182.94 | ||
| 15 kW | 30 A | 1SFA896109R7000 | PSR30-600-70 | In stock | $222.70 | ||
| 18.5 kW | 37 A | 1SFA896110R7000 | PSR37-600-70 | Critical stock | $316.08 | ||
| 22 kW | 45 A | 1SFA896111R7000 | PSR45-600-70 | In stock | $387.96 | ||
| 30 kW | 60 A | 1SFA896112R7000 | PSR60-600-70 | In stock | $464.31 | ||
| 37 kW | 72 A | 1SFA896113R7000 | PSR72-600-70 | In stock | $511.64 | ||
| 45 kW | 85 A | 1SFA896114R7000 | PSR85-600-70 | In stock | $635.00 | ||
| 55 kW | 105 A | 1SFA896115R7000 | PSR105-600-70 | Low stock | $693.92 |
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- CCC
Quick answers
Questions about the PSR25-600-70
What is the rated current of PSR25-600-70?
The rated current of PSR25-600-70 is 25 A.
Which supply voltage is PSR25-600-70 rated for?
The rated operational voltage of PSR25-600-70 is 208–600 V AC.
What motor power is PSR25-600-70 rated for?
The rated motor power of PSR25-600-70 is 11 kW.
Which control voltage does PSR25-600-70 need?
The control voltage range of PSR25-600-70 is 110–250 V.
What is the HS code of PSR25-600-70 for customs?
The tariff (HS) code on file for PSR25-600-70 is 853710.
What is the EAN of PSR25-600-70?
The EAN (GTIN) of PSR25-600-70 is 7320500338285.
Where does PSR25-600-70 ship from, and how fast?
PSR25-600-70 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
