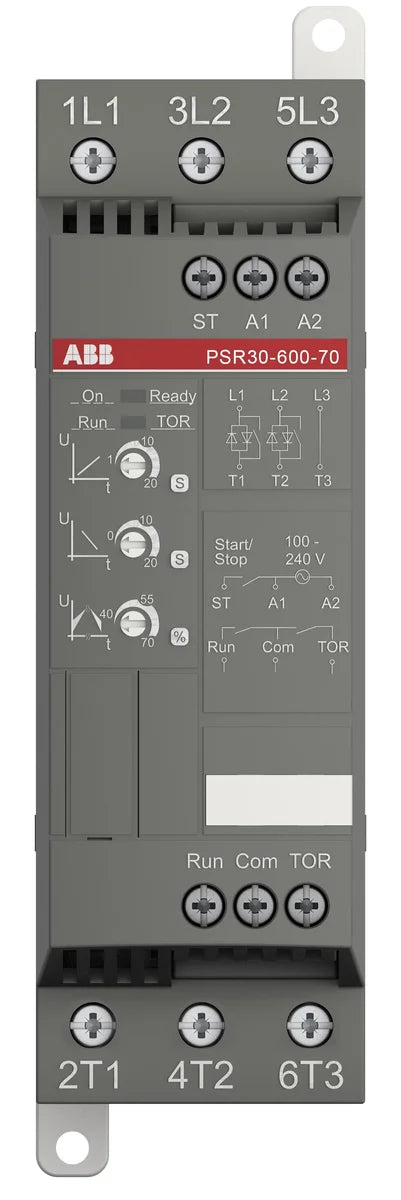

ABB 1SFA896109R7000 PSR30-600-70 30A 208-600V AC 3P 15kW Soft Starter
Other ratings in PSR
All 13 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 7.5 | 16 | 1SFA896107R7000 | In stock | $177.30 |
| 11 | 25 | 1SFA896108R7000 | In stock | $182.94 |
| 15 | 30 | 1SFA896109R7000This part | In stock | $222.70 |
| 18.5 | 37 | 1SFA896110R7000 | Critical stock | $316.08 |
| 22 | 45 | 1SFA896111R7000 | In stock | $387.96 |
Description
About the PSR30-600-70
About the PSR30-600-70
The ABB PSR30-600-70 soft starter (SKU: 1SFA896109R7000) is a compact, 3-pole electronic soft starter rated at 30 A and 15 kW, designed for smooth motor starting and stopping across a wide supply voltage range of 208–600 V AC. Part of the ABB PSR series, the PSR30-600-70 accepts a control voltage of 110–250 V and delivers reliable reduced-voltage starting for induction motors in industrial automation and control panel applications.
Certifications & Standards
- CE: Compliant with European Union directives for market access
- IEC 60947-1: Meets international standard for low-voltage switchgear and controlgear
- CSA: Certified for North American market requirements
- CCC: China Compulsory Certification for the Chinese market
- KC: Korea Certification mark for the South Korean market
- RoHS: Restriction of Hazardous Substances compliant
- RoHS II: Compliant with the updated EU RoHS Directive 2011/65/EU
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive
Applications & Use Cases
- Smooth starting and stopping of 3-phase induction motors in industrial automation systems
- Pump and fan motor control to reduce mechanical stress and water hammer
- Conveyor and compressor applications requiring controlled acceleration
- Control panel integration where DIN rail space is at a premium
- HVAC systems and building automation requiring energy-efficient motor management
Specification
Full specification
Dimensions 4
| Product Net Width | 45 mm |
|---|---|
| Product Net Height | 160 mm |
| Product Net Depth / Length | 128 mm |
| Product Net Weight | 0.6 kg |
Technical 33
| Rated Operational Voltage | 208 ... 600 V AC |
|---|---|
| Rated Control Supply Voltage (Us) | 100 ... 240 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz, Main Circuit 50 / 60 Hz |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 7.5 kW, (400 V) 15 kW, (500 V) 18.5 kW |
| Rated Operational Current - In-Line Connection (Ie) | 30 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Recommended MS132 25 ... 32 |
| Integrated Electronic Overload | No |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 6s |
| Ramp Time | 0 ... 20 s, 1 ... 10 s |
| Initial Voltage During Start | 40 ... 70 % |
| Step Down Voltage Special Ramp | 100 ... 60 % |
| Current Limit Function | No |
| Switch for Inside Delta Connection | No |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | No |
| Overload Signal Relay | No |
| Signal Indication Completed Start Ramp (LED) | Green |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Ramping Up/Down (LED) | Green |
| Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time | 10 |
| Communication | FiledBusPlug(Optional) |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit | Rigid 1/2 x 2.5 ... 10 mm² |
| Connecting Capacity Control Circuit | 1 x 0.75 ... 2.5 mm², 2 x 0.75 ... 2.5 mm², Rigid 1 x 0.75 ... 2.5 mm², Rigid 2 x 0.75 ... 1.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1 x 0.75 ... 2.5 |
| Tightening Torque | Control Circuit 0.6 N·m, Main Circuit 2.3 N·m, Supply Circuit 0.6 N·m |
| Product Main Type | PSR30 |
| Function | Soft start with voltage ramp, Soft stop with voltage ramp |
Technical UL/CSA 3
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 7.5 Hp, (220 ... 240 V AC) Three Phase 10 Hp, (440 ... 480 V AC) Three Phase 20 Hp, (550 ... 600 V AC) Three Phase 25 Hp |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Control Circuit 5.3 in·lb, Main Circuit 20.4, Supply Circuit 5.3 in·lb |
Show all 70 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA896109R7000 |
|---|---|
| Type designation | PSR30-600-70 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500338308 |
| eCl@ss | 27370907 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
Environmental 1
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +70 °C |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006481 |
|---|---|
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 3
| ETIM 7 | EC000640 - Soft starter |
|---|---|
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
Logistics 10
| Package Level 1 Width | 137 mm |
|---|---|
| Package Level 1 Depth / Length | 50 mm |
| Package Level 1 Height | 176 mm |
| Package Level 1 Gross Weight | 0.7 kg |
| Package Level 1 EAN | 7320500338308 |
| Package Level 1 Units | box 1 piece |
| Shipping weight | 0.7 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA896109R7000
No documents are on file for this part yet.
Ask us for the datasheet
Other ratings
All 13 ratings in PSR
ABB PSR series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 1.5 kW | 3.9 A | 1SFA896103R7000 | PSR3-600-70 | In stock | $138.51 | ||
| 3 kW | 6.8 A | 1SFA896104R7000 | PSR6-600-70 | In stock | $142.27 | ||
| 4 kW | 4 A | 1SFA896105R7000 | PSR9-600-70 | In stock | $142.27 | ||
| 5.5 kW | 5.5 A | 1SFA896106R7000 | PSR12-600-70 | In stock | $147.59 | ||
| 7.5 kW | 16 A | 1SFA896107R7000 | PSR16-600-70 | In stock | $177.30 | ||
| 11 kW | 25 A | 1SFA896108R7000 | PSR25-600-70 | In stock | $182.94 | ||
| 15 kW | 30 A | 1SFA896109R7000 This part | PSR30-600-70 | In stock | $222.70 | ||
| 18.5 kW | 37 A | 1SFA896110R7000 | PSR37-600-70 | Critical stock | $316.08 | ||
| 22 kW | 45 A | 1SFA896111R7000 | PSR45-600-70 | In stock | $387.96 | ||
| 30 kW | 60 A | 1SFA896112R7000 | PSR60-600-70 | In stock | $464.31 | ||
| 37 kW | 72 A | 1SFA896113R7000 | PSR72-600-70 | In stock | $511.64 | ||
| 45 kW | 85 A | 1SFA896114R7000 | PSR85-600-70 | In stock | $635.00 | ||
| 55 kW | 105 A | 1SFA896115R7000 | PSR105-600-70 | Low stock | $693.92 |
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- CCC
Quick answers
Questions about the PSR30-600-70
What is the rated current of PSR30-600-70?
The rated current of PSR30-600-70 is 30 A.
Which supply voltage is PSR30-600-70 rated for?
The rated operational voltage of PSR30-600-70 is 208–600 V AC.
What motor power is PSR30-600-70 rated for?
The rated motor power of PSR30-600-70 is 15 kW.
Which control voltage does PSR30-600-70 need?
The control voltage range of PSR30-600-70 is 110–250 V.
What is the HS code of PSR30-600-70 for customs?
The tariff (HS) code on file for PSR30-600-70 is 853710.
What is the EAN of PSR30-600-70?
The EAN (GTIN) of PSR30-600-70 is 7320500338308.
Where does PSR30-600-70 ship from, and how fast?
PSR30-600-70 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
