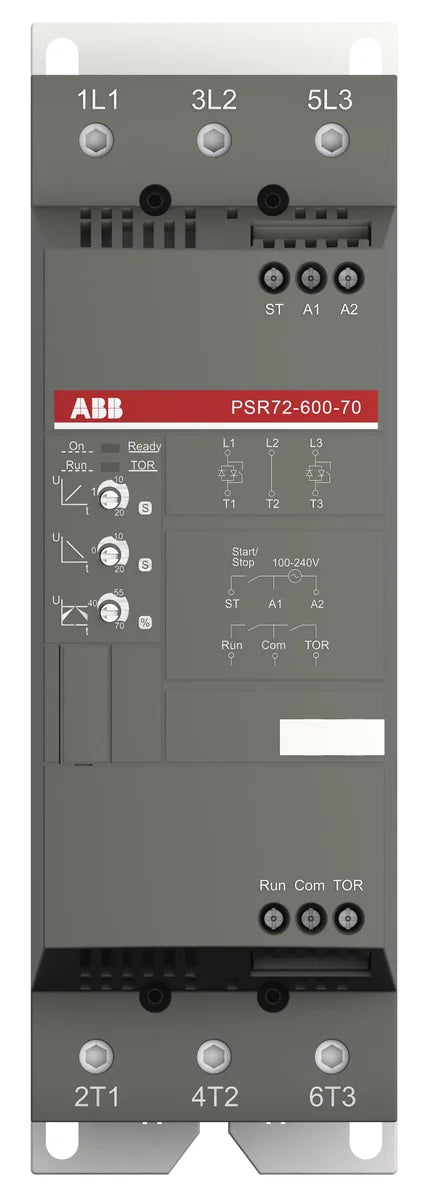

ABB 1SFA896113R7000 PSR72-600-70 72A 3P 208-600V AC 37kW Softstarter
Other ratings in PSR
All 13 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 22 | 45 | 1SFA896111R7000 | In stock | $387.96 |
| 30 | 60 | 1SFA896112R7000 | In stock | $464.31 |
| 37 | 72 | 1SFA896113R7000This part | In stock | $511.64 |
| 45 | 85 | 1SFA896114R7000 | In stock | $635.00 |
| 55 | 105 | 1SFA896115R7000 | Low stock | $693.92 |
Description
About the PSR72-600-70
About the PSR72-600-70
The ABB PSR72-600-70 softstarter (SKU 1SFA896113R7000) is a compact, 3-pole soft starter rated at 72 A for use with motors up to 37 kW, accepting a wide supply voltage range of 208–600 V AC and a control voltage of 110–250 V. Designed for the ABB PSR series, the PSR72-600-70 delivers smooth motor acceleration and deceleration, reducing mechanical stress and inrush current in industrial automation and motor control applications.
Certifications & Standards
- RoHS: Compliant with EU Restriction of Hazardous Substances Directive
- REACH: Compliant with EU REACH regulation on chemical substances
- IEC 60529: Ingress protection classification standard
- IEC 60947-1: Low-voltage switchgear and controlgear — general rules
- CSA: Canadian Standards Association certified for North American markets
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive
- CCC: China Compulsory Certification for the Chinese market
- CE: Meets European Union safety, health, and environmental requirements
Applications & Use Cases
- Soft starting and stopping of AC induction motors up to 37 kW in industrial automation systems
- Pump and fan control to reduce water hammer and mechanical wear on start-up
- Conveyor and compressor drives requiring smooth torque ramp-up
- Control panels and motor control centres (MCC) requiring compact DIN-compatible soft starters
- Applications across a wide supply voltage range (208–600 V AC) including North American and European installations
Specification
Full specification
Dimensions 4
| Product Net Width | 70 mm |
|---|---|
| Product Net Height | 220 mm |
| Product Net Depth / Length | 180 mm |
| Product Net Weight | 2.1 kg |
Technical 33
| Rated Operational Voltage | 208 ... 600 V AC |
|---|---|
| Rated Control Supply Voltage (Us) | 100 ... 240 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz, Main Circuit 50 / 60 Hz |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 22 kW, (400 V) 37 kW, (500 V) 45 kW |
| Rated Operational Current - In-Line Connection (Ie) | 72 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Recommended MS495 57 ... 75 |
| Integrated Electronic Overload | No |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 6s |
| Ramp Time | 0 ... 20 s, 1 ... 10 s |
| Initial Voltage During Start | 40 ... 70 % |
| Step Down Voltage Special Ramp | 100 ... 60 % |
| Current Limit Function | No |
| Switch for Inside Delta Connection | No |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | No |
| Overload Signal Relay | No |
| Signal Indication Completed Start Ramp (LED) | Green |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Ramping Up/Down (LED) | Green |
| Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time | 10 |
| Communication | FiledBusPlug(Optional) |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| Terminal Type | Main Circuit: Bars |
| Connecting Capacity Main Circuit | Rigid 1x 10 ... 95 mm², Rigid 2 x 6 ... 35 mm² |
| Connecting Capacity Control Circuit | 1 x 0.75 ... 2.5 mm², 2 x 0.75 ... 2.5 mm², Rigid 1 x 0.75 ... 2.5 mm², Rigid 2 x 0.75 ... 1.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1 x 0.75 ... 2.5 |
| Tightening Torque | Control Circuit 0.6 N·m, Main Circuit 8 N·m, Supply Circuit 0.6 N·m |
| Product Main Type | PSR72 |
| Function | Soft start with voltage ramp, Soft stop with voltage ramp |
Technical UL/CSA 3
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 20 Hp, (220 ... 240 V AC) Three Phase 25 Hp, (440 ... 480 V AC) Three Phase 50 Hp, (550 ... 600 V AC) Three Phase 60 Hp |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Control Circuit 5.3 in·lb, Main Circuit 70.8, Supply Circuit 5.3 in·lb |
Show all 70 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA896113R7000 |
|---|---|
| Type designation | PSR72-600-70 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500362617 |
| eCl@ss | 27370907 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
Environmental 1
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +70 °C |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006481 |
|---|---|
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 3
| ETIM 7 | EC000640 - Soft starter |
|---|---|
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
Logistics 10
| Package Level 1 Width | 195 mm |
|---|---|
| Package Level 1 Depth / Length | 86 mm |
| Package Level 1 Height | 230 mm |
| Package Level 1 Gross Weight | 2.3 kg |
| Package Level 1 EAN | 7320500362617 |
| Package Level 1 Units | box 1 piece |
| Shipping weight | 2.3 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA896113R7000
No documents are on file for this part yet.
Ask us for the datasheet
Other ratings
All 13 ratings in PSR
ABB PSR series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 1.5 kW | 3.9 A | 1SFA896103R7000 | PSR3-600-70 | In stock | $138.51 | ||
| 3 kW | 6.8 A | 1SFA896104R7000 | PSR6-600-70 | In stock | $142.27 | ||
| 4 kW | 4 A | 1SFA896105R7000 | PSR9-600-70 | In stock | $142.27 | ||
| 5.5 kW | 5.5 A | 1SFA896106R7000 | PSR12-600-70 | In stock | $147.59 | ||
| 7.5 kW | 16 A | 1SFA896107R7000 | PSR16-600-70 | In stock | $177.30 | ||
| 11 kW | 25 A | 1SFA896108R7000 | PSR25-600-70 | In stock | $182.94 | ||
| 15 kW | 30 A | 1SFA896109R7000 | PSR30-600-70 | In stock | $222.70 | ||
| 18.5 kW | 37 A | 1SFA896110R7000 | PSR37-600-70 | Critical stock | $316.08 | ||
| 22 kW | 45 A | 1SFA896111R7000 | PSR45-600-70 | In stock | $387.96 | ||
| 30 kW | 60 A | 1SFA896112R7000 | PSR60-600-70 | In stock | $464.31 | ||
| 37 kW | 72 A | 1SFA896113R7000 This part | PSR72-600-70 | In stock | $511.64 | ||
| 45 kW | 85 A | 1SFA896114R7000 | PSR85-600-70 | In stock | $635.00 | ||
| 55 kW | 105 A | 1SFA896115R7000 | PSR105-600-70 | Low stock | $693.92 |
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- CCC
Quick answers
Questions about the PSR72-600-70
What is the rated current of PSR72-600-70?
The rated current of PSR72-600-70 is 72 A.
Which supply voltage is PSR72-600-70 rated for?
The rated operational voltage of PSR72-600-70 is 208–600 V AC.
What motor power is PSR72-600-70 rated for?
The rated motor power of PSR72-600-70 is 37 kW.
Which control voltage does PSR72-600-70 need?
The control voltage range of PSR72-600-70 is 110–250 V.
What is the HS code of PSR72-600-70 for customs?
The tariff (HS) code on file for PSR72-600-70 is 853710.
What is the EAN of PSR72-600-70?
The EAN (GTIN) of PSR72-600-70 is 7320500362617.
Where does PSR72-600-70 ship from, and how fast?
PSR72-600-70 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
