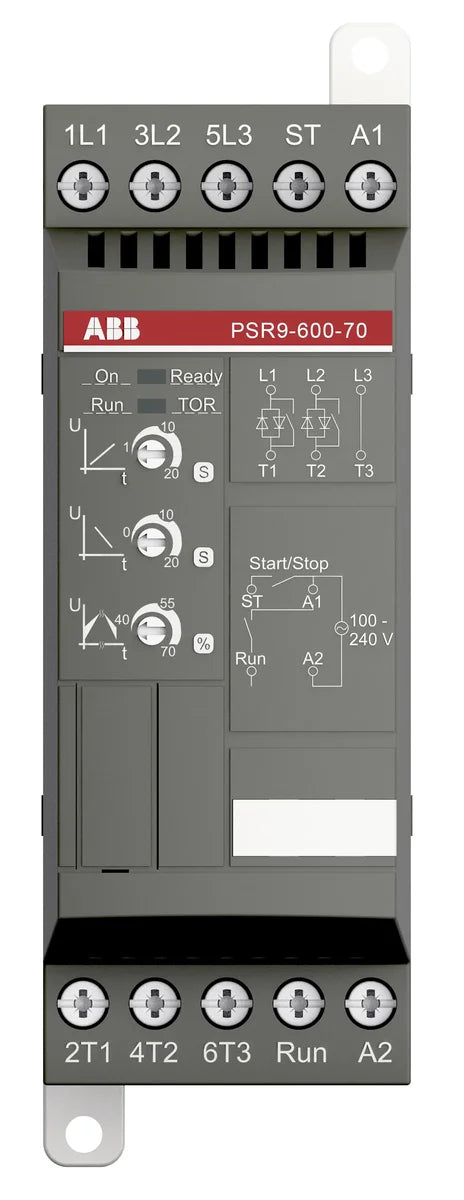

ABB 1SFA896105R7000 PSR9-600-70 9A 208-600V AC 3P 4kW Softstarter

The ABB PSR9-600-70 softstarter (SKU 1SFA896105R7000) is a compact, 3-pole electronic soft starter rated at 9 A and 4 kW, designed to deliver smooth, controlled motor starting across a wide supply voltage range of 208–600 V AC. Part of ABB's proven PSR series, the PSR9-600-70 accepts a control voltage of 110–250 V and is engineered for reliable integration into motor control and automation panels where reduced-voltage starting is required to protect motors and driven machinery.

Technical Specifications

Certifications & Standards

• CE: Conforms to European Union directives for electrical equipment safety and electromagnetic compatibility
• RoHS: Compliant with EU Restriction of Hazardous Substances Directive
• RoHS II: Compliant with updated EU RoHS II (2011/65/EU) requirements
• REACH: Compliant with EU REACH regulation on chemical substances
• WEEE: Registered under EU Waste Electrical and Electronic Equipment Directive
• VDE: Tested and certified by VDE (Verband der Elektrotechnik) to German/European electrical safety standards
• IEC 60947-1: Complies with IEC standard for low-voltage switchgear and controlgear — general rules
• IEC 60529: Ingress protection classification in accordance with IEC 60529
• CSA: Certified by the Canadian Standards Association for use in North American markets
• CCC: China Compulsory Certification for the Chinese market

Applications & Use Cases

The ABB PSR9-600-70 softstarter is ideally suited for applications where controlled motor acceleration is essential to reduce mechanical stress and inrush current. Typical uses include:

• Pump and fan motor starting in HVAC and water treatment systems
• Conveyor and compressor drives in industrial automation and manufacturing
• Control panel integration for motor protection and energy-efficient starting
• OEM machine builds requiring a compact DIN-rail-mountable soft starter
