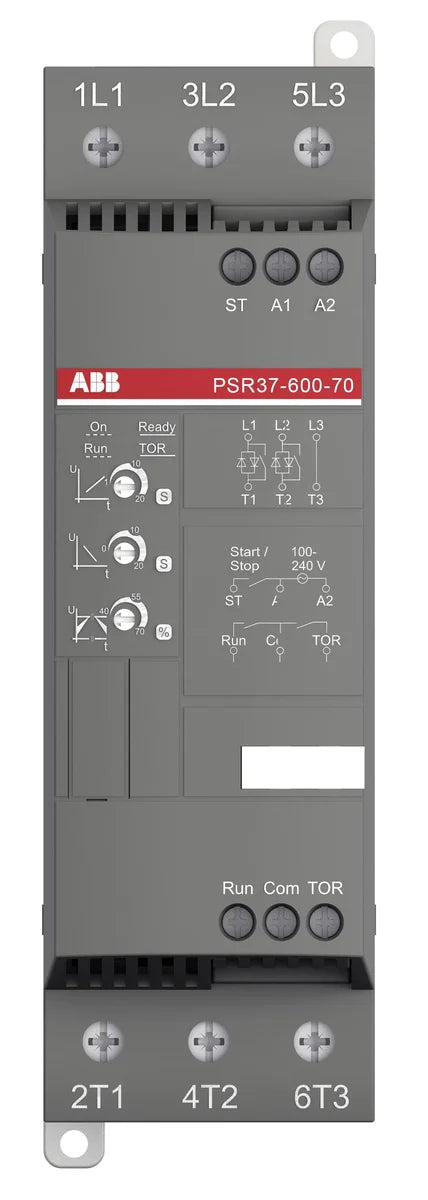

ABB 1SFA896110R7000 PSR37-600-70 37A 208-600V AC 3P 18.5kW Softstarter
Other ratings in PSR
All 13 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 11 | 25 | 1SFA896108R7000 | In stock | $182.94 |
| 15 | 30 | 1SFA896109R7000 | In stock | $222.70 |
| 18.5 | 37 | 1SFA896110R7000This part | Critical stock | $316.08 |
| 22 | 45 | 1SFA896111R7000 | In stock | $387.96 |
| 30 | 60 | 1SFA896112R7000 | In stock | $464.31 |
Description
About the PSR37-600-70
About the PSR37-600-70
The ABB PSR37-600-70 softstarter (SKU 1SFA896110R7000) is a compact, 3-pole solid-state motor starter rated at 37A and 208–600V AC, designed to provide smooth motor acceleration and deceleration for up to 18.5kW loads. Part of ABB's trusted PSR series, the PSR37-600-70 accepts a wide control voltage range of 110–250V and delivers reliable soft-starting performance for industrial automation and motor control applications.
Certifications & Standards
- CE: Complies with European Union safety, health, and environmental protection requirements
- IEC 60947-1: Meets IEC standard for low-voltage switchgear and controlgear — general rules
- CSA: Certified to Canadian Standards Association requirements for the North American market
- CCC: China Compulsory Certificate — approved for the Chinese market
- KCC: Korea Communications Commission certification for the South Korean market
- RoHS: Compliant with EU Restriction of Hazardous Substances Directive
- RoHS II: Compliant with the updated RoHS II Directive 2011/65/EU
- REACh / REACH: Compliant with EU Registration, Evaluation, Authorisation and Restriction of Chemicals regulation
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal
Applications & Use Cases
- Smooth start and stop control of AC induction motors in industrial automation systems
- Pumps, fans, compressors, and conveyor drives requiring reduced starting current
- Control panels and motor control centers (MCC) where space-saving DIN-rail installation is required
- Applications requiring wide supply voltage compatibility across global installations (208–600V AC)
- OEM machinery builders seeking CE, CSA, CCC, and IEC-compliant motor starters for global export
Specification
Full specification
Dimensions 4
| Product Net Width | 54 mm |
|---|---|
| Product Net Height | 187 mm |
| Product Net Depth / Length | 153 mm |
| Product Net Weight | 1 kg |
Technical 33
| Rated Operational Voltage | 208 ... 600 V AC |
|---|---|
| Rated Control Supply Voltage (Us) | 100 ... 240 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz, Main Circuit 50 / 60 Hz |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 7.5 kW, (400 V) 18.5 kW, (500 V) 22 kW |
| Rated Operational Current - In-Line Connection (Ie) | 37 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Recommended MS450 28 ... 40 |
| Integrated Electronic Overload | No |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 6s |
| Ramp Time | 0 ... 20 s, 1 ... 10 s |
| Initial Voltage During Start | 40 ... 70 % |
| Step Down Voltage Special Ramp | 100 ... 60 % |
| Current Limit Function | No |
| Switch for Inside Delta Connection | No |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | No |
| Overload Signal Relay | No |
| Signal Indication Completed Start Ramp (LED) | Green |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Ramping Up/Down (LED) | Green |
| Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time | 10 |
| Communication | FiledBusPlug(Optional) |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit | Rigid 1x 6 ... 35 mm², Rigid 2 x 6 ... 16 mm² |
| Connecting Capacity Control Circuit | 1 x 0.75 ... 2.5 mm², 2 x 0.75 ... 2.5 mm², Rigid 1 x 0.75 ... 2.5 mm², Rigid 2 x 0.75 ... 1.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1 x 0.75 ... 2.5 |
| Tightening Torque | Control Circuit 0.6 N·m, Main Circuit 4 N·m, Supply Circuit 0.6 N·m |
| Product Main Type | PSR37 |
| Function | Soft start with voltage ramp, Soft stop with voltage ramp |
Technical UL/CSA 3
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 10 Hp, (220 ... 240 V AC) Three Phase 10 Hp, (440 ... 480 V AC) Three Phase 25 Hp, (550 ... 600 V AC) Three Phase 30 Hp |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Control Circuit 5.3 in·lb, Main Circuit 35.4, Supply Circuit 5.3 in·lb |
Show all 70 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA896110R7000 |
|---|---|
| Type designation | PSR37-600-70 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500338322 |
| eCl@ss | 27370907 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
Environmental 1
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +70 °C |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006481 |
|---|---|
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 3
| ETIM 7 | EC000640 - Soft starter |
|---|---|
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
Logistics 10
| Package Level 1 Width | 163 mm |
|---|---|
| Package Level 1 Depth / Length | 56 mm |
| Package Level 1 Height | 217 mm |
| Package Level 1 Gross Weight | 1.1 kg |
| Package Level 1 EAN | 7320500338322 |
| Package Level 1 Units | box 1 piece |
| Shipping weight | 1.1 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | Critical stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA896110R7000
No documents are on file for this part yet.
Ask us for the datasheet
Other ratings
All 13 ratings in PSR
ABB PSR series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 1.5 kW | 3.9 A | 1SFA896103R7000 | PSR3-600-70 | In stock | $138.51 | ||
| 3 kW | 6.8 A | 1SFA896104R7000 | PSR6-600-70 | In stock | $142.27 | ||
| 4 kW | 4 A | 1SFA896105R7000 | PSR9-600-70 | In stock | $142.27 | ||
| 5.5 kW | 5.5 A | 1SFA896106R7000 | PSR12-600-70 | In stock | $147.59 | ||
| 7.5 kW | 16 A | 1SFA896107R7000 | PSR16-600-70 | In stock | $177.30 | ||
| 11 kW | 25 A | 1SFA896108R7000 | PSR25-600-70 | In stock | $182.94 | ||
| 15 kW | 30 A | 1SFA896109R7000 | PSR30-600-70 | In stock | $222.70 | ||
| 18.5 kW | 37 A | 1SFA896110R7000 This part | PSR37-600-70 | Critical stock | $316.08 | ||
| 22 kW | 45 A | 1SFA896111R7000 | PSR45-600-70 | In stock | $387.96 | ||
| 30 kW | 60 A | 1SFA896112R7000 | PSR60-600-70 | In stock | $464.31 | ||
| 37 kW | 72 A | 1SFA896113R7000 | PSR72-600-70 | In stock | $511.64 | ||
| 45 kW | 85 A | 1SFA896114R7000 | PSR85-600-70 | In stock | $635.00 | ||
| 55 kW | 105 A | 1SFA896115R7000 | PSR105-600-70 | Low stock | $693.92 |
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- CCC
Quick answers
Questions about the PSR37-600-70
What is the rated current of PSR37-600-70?
The rated current of PSR37-600-70 is 37 A.
Which supply voltage is PSR37-600-70 rated for?
The rated operational voltage of PSR37-600-70 is 208–600 V AC.
What motor power is PSR37-600-70 rated for?
The rated motor power of PSR37-600-70 is 18.5 kW.
Which control voltage does PSR37-600-70 need?
The control voltage range of PSR37-600-70 is 110–250 V.
What is the HS code of PSR37-600-70 for customs?
The tariff (HS) code on file for PSR37-600-70 is 853710.
What is the EAN of PSR37-600-70?
The EAN (GTIN) of PSR37-600-70 is 7320500338322.
Where does PSR37-600-70 ship from, and how fast?
PSR37-600-70 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
