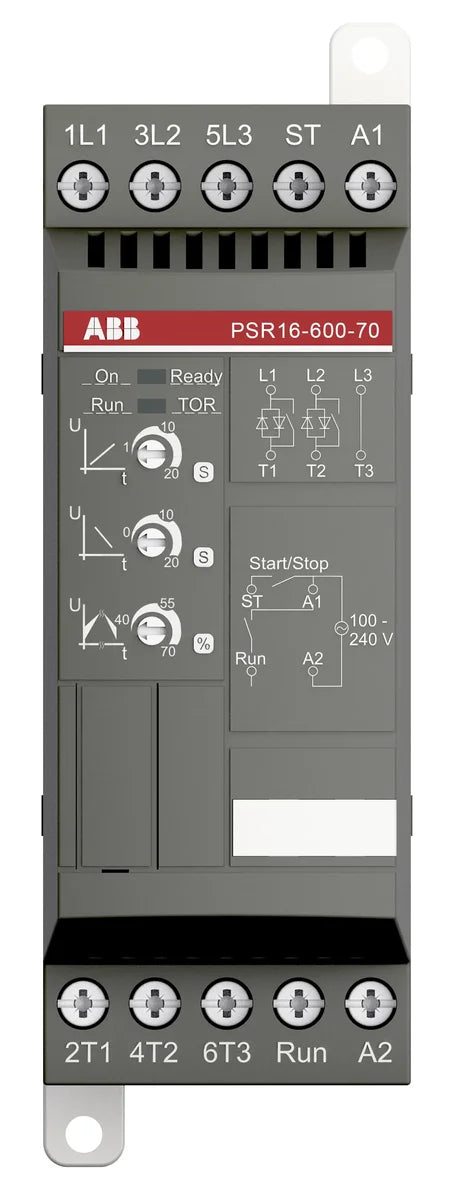

ABB 1SFA896107R7000 PSR16-600-70 16A 3P 208-600V AC 7.5kW Softstarter
Other ratings in PSR
All 13 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 4 | 4 | 1SFA896105R7000 | In stock | $142.27 |
| 5.5 | 5.5 | 1SFA896106R7000 | In stock | $147.59 |
| 7.5 | 16 | 1SFA896107R7000This part | In stock | $177.30 |
| 11 | 25 | 1SFA896108R7000 | In stock | $182.94 |
| 15 | 30 | 1SFA896109R7000 | In stock | $222.70 |
Description
About the PSR16-600-70
About the PSR16-600-70
The ABB PSR16-600-70 softstarter (SKU 1SFA896107R7000) is a compact 3-pole, 16A electronic motor soft-starting device designed for smooth acceleration and deceleration of three-phase AC induction motors rated up to 7.5 kW. Operating across a wide supply voltage range of 208–600 V AC with a control voltage of 110–250 V, the PSR16-600-70 reduces mechanical stress, inrush current, and wear on driven machinery during start and stop cycles, making it ideal for conveyors, pumps, fans, and compressors in industrial automation environments.
Certifications & Standards
- CE: Complies with EU low-voltage and EMC directives for European market placement
- IEC 60947-1: Meets the International Electrotechnical Commission standard for low-voltage switchgear and controlgear
- VDE: Certified by Germany's Association for Electrical, Electronic & Information Technologies
- CSA: Canadian Standards Association certified for North American safety requirements
- CCC: China Compulsory Certification for the Chinese market
- RoHS: Restriction of Hazardous Substances compliant — free from restricted materials including lead, mercury, and cadmium
- REACH: Compliant with EU REACH regulation on chemicals used in the product
- WEEE: Waste Electrical and Electronic Equipment directive compliant for responsible end-of-life recycling
Applications & Use Cases
The ABB PSR16-600-70 softstarter is well suited for a broad range of industrial and commercial motor-driven applications where controlled starting and stopping is essential. Typical deployments include centrifugal pumps, HVAC fans, belt conveyors, compressors, and agitators. By limiting peak inrush current during start-up, the PSR16-600-70 helps reduce demand charges, protects mechanical couplings, and extends the service life of motors and driven equipment. Its wide supply voltage range (208–600 V AC) and compact 45 mm DIN-rail footprint make it straightforward to integrate into existing control panels across global installations.
Specification
Full specification
Dimensions 4
| Product Net Width | 45 mm |
|---|---|
| Product Net Height | 140 mm |
| Product Net Depth / Length | 114 mm |
| Product Net Weight | 0.4 kg |
Technical 33
| Rated Operational Voltage | 208 ... 600 V AC |
|---|---|
| Rated Control Supply Voltage (Us) | 100 ... 240 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz, Main Circuit 50 / 60 Hz |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 4 kW, (400 V) 7.5 kW, (500 V) 7.5 kW |
| Rated Operational Current - In-Line Connection (Ie) | 16 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Recommended MS132 10.00 ... 16.00 |
| Integrated Electronic Overload | No |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 6s |
| Ramp Time | 0 ... 20 s, 1 ... 10 s |
| Initial Voltage During Start | 40 ... 70 % |
| Step Down Voltage Special Ramp | 100 ... 60 % |
| Current Limit Function | No |
| Switch for Inside Delta Connection | No |
| Run Signal Relay | Yes |
| By-pass Signal Relay | No |
| Fault Signal Relay | No |
| Overload Signal Relay | No |
| Signal Indication Completed Start Ramp (LED) | Green |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Ramping Up/Down (LED) | Green |
| Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time | 10 |
| Communication | FiledBusPlug(Optional) |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit | Rigid 1/2 x 0.75 ... 2.5 mm² |
| Connecting Capacity Control Circuit | 1 x 0.75 ... 2.5 mm², 2 x 0.75 ... 2.5 mm², Rigid 1/2 x 0.75 ... 2.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1/2 x 0.75 ... 2.5 |
| Tightening Torque | Control Circuit 1 N·m, Main Circuit 1 N·m, Supply Circuit 1 N·m |
| Product Main Type | PSR16 |
| Function | Soft start with voltage ramp, Soft stop with voltage ramp |
Technical UL/CSA 3
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 3 Hp, (220 ... 240 V AC) Three Phase 5 Hp, (440 ... 480 V AC) Three Phase 10 Hp, (550 ... 600 V AC) Three Phase 10 Hp |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Control Circuit 8.9 in·lb, Main Circuit 8.9, Supply Circuit 8.9 in·lb |
Show all 70 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA896107R7000 |
|---|---|
| Type designation | PSR16-600-70 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500338261 |
| eCl@ss | 27370907 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
Environmental 1
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +70 °C |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006481 |
|---|---|
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 3
| ETIM 7 | EC000640 - Soft starter |
|---|---|
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
Logistics 10
| Package Level 1 Width | 121 mm |
|---|---|
| Package Level 1 Depth / Length | 50 mm |
| Package Level 1 Height | 156 mm |
| Package Level 1 Gross Weight | 0.5 kg |
| Package Level 1 EAN | 7320500338261 |
| Package Level 1 Units | box 1 piece |
| Shipping weight | 0.5 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA896107R7000
No documents are on file for this part yet.
Ask us for the datasheet
Other ratings
All 13 ratings in PSR
ABB PSR series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 1.5 kW | 3.9 A | 1SFA896103R7000 | PSR3-600-70 | In stock | $138.51 | ||
| 3 kW | 6.8 A | 1SFA896104R7000 | PSR6-600-70 | In stock | $142.27 | ||
| 4 kW | 4 A | 1SFA896105R7000 | PSR9-600-70 | In stock | $142.27 | ||
| 5.5 kW | 5.5 A | 1SFA896106R7000 | PSR12-600-70 | In stock | $147.59 | ||
| 7.5 kW | 16 A | 1SFA896107R7000 This part | PSR16-600-70 | In stock | $177.30 | ||
| 11 kW | 25 A | 1SFA896108R7000 | PSR25-600-70 | In stock | $182.94 | ||
| 15 kW | 30 A | 1SFA896109R7000 | PSR30-600-70 | In stock | $222.70 | ||
| 18.5 kW | 37 A | 1SFA896110R7000 | PSR37-600-70 | Critical stock | $316.08 | ||
| 22 kW | 45 A | 1SFA896111R7000 | PSR45-600-70 | In stock | $387.96 | ||
| 30 kW | 60 A | 1SFA896112R7000 | PSR60-600-70 | In stock | $464.31 | ||
| 37 kW | 72 A | 1SFA896113R7000 | PSR72-600-70 | In stock | $511.64 | ||
| 45 kW | 85 A | 1SFA896114R7000 | PSR85-600-70 | In stock | $635.00 | ||
| 55 kW | 105 A | 1SFA896115R7000 | PSR105-600-70 | Low stock | $693.92 |
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- CCC
- VDE
Quick answers
Questions about the PSR16-600-70
What is the rated current of PSR16-600-70?
The rated current of PSR16-600-70 is 16 A.
Which supply voltage is PSR16-600-70 rated for?
The rated operational voltage of PSR16-600-70 is 208–600 V AC.
What motor power is PSR16-600-70 rated for?
The rated motor power of PSR16-600-70 is 7.5 kW.
Which control voltage does PSR16-600-70 need?
The control voltage range of PSR16-600-70 is 110–250 V.
What is the HS code of PSR16-600-70 for customs?
The tariff (HS) code on file for PSR16-600-70 is 853710.
What is the EAN of PSR16-600-70?
The EAN (GTIN) of PSR16-600-70 is 7320500338261.
Where does PSR16-600-70 ship from, and how fast?
PSR16-600-70 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
