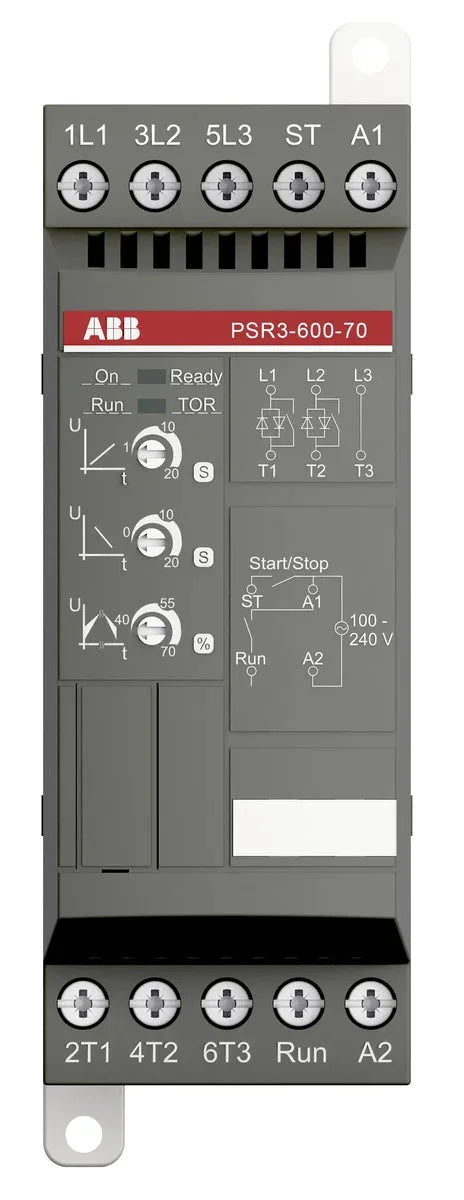

ABB 1SFA896103R7000 PSR3-600-70 3.9A 208-600V AC 3P 1.5kW Softstarter
Other ratings in PSR
All 13 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 1.5 | 3.9 | 1SFA896103R7000This part | In stock | $138.51 |
| 3 | 6.8 | 1SFA896104R7000 | In stock | $142.27 |
| 4 | 4 | 1SFA896105R7000 | In stock | $142.27 |
| 5.5 | 5.5 | 1SFA896106R7000 | In stock | $147.59 |
| 7.5 | 16 | 1SFA896107R7000 | In stock | $177.30 |
Description
About the PSR3-600-70
About the PSR3-600-70
The ABB PSR3-600-70 softstarter (SKU: 1SFA896103R7000) is a compact 3-pole soft starter rated at 3.9 A for use on 208–600 V AC supply networks, delivering smooth motor starting and stopping for 1.5 kW motors. Designed for industrial automation and control panel integration, the PSR3-600-70 accepts a wide control voltage range of 110–250 V and fits easily into tight enclosures with its slim 45 mm width profile.
Certifications & Standards
- CE: Complies with applicable European Union directives for electrical equipment
- IEC 60947-1: General rules for low-voltage switchgear and controlgear
- IEC 60529: Degrees of protection provided by enclosures (IP rating standard)
- CSA: Certified to Canadian Standards Association requirements for North American markets
- CCC: China Compulsory Certification for the Chinese market
- RoHS: Compliant with EU Restriction of Hazardous Substances directive
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment directive
Applications & Use Cases
- Soft starting of small three-phase induction motors in conveyors, pumps, and fans
- Control panel integration where DIN-rail space is limited
- Industrial automation systems requiring smooth motor acceleration and deceleration
- HVAC and building services motor control applications
- OEM machine builders requiring a compact, globally certified softstarter
Specification
Full specification
Dimensions 4
| Product Net Width | 45 mm |
|---|---|
| Product Net Height | 140 mm |
| Product Net Depth / Length | 114 mm |
| Product Net Weight | 0.4 kg |
Technical 33
| Rated Operational Voltage | 208 ... 600 V AC |
|---|---|
| Rated Control Supply Voltage (Us) | 100 ... 240 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz, Main Circuit 50 / 60 Hz |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 0.75 kW, (400 V) 1.5 kW, (500 V) 2.2 kW |
| Rated Operational Current - In-Line Connection (Ie) | 3.9 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Recommended MS116 0.63 ... 4.00 |
| Integrated Electronic Overload | No |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 6s |
| Ramp Time | 0 ... 20 s, 1 ... 10 s |
| Initial Voltage During Start | 40 ... 70 % |
| Step Down Voltage Special Ramp | 100 ... 60 % |
| Current Limit Function | No |
| Switch for Inside Delta Connection | No |
| Run Signal Relay | Yes |
| By-pass Signal Relay | No |
| Fault Signal Relay | No |
| Overload Signal Relay | No |
| Signal Indication Completed Start Ramp (LED) | Green |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Ramping Up/Down (LED) | Green |
| Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time | 10 |
| Communication | FiledBusPlug(Optional) |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit | Rigid 1/2 x 0.75 ... 2.5 mm² |
| Connecting Capacity Control Circuit | 1 x 0.75 ... 2.5 mm², 2 x 0.75 ... 2.5 mm², Rigid 1/2 x 0.75 ... 2.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1/2 x 0.75 ... 2.5 |
| Tightening Torque | Control Circuit 1 N·m, Main Circuit 1 N·m, Supply Circuit 1 N·m |
| Product Main Type | PSR3 |
| Function | Soft start with voltage ramp, Soft stop with voltage ramp |
Technical UL/CSA 3
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 0.5 Hp, (220 ... 240 V AC) Three Phase 0.75 Hp, (440 ... 480 V AC) Three Phase 2 Hp, (550 ... 600 V AC) Three Phase 2 Hp |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Control Circuit 8.9 in·lb, Main Circuit 8.9, Supply Circuit 8.9 in·lb |
Show all 70 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA896103R7000 |
|---|---|
| Type designation | PSR3-600-70 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500338186 |
| eCl@ss | 27370907 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
Environmental 1
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +70 °C |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006481 |
|---|---|
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 3
| ETIM 7 | EC000640 - Soft starter |
|---|---|
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
Logistics 10
| Package Level 1 Width | 121 mm |
|---|---|
| Package Level 1 Depth / Length | 50 mm |
| Package Level 1 Height | 156 mm |
| Package Level 1 Gross Weight | 0.5 kg |
| Package Level 1 EAN | 7320500338186 |
| Package Level 1 Units | box 1 piece |
| Shipping weight | 0.5 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA896103R7000
No documents are on file for this part yet.
Ask us for the datasheet
Other ratings
All 13 ratings in PSR
ABB PSR series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 1.5 kW | 3.9 A | 1SFA896103R7000 This part | PSR3-600-70 | In stock | $138.51 | ||
| 3 kW | 6.8 A | 1SFA896104R7000 | PSR6-600-70 | In stock | $142.27 | ||
| 4 kW | 4 A | 1SFA896105R7000 | PSR9-600-70 | In stock | $142.27 | ||
| 5.5 kW | 5.5 A | 1SFA896106R7000 | PSR12-600-70 | In stock | $147.59 | ||
| 7.5 kW | 16 A | 1SFA896107R7000 | PSR16-600-70 | In stock | $177.30 | ||
| 11 kW | 25 A | 1SFA896108R7000 | PSR25-600-70 | In stock | $182.94 | ||
| 15 kW | 30 A | 1SFA896109R7000 | PSR30-600-70 | In stock | $222.70 | ||
| 18.5 kW | 37 A | 1SFA896110R7000 | PSR37-600-70 | Critical stock | $316.08 | ||
| 22 kW | 45 A | 1SFA896111R7000 | PSR45-600-70 | In stock | $387.96 | ||
| 30 kW | 60 A | 1SFA896112R7000 | PSR60-600-70 | In stock | $464.31 | ||
| 37 kW | 72 A | 1SFA896113R7000 | PSR72-600-70 | In stock | $511.64 | ||
| 45 kW | 85 A | 1SFA896114R7000 | PSR85-600-70 | In stock | $635.00 | ||
| 55 kW | 105 A | 1SFA896115R7000 | PSR105-600-70 | Low stock | $693.92 |
Certifications
Certifications and standards
- CE
- CSA
- RoHS
Quick answers
Questions about the PSR3-600-70
What is the rated current of PSR3-600-70?
The rated current of PSR3-600-70 is 3.9 A.
Which supply voltage is PSR3-600-70 rated for?
The rated operational voltage of PSR3-600-70 is 208–600 V AC.
What motor power is PSR3-600-70 rated for?
The rated motor power of PSR3-600-70 is 1.5 kW.
Which control voltage does PSR3-600-70 need?
The control voltage range of PSR3-600-70 is 110–250 V.
What is the HS code of PSR3-600-70 for customs?
The tariff (HS) code on file for PSR3-600-70 is 853710.
What is the EAN of PSR3-600-70?
The EAN (GTIN) of PSR3-600-70 is 7320500338186.
Where does PSR3-600-70 ship from, and how fast?
PSR3-600-70 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
