- Part number
- 1SFA898117R7000
- Model no
- PSTX570-600-70
In stock · 14
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- CE
- CSA
- RoHS
- CCC

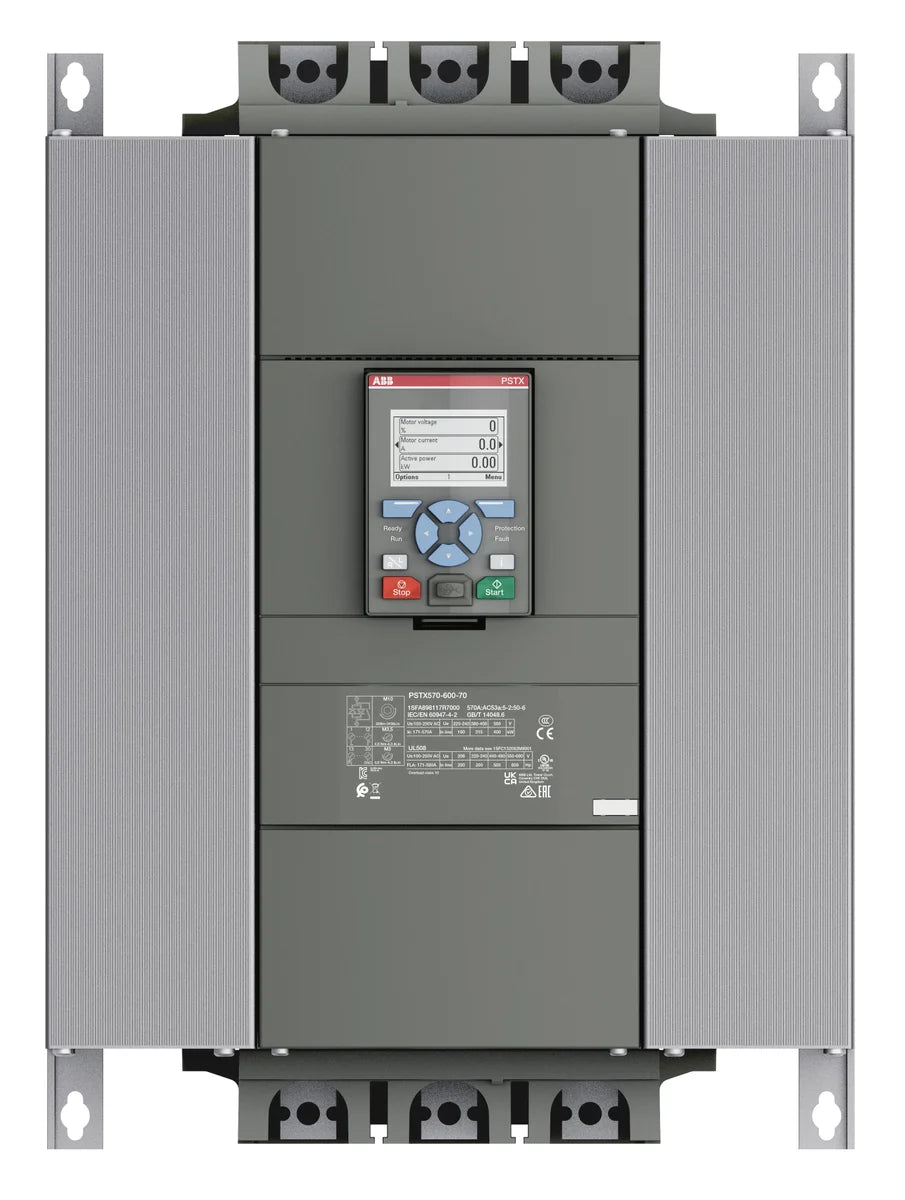

ABB 1SFA898117R7000 PSTX570-600-70 570A 208-600V AC 3P 315kW Soft Starter
Other ratings in PSTX
All 19 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 200 | 370 | 1SFA898115R7000 | Low stock | $4,550.92 |
| 250 | 470 | 1SFA898116R7000 | In stock | $5,590.61 |
| 315 | 570 | 1SFA898117R7000This part | In stock | $6,799.90 |
| 400 | 720 | 1SFA898118R7000 | Low stock | $8,275.22 |
| 450 | 840 | 1SFA898119R7000 | Low stock | $9,095.89 |
Description
About the PSTX570-600-70
Alternatives
Comparable from other brands
About the PSTX570-600-70
Comparable from other brands
The ABB PSTX570-600-70 soft starter (SKU 1SFA898117R7000) is a 570 A, 315 kW, three-phase electronic soft starter designed for controlled motor starting and stopping across a supply voltage range of 208–600 V AC. Part of ABB's PSTX series, the PSTX570-600-70 delivers advanced torque control, integrated motor protection, and a compact footprint suitable for demanding industrial automation and motor control centre (MCC) applications.
Certifications & Standards
- IEC 60947-1: Compliant with the international standard for low-voltage switchgear and controlgear — general rules
- EN 60529: Ingress protection classification per European standard
- CSA: Canadian Standards Association certified for the North American market
- REACH: Compliant with EU REACH regulation on chemical substances
- RoHS: Restriction of Hazardous Substances compliant — free from restricted materials
- WEEE: Registered under the Waste Electrical and Electronic Equipment directive for responsible end-of-life recycling
- CCC: China Compulsory Certification mark — approved for the Chinese market
- CE: Meets all applicable EU directives; CE marked for European Economic Area compliance
Applications & Use Cases
- Heavy-duty pump and compressor starting in water treatment and HVAC systems
- Conveyor and crusher motor control in mining and bulk material handling
- Fan and blower applications requiring smooth ramp-up and ramp-down
- Motor control centres (MCC) and main distribution switchboards
- Oil & gas processing plant motor control where reduced in-rush current is critical
- Industrial automation lines with large three-phase induction motors up to 315 kW
Alternatives
Comparable from other brands
Confirm with the datasheet before substitution.
Specification
Full specification
Dimensions 4
| Product Net Width | 361 mm |
|---|---|
| Product Net Height | 493 mm |
| Product Net Depth / Length | 282 mm |
| Product Net Weight | 27 kg |
Technical 34
| Rated Operational Voltage | 208 ... 600 V AC |
|---|---|
| Rated Control Supply Voltage (Us) | 100 ... 250 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz, Main Circuit 50 / 60 Hz |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 160 kW, (400 V) 315 kW, (500 V) 400 kW |
| Rated Operational Current - In-Line Connection (Ie) | 570 A |
| Rated Operational Power - Inside Delta Connection | at 230 V 295 kW, at 400 V 540 kW, at 500 V 700 kW |
| Rated Operational Current - Inside Delta Connection | 987 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Built-in electronic overload protection |
| Integrated Electronic Overload | Yes |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 10s |
| Ramp Time | 1 ... 120 s |
| Initial Voltage During Start | 10 ... 99 % |
| Step Down Voltage Special Ramp | 100 ... 10 % |
| Switch for Inside Delta Connection | Yes |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | Yes |
| Overload Signal Relay | Yes |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Protection (LED) | Yellow |
| Signal Indication Fault (LED) | Red |
| Communication | Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Terminal Type | Main Circuit: Bars |
| Connecting Capacity Control Circuit | Rigid 1 x 2.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1 x 2.5 |
| Tightening Torque | Main Circuit 35 N·m |
| Product Main Type | PSTX570 |
| Function | Auto phase sequence detection, Automatic restart, Current limit, Current limit ramp, Dual current limit, Dynamic brake, Electricity metering, Electronic overload Time-to-cool, Emergency mode, Event log, Full voltage start, Jog with slow speed, forward and reverse, Keypad password, Kick start, Limp mode with two-phase motor control if one set of thyristors is shorted, Motor heating, Pre-start function, Pump cleaning, Real time clock, Sequence start, Soft start with torque control, Soft start with voltage ramp, Soft stop with torque control, Soft stop with voltage ramp, Stand still brake, Start reverse (external contactors), Thyristor runtime measurement, Torque limit, Voltage sags detection |
| Protection Function | Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection |
| Warning Details | Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning |
Technical UL/CSA 3
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 200 Hp, (220 ... 240 V AC) Three Phase 200 Hp, (440 ... 480 V AC) Three Phase 500 Hp, (550 ... 600 V AC) Three Phase 600 Hp |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Main Circuit 309.8 |
Show all 73 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA898117R7000 |
|---|---|
| Type designation | PSTX570-600-70 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500508992 |
| eCl@ss | 27370907 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
Environmental 1
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +70 °C |
|---|
Material Compliance 8
| REACH Declaration | 2CMT2022-006481 |
|---|---|
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 48023874-53b8-4418-b0f3-63af07413736 China |
| Simplified SCIP | 1917f97d-f1ed-456f-aa03-7ab79edb4975 Portugal, 19794ee2-c8e1-42c3-a583-0acfdcae4416 Romania, 2729fd31-b7ae-4fc8-a494-747eba47fad7 Finland, 2ed8f5d0-3bb1-4890-b125-b8fbdb5d7474 Croatia, 540cf4fc-ab6e-43ed-955d-a108ce8e4cce Hungary, 55bc0ed0-7d7f-42cc-b7e0-3d55214d085e Sweden, 569bc885-760a-438a-8b59-3e77f0983ff0 Belgium, 66030ad7-9733-4916-9b47-c35a2c9a197f Spain, 6a70df08-c31e-4ffe-99ca-20deefa8d775 Germany, 73330442-3f93-4475-a27d-10534803d959 Greece, 931d45d1-c71f-46f0-87ef-207a90e175ce Norway, 93df83ea-acbd-4e8f-a2e1-80fe9e3ca6d5 Estonia, a36f16f2-28b8-410a-9772-81aec31b256d Czechia, aa7e7355-260a-43c6-8a98-954713dff976 France, b4344cf0-f2ba-4883-bd14-2ba8c2f8a222 Bulgaria, d6bf3934-771a-4e33-97bf-18a7473fd2ac Netherlands, eb0a37c6-5f71-417b-b808-c3446683f55f Poland, efd180ba-90a9-4471-ab76-71b2d7f32733 Denmark |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 3
| ETIM 7 | EC000640 - Soft starter |
|---|---|
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
Logistics 10
| Package Level 1 Width | 470 mm |
|---|---|
| Package Level 1 Depth / Length | 381 mm |
| Package Level 1 Height | 650 mm |
| Package Level 1 Gross Weight | 31 kg |
| Package Level 1 EAN | 7320500508992 |
| Package Level 1 Units | box 1 piece |
| Shipping weight | 31.0 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA898117R7000 1
-
Datasheet
SeriesDownload PDF: Data Sheet, Technical Information 1SFC132012C0201
Data Sheet, Technical Information 1SFC132012C0201
Other ratings
All 19 ratings in PSTX
ABB PSTX series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 15 kW | 30 A | 1SFA898103R7000 | PSTX30-600-70 | In stock | $817.71 | ||
| 18.5 kW | 37 A | 1SFA898104R7000 | PSTX37-600-70 | In stock | $903.41 | ||
| 22 kW | 45 A | 1SFA898105R7000 | PSTX45-600-70 | In stock | $955.18 | ||
| 30 kW | 60 A | 1SFA898106R7000 | PSTX60-600-70 | Low stock | $1,096.23 | ||
| 37 kW | 72 A | 1SFA898107R7000 | PSTX72-600-70 | In stock | $1,143.84 | ||
| 45 kW | 85 A | 1SFA898108R7000 | PSTX85-600-70 | In stock | $1,399.73 | ||
| 55 kW | 105 A | 1SFA898109R7000 | PSTX105-600-70 | In stock | $1,634.22 | ||
| 75 kW | 142 A | 1SFA898110R7000 | PSTX142-600-70 | In stock | $2,027.00 | ||
| 90 kW | 170 A | 1SFA898111R7000 | PSTX170-600-70 | In stock | $2,478.70 | ||
| 110 kW | 210 A | 1SFA898112R7000 | PSTX210-600-70 | In stock | $2,768.52 | ||
| 132 kW | 250 A | 1SFA898113R7000 | PSTX250-600-70 | In stock | $3,004.19 | ||
| 160 kW | 300 A | 1SFA898114R7000 | PSTX300-600-70 | In stock | $3,739.17 | ||
| 200 kW | 370 A | 1SFA898115R7000 | PSTX370-600-70 | Low stock | $4,550.92 | ||
| 250 kW | 470 A | 1SFA898116R7000 | PSTX470-600-70 | In stock | $5,590.61 | ||
| 315 kW | 570 A | 1SFA898117R7000 This part | PSTX570-600-70 | In stock | $6,799.90 | ||
| 400 kW | 720 A | 1SFA898118R7000 | PSTX720-600-70 | Low stock | $8,275.22 | ||
| 450 kW | 840 A | 1SFA898119R7000 | PSTX840-600-70 | Low stock | $9,095.89 | ||
| 560 kW | 1050 A | 1SFA898120R7000 | PSTX1050-600-70 | Low stock | $10,765.22 | ||
| 710 kW | 1250 A | 1SFA898121R7000 | PSTX1250-600-70 | Low stock | $12,460.14 |
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- CCC
Quick answers
Questions about the PSTX570-600-70
What is the rated current of PSTX570-600-70?
The rated current of PSTX570-600-70 is 570 A.
Which supply voltage is PSTX570-600-70 rated for?
The rated operational voltage of PSTX570-600-70 is 208–600 V AC.
What motor power is PSTX570-600-70 rated for?
The rated motor power of PSTX570-600-70 is 315 kW.
Which control voltage does PSTX570-600-70 need?
The control voltage range of PSTX570-600-70 is 100–250 V.
What is the HS code of PSTX570-600-70 for customs?
The tariff (HS) code on file for PSTX570-600-70 is 853710.
What is the EAN of PSTX570-600-70?
The EAN (GTIN) of PSTX570-600-70 is 7320500508992.
Where does PSTX570-600-70 ship from, and how fast?
PSTX570-600-70 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
