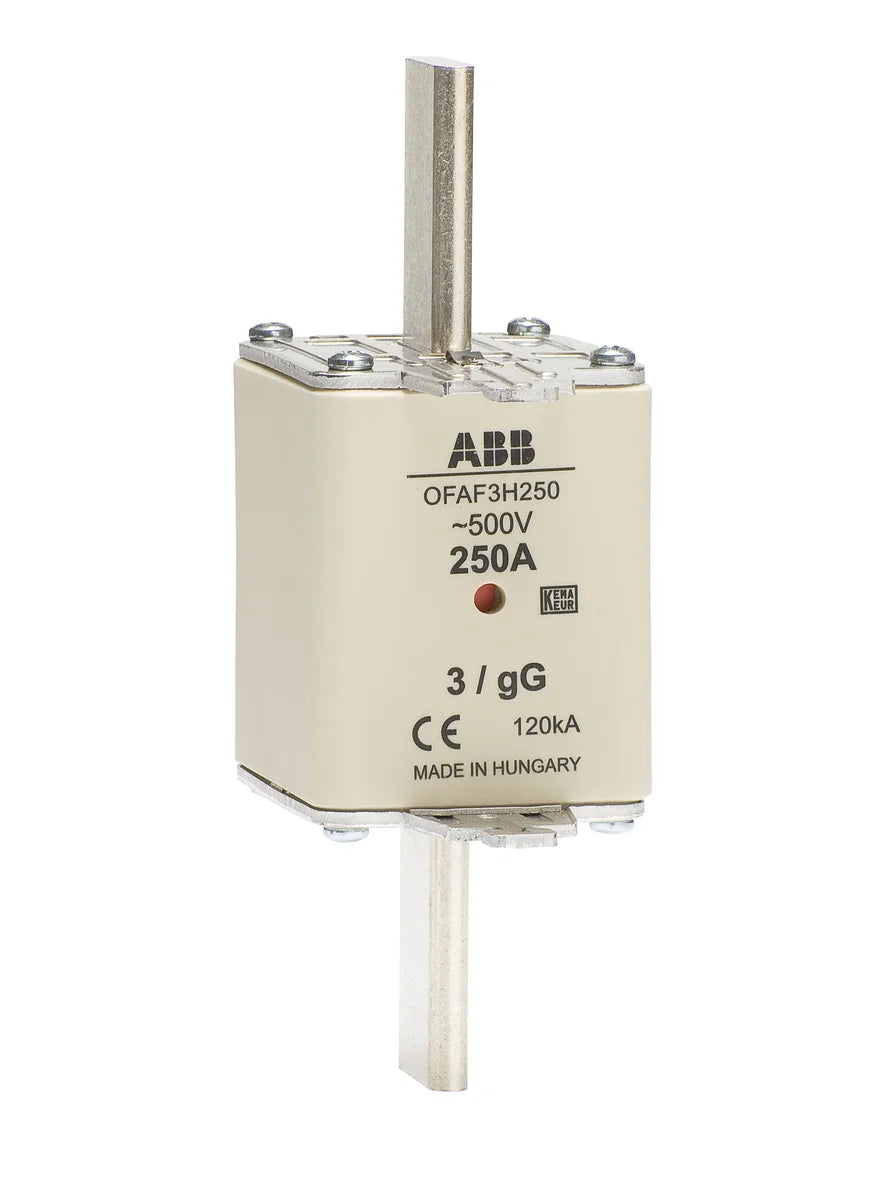

ABB 1SCA022627R7240 OFAF3H800 800A 500VAC/250VDC 120kA HRC Fuse Link
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 355 | 1SCA022627R6190 | In stock | $12.40 | |
| 400 | 1SCA022627R6270 | In stock | $12.40 | |
| 425 | 1SCA022627R6860 | Low stock | $26.17 | |
| 630 | 1SCA022627R7160 | Low stock | $26.17 | |
| 800 | 1SCA022627R7240This part | In stock | $54.76 |
Description
About the OFAF3H800
About the OFAF3H800
The ABB OFAF3H800 HRC Fuse Link (SKU: 1SCA022627R7240) is a high-rupturing-capacity fuse designed for robust overcurrent and short-circuit protection in industrial power distribution systems. Rated at 800A with a working voltage of 500V AC or 250V DC, the OFAF3H800 delivers an exceptional breaking capacity of 120 kA AC and 80 kA DC, making it suitable for demanding switchgear and distribution panel applications.
Certifications & Standards
- IEC 60269: International standard for low-voltage fuses — full compliance ensures reliable short-circuit and overload protection performance.
- CE: Conformité Européenne marking confirms compliance with applicable EU safety, health, and environmental directives.
- RoHS: Compliant with EU Directive 2011/65/EU, restricting hazardous substances in electrical and electronic equipment.
- REACH: Meets EU REACH regulation requirements for chemical substance safety in products placed on the European market.
- EU Directive 2011/65/EU: RoHS recast directive restricting the use of certain hazardous substances in electrical and electronic equipment.
- EU Directive 2015/863: Amendment to RoHS directive expanding the list of restricted hazardous substances.
- WEEE: Compliant with the Waste Electrical and Electronic Equipment directive, supporting responsible end-of-life disposal and recycling.
Applications & Use Cases
- Short-circuit and overcurrent protection in industrial power distribution panels and switchboards
- Protection of busbars, transformers, and cables in low-voltage networks up to 500V AC
- DC applications in battery systems, photovoltaic installations, and DC drives up to 250V DC
- Motor control centres (MCCs) and industrial automation control panels requiring high breaking capacity protection
- Fusegear assemblies and enclosed switch-fuse units in manufacturing, utilities, and infrastructure facilities
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Dimensions 4
| Product Net Width | 70 mm |
|---|---|
| Product Net Height | 150 mm |
| Product Net Depth / Length | 84 mm |
| Product Net Weight | 0.9 kg |
Technical 8
| Fuse Size | NH3 |
|---|---|
| Fuse System | DIN |
| Fuse Type | gG |
| Power Loss | at Rated Current 53.2 W, Total 53.2 W |
| Rated Current (In) | 800 A |
| Rated Voltage (Ur) | 500 V |
| Standards | IEC 60269 |
| Utilization Category | gL/gG (Cable protection/equipment protection) |
Show all 40 specifications ↓ Show less ↑27 more values in Identification, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022627R7240 |
|---|---|
| Type designation | OFAF3H800 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019206189 |
| ETIM class | EC000055 |
| eCl@ss | 27142005 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85361090 |
| Country of Origin | Hungary |
External Classifications and Standards 5
| ETIM 10 | EC000055 - Knife blade fuse |
|---|---|
| UNSPSC | 39121600 |
| eClass | V11.1 : 27142005 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 2040220 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 70 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 84 mm |
| Package Level 1 Gross Weight | 0.945 kg |
| Package Level 1 EAN | 6417019206189 |
| Shipping weight | 0.945 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
