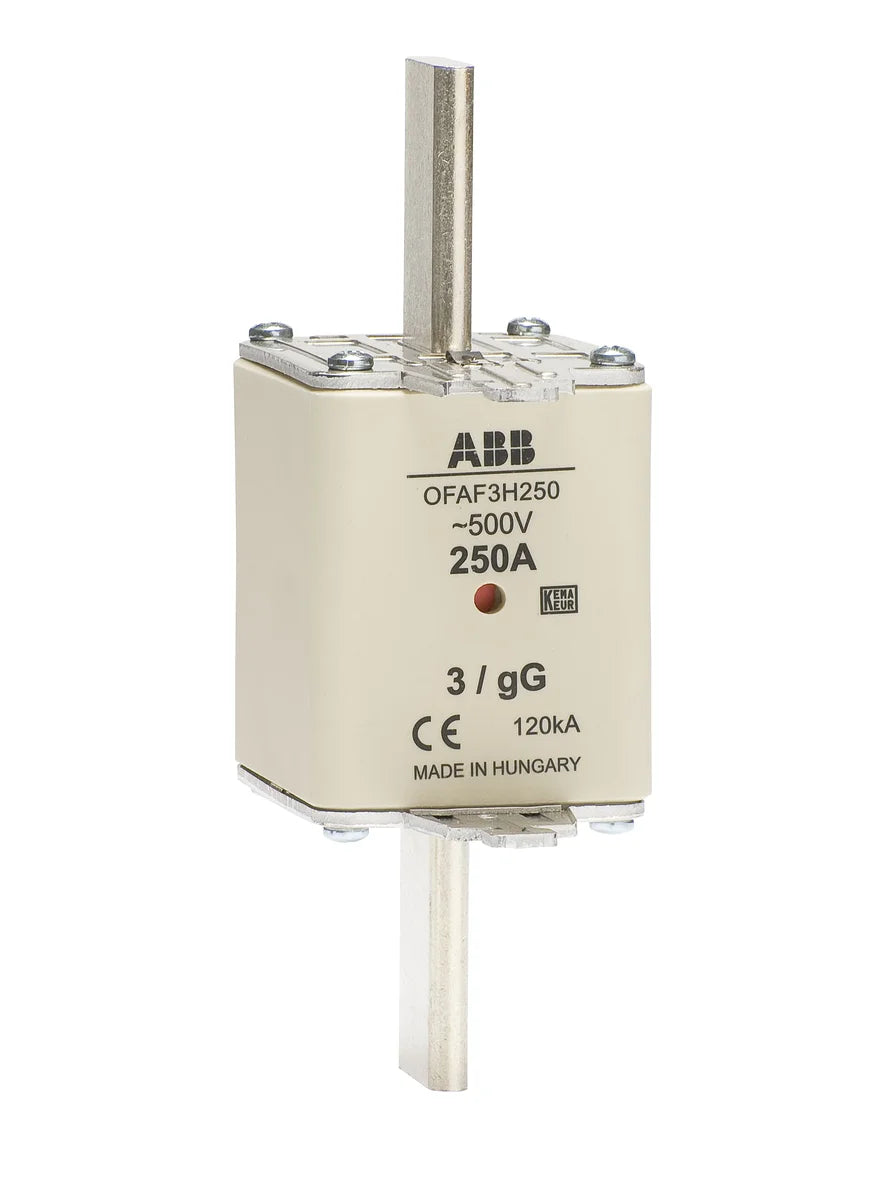

ABB 1SCA022627R7160 OFAF3H630 630A 500VAC/250VDC 120kA HRC Fuse Link
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 355 | 1SCA022627R6190 | In stock | $12.40 | |
| 400 | 1SCA022627R6270 | In stock | $12.40 | |
| 425 | 1SCA022627R6860 | Low stock | $26.17 | |
| 630 | 1SCA022627R7160This part | Low stock | $26.17 | |
| 800 | 1SCA022627R7240 | In stock | $54.76 |
Description
About the OFAF3H630
About the OFAF3H630
The ABB OFAF3H630 HRC fuse link (SKU: 1SCA022627R7160) is a high-rupturing-capacity fuse designed for robust overcurrent and short-circuit protection in industrial power distribution systems. Rated at 630A and 500VAC / 250VDC with a breaking capacity of 120 kA AC and 80 kA DC, the OFAF3H630 delivers reliable, fast-acting protection for cables, busbars, and sensitive equipment in demanding control panel and switchgear applications.
Certifications & Standards
- IEC 60269: Compliant with the international standard for low-voltage fuses
- CE: Meets European conformity requirements for electrical equipment
- RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances, including Amendment 2015/863
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment directive
Applications & Use Cases
- Short-circuit and overcurrent protection in industrial switchgear and distribution panels
- Cable and busbar protection in motor control centres (MCCs)
- Protection of transformers and power supply equipment in manufacturing facilities
- Industrial automation and control panel applications requiring high breaking capacity
- DC distribution systems up to 250 VDC requiring 80 kA breaking capacity
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Dimensions 4
| Product Net Width | 70 mm |
|---|---|
| Product Net Height | 150 mm |
| Product Net Depth / Length | 84 mm |
| Product Net Weight | 1 kg |
Technical 8
| Fuse Size | NH3 |
|---|---|
| Fuse System | DIN |
| Fuse Type | gG |
| Power Loss | at Rated Current 43.1 W, Total 43.1 W |
| Rated Current (In) | 630 A |
| Rated Voltage (Ur) | 500 V |
| Standards | IEC 60269 |
| Utilization Category | gL/gG (Cable protection/equipment protection) |
Show all 40 specifications ↓ Show less ↑27 more values in Identification, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022627R7160 |
|---|---|
| Type designation | OFAF3H630 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019206172 |
| ETIM class | EC000055 |
| eCl@ss | 27142005 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85361090 |
| Country of Origin | Hungary |
External Classifications and Standards 5
| ETIM 10 | EC000055 - Knife blade fuse |
|---|---|
| UNSPSC | 39121600 |
| eClass | V11.1 : 27142005 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 2040218 |
Logistics 10
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 70 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 84 mm |
| Package Level 1 Gross Weight | 1.05 kg |
| Package Level 1 EAN | 6417019206172 |
| Shipping weight | 1.05 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA022627R7160
No documents are on file for this part yet.
Ask us for the datasheet
Other ratings
All 25 ratings in OFAF
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 2 A | 1SCA022627R0230 | OFAF000H2 | In stock | $16.91 | |||
| 4 A | 1SCA022627R0310 | OFAF000H4 | In stock | $10.32 | |||
| 6 A | 1SCA022627R0400 | OFAF000H6 | In stock | $10.32 | |||
| 10 A | 1SCA022627R0580 | OFAF000H10 | In stock | $10.32 | |||
| 16 A | 1SCA022627R0660 | OFAF000H16 | In stock | $10.32 | |||
| 20 A | 1SCA022627R0740 | OFAF000H20 | In stock | $10.32 | |||
| 25 A | 1SCA022627R0820 | OFAF000H25 | Low stock | $10.32 | |||
| 32 A | 1SCA022627R0910 | OFAF000H32 | In stock | $10.32 | |||
| 35 A | 1SCA022627R1040 | OFAF000H35 | In stock | $10.32 | |||
| 40 A | 1SCA022627R1120 | OFAF000H40 | In stock | $10.32 | |||
| 50 A | 1SCA022627R1210 | OFAF000H50 | In stock | $10.32 | |||
| 63 A | 1SCA022627R1390 | OFAF000H63 | In stock | $10.32 | |||
| 80 A | 1SCA022627R1470 | OFAF000H80 | In stock | $10.32 | |||
| 100 A | 1SCA022627R1550 | OFAF000H100 | In stock | $10.32 | |||
| 125 A | 1SCA022627R1630 | OFAF00H125 | In stock | $14.11 | |||
| 160 A | 1SCA022627R1710 | OFAF00H160 | In stock | $14.11 | |||
| 200 A | 1SCA022627R4490 | OFAF1H200 | In stock | $9.99 | |||
| 224 A | 1SCA022627R4570 | OFAF1H224 | Critical stock | $9.99 | |||
| 250 A | 1SCA022627R4650 | OFAF1H250 | In stock | $9.99 | |||
| 300 A | 1SCA022627R5970 | OFAF2H300 | In stock | $12.40 | |||
| 355 A | 1SCA022627R6190 | OFAF2H355 | In stock | $12.40 | |||
| 400 A | 1SCA022627R6270 | OFAF2H400 | In stock | $12.40 | |||
| 425 A | 1SCA022627R6860 | OFAF3H425 | Low stock | $26.17 | |||
| 630 A | 1SCA022627R7160 This part | OFAF3H630 | Low stock | $26.17 | |||
| 800 A | 1SCA022627R7240 | OFAF3H800 | In stock | $54.76 |
Certifications
Certifications and standards
- CE
- RoHS
- IEC 60269
Quick answers
Questions about the OFAF3H630
What is the rated current of OFAF3H630?
The rated current of OFAF3H630 is 630 A.
Which supply voltage is OFAF3H630 rated for?
The rated operational voltage of OFAF3H630 is 500 – 250 V DC.
What is the HS code of OFAF3H630 for customs?
The tariff (HS) code on file for OFAF3H630 is 85361090.
What is the EAN of OFAF3H630?
The EAN (GTIN) of OFAF3H630 is 6417019206172.
Where does OFAF3H630 ship from, and how fast?
OFAF3H630 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
Reviews
Customer reviews
Series
ABB OFAF
- Brand
- ABB
- Series
- OFAF
- Rated current
- 2–800 A
- Supply voltage
- 500 – 250 V DC
- Ratings listed
- 25
