- Part number
- 1SCA022627R1710
- Model no
- OFAF00H160
- CE
- RoHS

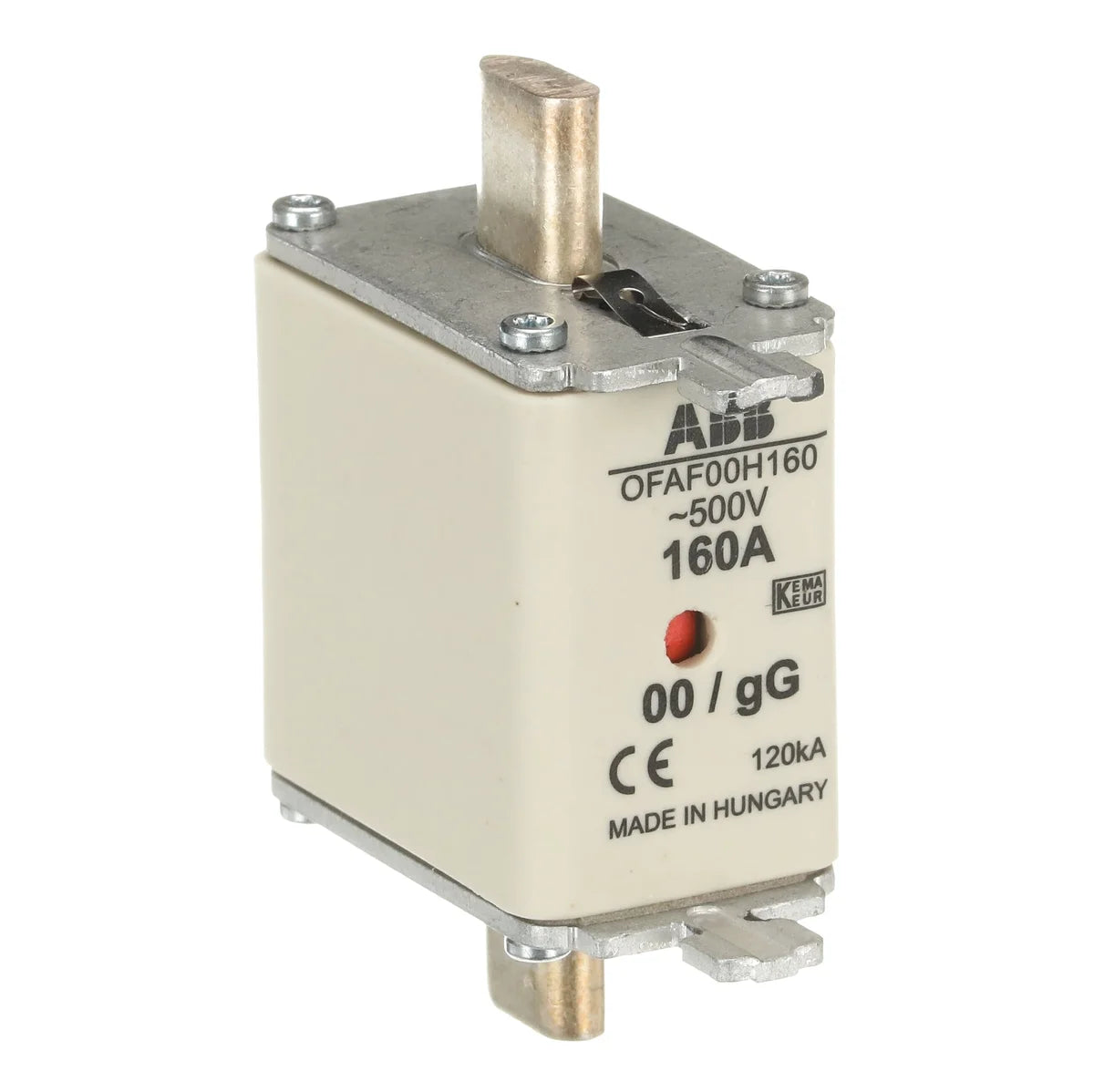

ABB 1SCA022627R1710 OFAF00H160 160A 500VAC/250VDC 120kA HRC Fuse Link Fuselink
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 100 | 1SCA022627R1550 | In stock | $10.32 | |
| 125 | 1SCA022627R1630 | In stock | $14.11 | |
| 160 | 1SCA022627R1710This part | In stock | $14.11 | |
| 200 | 1SCA022627R4490 | In stock | $9.99 | |
| 224 | 1SCA022627R4570 | Critical stock | $9.99 |
Description
About the OFAF00H160
About the OFAF00H160
The ABB OFAF00H160 (SKU: 1SCA022627R1710) is a high-rupturing-capacity (HRC) fuse link from the OFAF series, rated at 160A and 500VAC / 250VDC with a breaking capacity of 120 kA AC and 80 kA DC. Designed for reliable overcurrent and short-circuit protection in industrial power distribution systems, the OFAF00H160 delivers robust performance in demanding control panel and switchgear applications.
Certifications & Standards
- IEC 60269: Compliant with the international standard for low-voltage fuses, ensuring verified performance and interoperability in industrial installations.
- CE: Meets European Union safety, health, and environmental protection requirements for electrical equipment.
- RoHS: Compliant with the Restriction of Hazardous Substances Directive, confirming the product is free from restricted hazardous materials.
- REACH: Compliant with EU REACH regulation regarding chemical substances used in the product.
- WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal and recycling.
Applications & Use Cases
- Short-circuit and overcurrent protection in low-voltage industrial power distribution panels
- Protection of cables, busbars, and equipment in manufacturing and process automation environments
- Switchgear and control panel assemblies requiring compact, high-breaking-capacity fuse protection
- Motor branch circuit protection in industrial automation and motor control centres
- Applications requiring both AC (up to 500V) and DC (up to 250V) fuse protection in a single component
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Dimensions 4
| Product Net Width | 30 mm |
|---|---|
| Product Net Height | 79 mm |
| Product Net Depth / Length | 60 mm |
| Product Net Weight | 0.18 kg |
Technical 8
| Fuse Size | NH00 |
|---|---|
| Fuse System | DIN |
| Fuse Type | gG |
| Power Loss | at Rated Current 11.3 W, Total 11.3 W |
| Rated Current (In) | 160 A |
| Rated Voltage (Ur) | 500 V |
| Standards | IEC 60269 |
| Utilization Category | gL/gG (Cable protection/equipment protection) |
Show all 40 specifications ↓ Show less ↑27 more values in Identification, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022627R1710 |
|---|---|
| Type designation | OFAF00H160 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019205601 |
| ETIM class | EC000055 |
| eCl@ss | 27142005 |
| Minimum Order Quantity | 3 piece |
| Customs Tariff Number | 85361090 |
| Country of Origin | Hungary |
External Classifications and Standards 5
| ETIM 10 | EC000055 - Knife blade fuse |
|---|---|
| UNSPSC | 39121600 |
| eClass | V11.1 : 27142005 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 2040032 |
Logistics 10
| Package Level 1 Units | box 3 piece |
|---|---|
| Package Level 1 Width | 30 mm |
| Package Level 1 Depth / Length | 79 mm |
| Package Level 1 Height | 60 mm |
| Package Level 1 Gross Weight | 0.567 kg |
| Package Level 1 EAN | 6417019205601 |
| Shipping weight | 0.567 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA022627R1710
No documents are on file for this part yet.
Ask us for the datasheet
Other ratings
All 25 ratings in OFAF
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 2 A | 1SCA022627R0230 | OFAF000H2 | In stock | $16.91 | |||
| 4 A | 1SCA022627R0310 | OFAF000H4 | In stock | $10.32 | |||
| 6 A | 1SCA022627R0400 | OFAF000H6 | In stock | $10.32 | |||
| 10 A | 1SCA022627R0580 | OFAF000H10 | In stock | $10.32 | |||
| 16 A | 1SCA022627R0660 | OFAF000H16 | In stock | $10.32 | |||
| 20 A | 1SCA022627R0740 | OFAF000H20 | In stock | $10.32 | |||
| 25 A | 1SCA022627R0820 | OFAF000H25 | Low stock | $10.32 | |||
| 32 A | 1SCA022627R0910 | OFAF000H32 | In stock | $10.32 | |||
| 35 A | 1SCA022627R1040 | OFAF000H35 | In stock | $10.32 | |||
| 40 A | 1SCA022627R1120 | OFAF000H40 | In stock | $10.32 | |||
| 50 A | 1SCA022627R1210 | OFAF000H50 | In stock | $10.32 | |||
| 63 A | 1SCA022627R1390 | OFAF000H63 | In stock | $10.32 | |||
| 80 A | 1SCA022627R1470 | OFAF000H80 | In stock | $10.32 | |||
| 100 A | 1SCA022627R1550 | OFAF000H100 | In stock | $10.32 | |||
| 125 A | 1SCA022627R1630 | OFAF00H125 | In stock | $14.11 | |||
| 160 A | 1SCA022627R1710 This part | OFAF00H160 | In stock | $14.11 | |||
| 200 A | 1SCA022627R4490 | OFAF1H200 | In stock | $9.99 | |||
| 224 A | 1SCA022627R4570 | OFAF1H224 | Critical stock | $9.99 | |||
| 250 A | 1SCA022627R4650 | OFAF1H250 | In stock | $9.99 | |||
| 300 A | 1SCA022627R5970 | OFAF2H300 | In stock | $12.40 | |||
| 355 A | 1SCA022627R6190 | OFAF2H355 | In stock | $12.40 | |||
| 400 A | 1SCA022627R6270 | OFAF2H400 | In stock | $12.40 | |||
| 425 A | 1SCA022627R6860 | OFAF3H425 | Low stock | $26.17 | |||
| 630 A | 1SCA022627R7160 | OFAF3H630 | Low stock | $26.17 | |||
| 800 A | 1SCA022627R7240 | OFAF3H800 | In stock | $54.76 |
Certifications
Certifications and standards
- CE
- RoHS
- IEC 60269
Quick answers
Questions about the OFAF00H160
What is the rated current of OFAF00H160?
The rated current of OFAF00H160 is 160 A.
Which supply voltage is OFAF00H160 rated for?
The rated operational voltage of OFAF00H160 is 500 – 250 V DC.
What is the HS code of OFAF00H160 for customs?
The tariff (HS) code on file for OFAF00H160 is 85361090.
What is the EAN of OFAF00H160?
The EAN (GTIN) of OFAF00H160 is 6417019205601.
Where does OFAF00H160 ship from, and how fast?
OFAF00H160 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
