- Part number
- 1SCA022627R1630
- Model no
- OFAF00H125
- CE
- RoHS

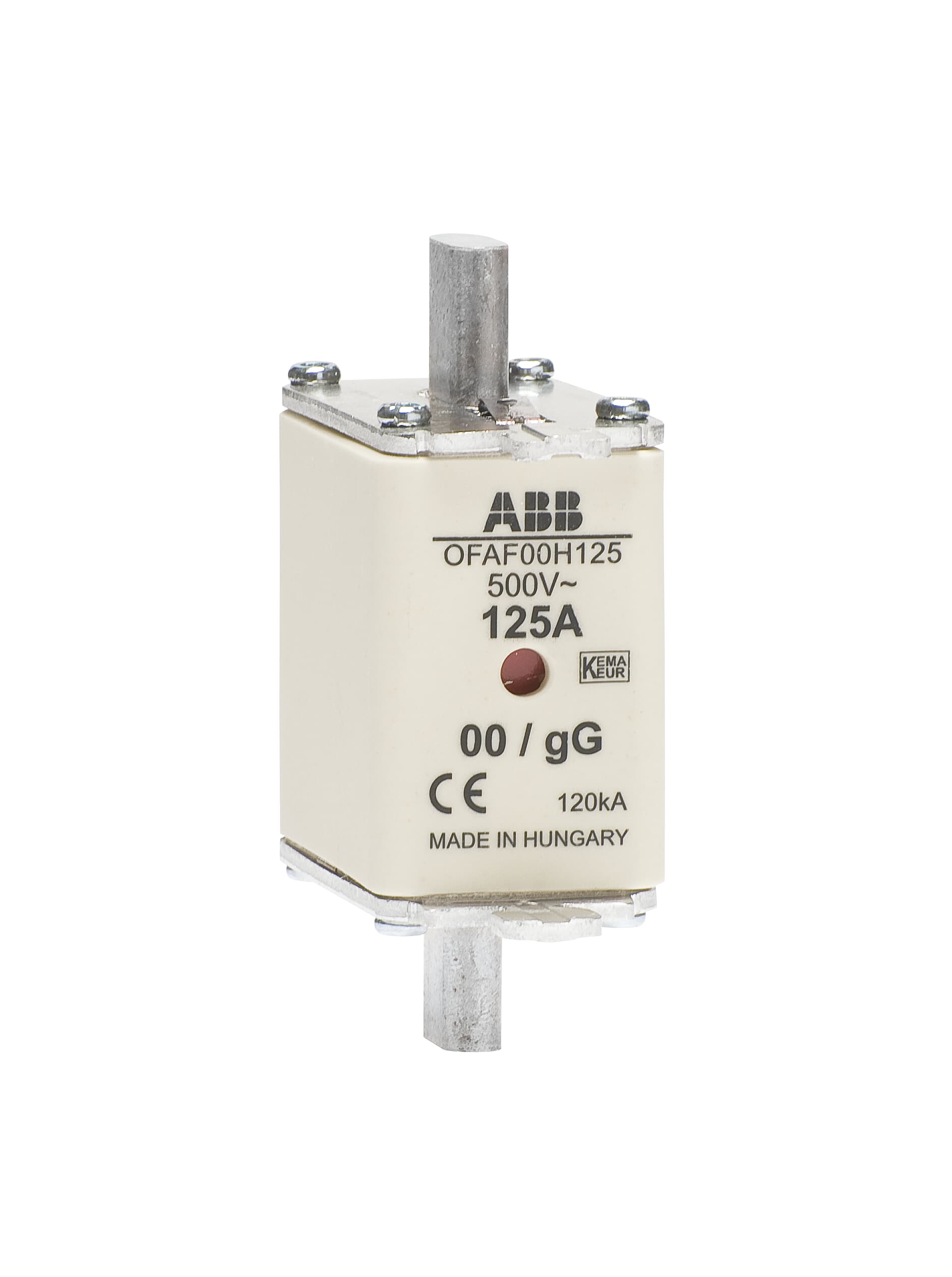

ABB 1SCA022627R1630 OFAF00H125 125A 500VAC/250VDC 120kA HRC Fuse Link
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 80 | 1SCA022627R1470 | In stock | $10.32 | |
| 100 | 1SCA022627R1550 | In stock | $10.32 | |
| 125 | 1SCA022627R1630This part | In stock | $14.11 | |
| 160 | 1SCA022627R1710 | In stock | $14.11 | |
| 200 | 1SCA022627R4490 | In stock | $9.99 |
Description
About the OFAF00H125
About the OFAF00H125
The ABB OFAF00H125 HRC Fuse Link (SKU: 1SCA022627R1630) is a high-rupturing-capacity fuse designed for reliable short-circuit and overload protection in industrial power distribution systems. Rated at 125A with a maximum voltage of 500VAC / 250VDC and an exceptional breaking capacity of 120 kA AC / 80 kA DC, the OFAF00H125 delivers robust fault interruption performance for demanding control panel and switchgear applications.
Certifications & Standards
- CE: Compliant with European CE marking requirements for electrical equipment
- RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
- REACH: Compliant with EU REACH chemical regulation for safe materials
- EU Directive 2011/65/EU: RoHS recast directive restricting hazardous substances in electrical and electronic equipment
- EU Directive 2015/863: Amendment to RoHS Directive 2011/65/EU, extending restricted substance list
- IEC 60269: Manufactured and tested in accordance with IEC 60269 low-voltage fuse standards
- WEEE: Compliant with Waste Electrical and Electronic Equipment Directive for responsible disposal
Applications & Use Cases
- Short-circuit protection in industrial switchgear and control panels
- Motor feeder and distribution board protection in manufacturing environments >
- Protection of busbars and cable installations in automation systems
- Replacement fuse link in ABB OFAF fusegear assemblies
- DC circuit protection in renewable energy and battery storage systems (up to 250VDC)
Specification
Full specification
Material Compliance 1
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|
Dimensions 4
| Product Net Width | 30 mm |
|---|---|
| Product Net Height | 79 mm |
| Product Net Depth / Length | 60 mm |
| Product Net Weight | 0.18 kg |
Technical 8
| Fuse Size | NH00 |
|---|---|
| Fuse System | DIN |
| Fuse Type | gG |
| Power Loss | at Rated Current 10 W, Total 10 W |
| Rated Current (In) | 125 A |
| Rated Voltage (Ur) | 500 V |
| Standards | IEC 60269 |
| Utilization Category | gL/gG (Cable protection/equipment protection) |
Show all 40 specifications ↓ Show less ↑27 more values in Identification, External Classifications and Standards, Logistics.
Identification 12
| Part number | 1SCA022627R1630 |
|---|---|
| Type designation | OFAF00H125 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 6417019205595 |
| ETIM class | EC000055 |
| eCl@ss | 27142005 |
| Minimum Order Quantity | 3 piece |
| Customs Tariff Number | 85361090 |
| Country of Origin | Hungary |
External Classifications and Standards 5
| ETIM 10 | EC000055 - Knife blade fuse |
|---|---|
| UNSPSC | 39121600 |
| eClass | V11.1 : 27142005 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Sweden) | 2040030 |
Logistics 10
| Package Level 1 Units | box 3 piece |
|---|---|
| Package Level 1 Width | 30 mm |
| Package Level 1 Depth / Length | 79 mm |
| Package Level 1 Height | 60 mm |
| Package Level 1 Gross Weight | 0.567 kg |
| Package Level 1 EAN | 6417019205595 |
| Shipping weight | 0.567 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SCA022627R1630
No documents are on file for this part yet.
Ask us for the datasheet
Other ratings
All 25 ratings in OFAF
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 2 A | 1SCA022627R0230 | OFAF000H2 | In stock | $16.91 | |||
| 4 A | 1SCA022627R0310 | OFAF000H4 | In stock | $10.32 | |||
| 6 A | 1SCA022627R0400 | OFAF000H6 | In stock | $10.32 | |||
| 10 A | 1SCA022627R0580 | OFAF000H10 | In stock | $10.32 | |||
| 16 A | 1SCA022627R0660 | OFAF000H16 | In stock | $10.32 | |||
| 20 A | 1SCA022627R0740 | OFAF000H20 | In stock | $10.32 | |||
| 25 A | 1SCA022627R0820 | OFAF000H25 | Low stock | $10.32 | |||
| 32 A | 1SCA022627R0910 | OFAF000H32 | In stock | $10.32 | |||
| 35 A | 1SCA022627R1040 | OFAF000H35 | In stock | $10.32 | |||
| 40 A | 1SCA022627R1120 | OFAF000H40 | In stock | $10.32 | |||
| 50 A | 1SCA022627R1210 | OFAF000H50 | In stock | $10.32 | |||
| 63 A | 1SCA022627R1390 | OFAF000H63 | In stock | $10.32 | |||
| 80 A | 1SCA022627R1470 | OFAF000H80 | In stock | $10.32 | |||
| 100 A | 1SCA022627R1550 | OFAF000H100 | In stock | $10.32 | |||
| 125 A | 1SCA022627R1630 This part | OFAF00H125 | In stock | $14.11 | |||
| 160 A | 1SCA022627R1710 | OFAF00H160 | In stock | $14.11 | |||
| 200 A | 1SCA022627R4490 | OFAF1H200 | In stock | $9.99 | |||
| 224 A | 1SCA022627R4570 | OFAF1H224 | Critical stock | $9.99 | |||
| 250 A | 1SCA022627R4650 | OFAF1H250 | In stock | $9.99 | |||
| 300 A | 1SCA022627R5970 | OFAF2H300 | In stock | $12.40 | |||
| 355 A | 1SCA022627R6190 | OFAF2H355 | In stock | $12.40 | |||
| 400 A | 1SCA022627R6270 | OFAF2H400 | In stock | $12.40 | |||
| 425 A | 1SCA022627R6860 | OFAF3H425 | Low stock | $26.17 | |||
| 630 A | 1SCA022627R7160 | OFAF3H630 | Low stock | $26.17 | |||
| 800 A | 1SCA022627R7240 | OFAF3H800 | In stock | $54.76 |
Certifications
Certifications and standards
- CE
- RoHS
- IEC 60269
Quick answers
Questions about the OFAF00H125
What is the rated current of OFAF00H125?
The rated current of OFAF00H125 is 125 A.
Which supply voltage is OFAF00H125 rated for?
The rated operational voltage of OFAF00H125 is 500 – 250 V DC.
What is the HS code of OFAF00H125 for customs?
The tariff (HS) code on file for OFAF00H125 is 85361090.
What is the EAN of OFAF00H125?
The EAN (GTIN) of OFAF00H125 is 6417019205595.
Where does OFAF00H125 ship from, and how fast?
OFAF00H125 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
