ABB 1SBL137201R1300 AF09-40-00-13 4-Pole 25A 690V 4kW 100-250V Coil AC/DC Power Contactor

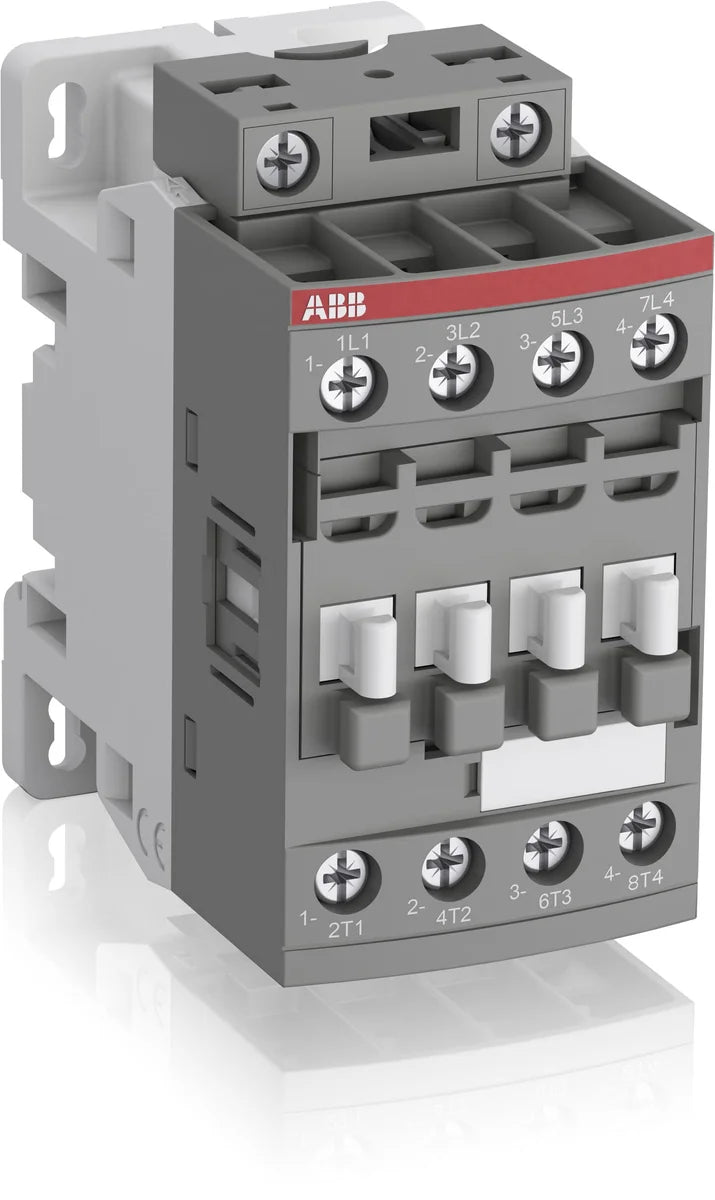

The ABB AF09-40-00-13 power contactor (SKU 1SBL137201R1300) is a 4-pole AC switching contactor from ABB's AF series, rated at 25 A and 690 V with a wide-range 100–250 V AC/DC coil. Delivering 4 kW motor switching capability, the AF09-40-00-13 is engineered for reliable load control in industrial automation, control panel, and motor starter applications. Its compact 45 × 86 × 77 mm footprint and 0.27 kg weight make it ideal for space-constrained enclosures.

Technical Specifications

Certifications & Standards

• CE: European conformity marking for product safety and regulatory compliance
• UKCA: UK Conformity Assessed marking for Great Britain market
• CCC: China Compulsory Certification for the Chinese market
• CQC: China Quality Certification Centre voluntary certification
• CB: IEC CB Scheme international safety certification
• ABS: American Bureau of Shipping marine type approval
• BV: Bureau Veritas marine and industrial certification
• UL: Underwriters Laboratories product safety certification
• CSA: Canadian Standards Association product certification
• UL 60335-2-40: UL standard for safety of heat pumps, air conditioners, and dehumidifiers
• CSA C22.2 No. 60335-2-40: CSA standard for heat pumps and air conditioning equipment
• IEC 60947-1 / EN 60947-1: Low-voltage switchgear and controlgear — general rules
• IEC 60947-4 / EN 60947-4: Low-voltage switchgear — contactors and motor starters
• UL 60947-1: UL standard for low-voltage switchgear general rules
• UL 60947-4-1: UL standard for contactors and motor starters
• UL 60335-2-40 LZGH2A2L: UL file reference for HVAC contactor compliance
• CSA C22.2 No. 60335-2-40 LZGH2A2L: CSA file reference for HVAC contactor compliance
• CAN/CSA C22.2 No. 60947-1: Canadian standard for low-voltage switchgear general rules
• CAN/CSA C22.2 No. 60947-4-1: Canadian standard for contactors and motor starters
• IEC/EN 60947-1: Combined IEC/EN standard for low-voltage switchgear general rules
• IEC/EN 60947-4: Combined IEC/EN standard for contactors and motor starters
• IEC 60068-2-27: Environmental testing — shock
• EN 45555: General methods for the assessment of the ability to repair, reuse, and recycle energy-related products
• EN 45555-92: Extended product-specific assessment under EN 45555
• CSA C22.2 No. 60335: CSA group standard for household and similar electrical appliances safety
• CSA C22.2 No. 60947: CSA group standard for low-voltage switchgear and controlgear
• REACH: EU regulation on registration, evaluation, authorisation and restriction of chemicals
• RoHS: Restriction of Hazardous Substances directive compliance
• WEEE: Waste Electrical and Electronic Equipment directive compliance
