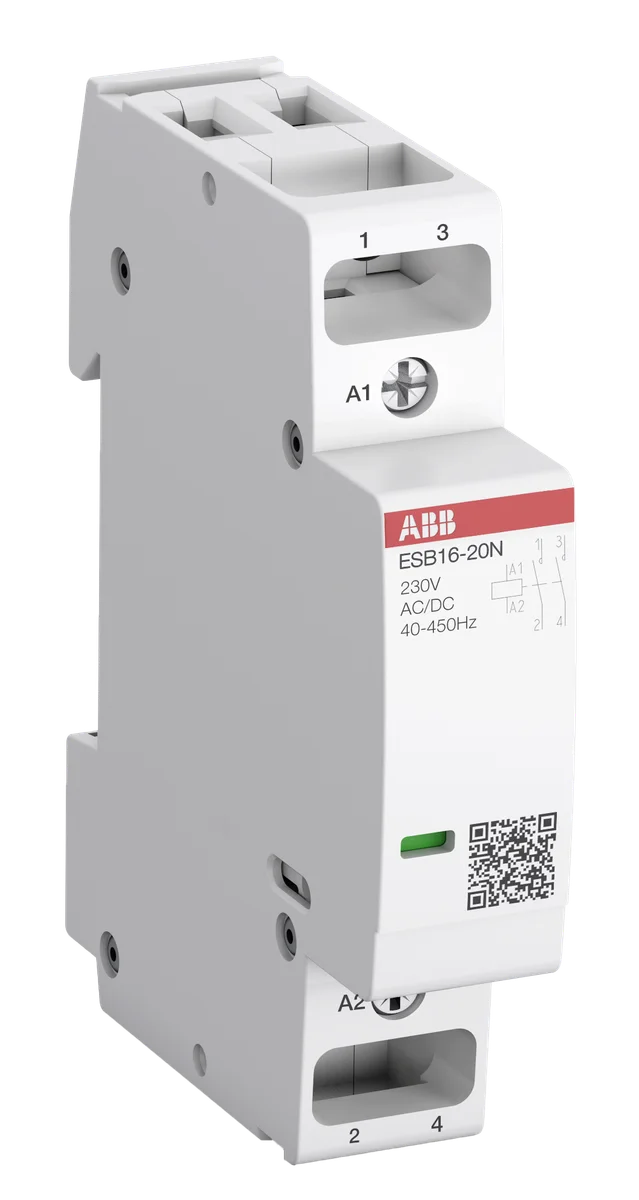

The ABB ESB16-20N-06 (SKU: 1SBE111111R0620) is a 16 A, 2-pole installation contactor designed for distribution board applications, featuring a 230 V DC control circuit and a 2NO contact configuration. Part of the ABB ESB16..N series, this compact contactor measures just 18 × 65 × 85 mm and weighs 0.14 kg, making it ideal for space-constrained panel installations requiring reliable switching performance.
What does the "N" suffix in ESB16-20N-06 indicate?
The "N" designates the normally-open (NO) contact configuration of this ESB16..N series contactor — it has 2 normally-open contacts and 0 normally-closed contacts.
What is the control coil voltage for the ESB16-20N-06?
The control circuit operates at 230 V DC, as indicated by the "-06" suffix in the catalog number.
Is the ESB16-20N-06 DIN rail mountable?
Yes, the contactor is compliant with IEC 60715 for standard DIN rail mounting, with a compact 18 mm width.
Is this contactor approved for marine use?
Yes, the ESB16-20N-06 carries DNV certification, making it suitable for marine and offshore panel applications.
| Product Net Width | 18 mm |
|---|---|
| Product Net Depth / Length | 65 mm |
| Product Net Height | 85 mm |
| Product Net Weight | 0.14 kg |
| Number of Main Contacts NO | 2 |
|---|---|
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Poles | 2P |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, IEC/EN 61095, IEC 60335-2-40 A2L |
| Rated Operational Voltage | Main Circuit 220 V DC, Main Circuit 240 V AC |
| Rated Frequency (f) | Control Circuit DC, Control Circuit 50 Hz, Control Circuit 60 Hz, Control Circuit 400 Hz, Main Circuit DC, Main Circuit 50 Hz, Main Circuit 60 Hz |
| Rated Operational Current AC-1 (Ie) | (NO) 16 A |
| Rated Operational Current AC-3 (Ie) | (230 V) Single Phase, NO 6 A |
| Rated Operational Current AC-7a (Ie) | (NO) 16 A |
| Rated Operational Current AC-7b (Ie) | (230 V) Single Phase, NO 6 A |
| Rated Operational Power AC-1 (Pe) | (230 V) Single Phase, NO 3.7 kW |
| Rated Operational Power AC-3 (Pe) | (230 V) Single Phase, NO 0.9 kW |
| Rated Operational Power AC-7a (Pe) | (230 V) Single Phase, NO 3.7 kW |
| Rated Operational Power AC-7b (Pe) | (230 V) Single Phase, NO 0.9 kW |
| Rated Breaking Capacity AC-3 | 8 x Ie / AC-3 |
| Rated Making Capacity AC-3 | 10 x Ie / AC-3 |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 72 A |
| Rated Insulation Voltage (Ui) | 400 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Electrical Durability | AC-1 (NO) 150000 cycle, AC-3 (NO) 150000 cycle, AC-7a (NO) 150000 cycle, AC-7b (NO) 150000 cycle |
| Maximum Electrical Switching Frequency | (AC-1) 300 cycles per hour, (AC-3) 600 cycles per hour, (AC-7a) 300 cycles per hour, (AC-7b) 600 cycles per hour |
| Mechanical Durability | Nr. Operations 1000000 cycle |
| Coil Operating Limits | (acc. to IEC 60947-4-1) 0.85 ... 1.1 x Uc (at θ ≤ 55 °C) |
| Rated Control Circuit Voltage (Uc) | 230 V |
| Coil Consumption | Average Holding Value 50 / 60 Hz 2.5 V·A, Average Holding Value DC 2.5 W, Average Pull-in Value 50 Hz 2.5 V·A, Average Pull-in Value 60 Hz 2.5 V·A, Average Pull-in Value DC 2.5 W |
| Power Loss | at Rated Operating Conditions AC-1 per Pole NO 0.9 W |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 1 ... 6 mm², Flexible with Ferrule 2x 1 ... 2.5 mm², Flexible with Insulated Ferrule 1x 1 ... 6 mm², Flexible with Insulated Ferrule 2x 1 ... 1.5 mm², Flexible 1x 1 ... 6 mm², Flexible 2x 1 ... 4 mm², Rigid 1x 1 ... 10 mm², Rigid 2x 1 ... 4 mm² |
| Connecting Capacity Control Circuit | Flexible with Ferrule 1x 0.75 ... 2.5 mm², Flexible with Ferrule 2x 0.75 ... 1.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 1 mm², Flexible 1x 1 ... 2.5 mm², Flexible 2x 1 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.75 ... 2.5 mm² |
| Wire Stripping Length | Control Circuit 7 mm, Main Circuit 10 mm |
| Degree of Protection | IP20 |
| Recommended Screw Driver | Control Circuit Pozidriv 1, Main Circuit Pozidriv 1 |
| Tightening Torque | Control Circuit 0.9 N·m, Main Circuit 1.2 N·m |
| Terminal Type | Screw Terminals |
| Width in Number of Modular Spacings | 1 |
| Product Name | Installation Contactor |
| Maximum Operating Voltage UL/CSA | Main Circuit 240 V AC |
|---|---|
| General Use Rating UL/CSA | (acc. to UL 240 V) 16 A |
| Horsepower Rating UL/CSA | (220 ... 240 V AC) Single Phase, NO 0.75 Hp |
| Connecting Capacity Main Circuit UL/CSA | Solid 14-8 AWG, Stranded 14-8 AWG |
| Connecting Capacity Control Circuit UL/CSA | Solid 16-10 AWG, Stranded 16-10 AWG |
| Tightening Torque UL/CSA | Control Circuit 8 in·lb, Main Circuit 11 in·lb |
| Full Load Amps Motor Use | (220 ... 240 V AC) Single Phase, NO 6.9 A |
| Part number | 1SBE111111R0620 |
|---|---|
| Type designation | ESB16-20N-06 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 3471523007147 |
| eCl@ss | 27142308 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Ambient Air Temperature | Operation -25 ... +55 °C, Storage -40 ... +80 °C |
|---|---|
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 15g |
| Pollution Degree | 3 |
| REACH Declaration | 2CMT2021-006202 |
|---|---|
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 901e857f-5ff0-48b2-bf0b-da3b7e6b7bf4 Bulgaria |
| Simplified SCIP | 1322bad3-b838-4c9c-84f6-16b3e831a858 Spain, 2b8c925c-da27-4f47-8c87-59bf4c7c317f Portugal, 334f3fe3-37cb-4a53-ae6e-c1d439d6aaea Italy, 35dcedf6-5a97-4d23-8a14-b4dbcaf6ea21 Greece, 4aeb951c-2a66-47b6-95a7-35818c595694 France, 50ee1735-e11c-4209-8ee8-0219e4ca4e20 Poland, 563c6dfb-c640-4cd0-9e62-3b4cec9ec7c9 Norway, 5ecdf71b-18e2-4f24-9709-e2f1e04dda35 Belgium, 5f977305-a09a-438d-bf5a-45d3918b1f90 Germany, 65820601-0411-4983-ae8a-3c89d0023feb Poland, 65f4fa8e-bebf-4c0f-87fe-d3c9a8557c78 Sweden, 6619aa13-80ee-4cca-9a5e-1ba66bf43478 Sweden, 66872159-a73d-4d78-8efb-29ad3ccbf86c Hungary, 9111696d-2522-4d0f-82a5-4eae89d960f5 Belgium, 96a2e760-fa95-4925-85f1-7584d8280709 Germany, a62823de-c124-422d-a495-c8b1a603cab0 Germany, a62bee63-81d4-4aa2-bc62-62e6c104656d Finland, b4cbc784-6931-4b47-810a-4b3db2877484 Poland, b8612912-225e-45ed-8da7-abf61b5ee17c Germany, c180a881-a25d-4e09-ad9c-75aea00fd945 Estonia, c96741ce-9944-4932-bc70-f4a75a4ebd31 Netherlands, d5a4d305-22ae-4d82-8ea9-1c242b9a6e06 Hungary, df193022-ff12-4b9b-b47f-647fdd8c16d3 Czechia, e53b23dc-6701-443e-8bc3-3d4244c06578 France, ec8eee5b-618a-442d-8bac-948e7ce768a3 Denmark, f331bcb1-a846-4e10-ab05-6c34e4123d16 Croatia, faa826e1-2ed5-4859-ab6c-ebcd9b5be69a Germany |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Consumer |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ETIM 7 | EC001653 - Installation contactor for distribution board |
|---|---|
| eClass | V11.0 : 27142308 |
| UNSPSC | 39121529 |
| E-Number (Sweden) | 3210552 |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 88 mm |
| Package Level 1 Depth / Length | 20 mm |
| Package Level 1 Height | 71 mm |
| Package Level 1 Gross Weight | 0.14 kg |
| Package Level 1 EAN | 3471523004481 |
| Package Level 2 EAN | 4013614583421 |
| Shipping weight | 0.14 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
