ABB 1SBL137001R1110 AF09-30-10-11 3-Pole 9A 24-60V AC/DC Coil 690V Power Contactor AC Switching

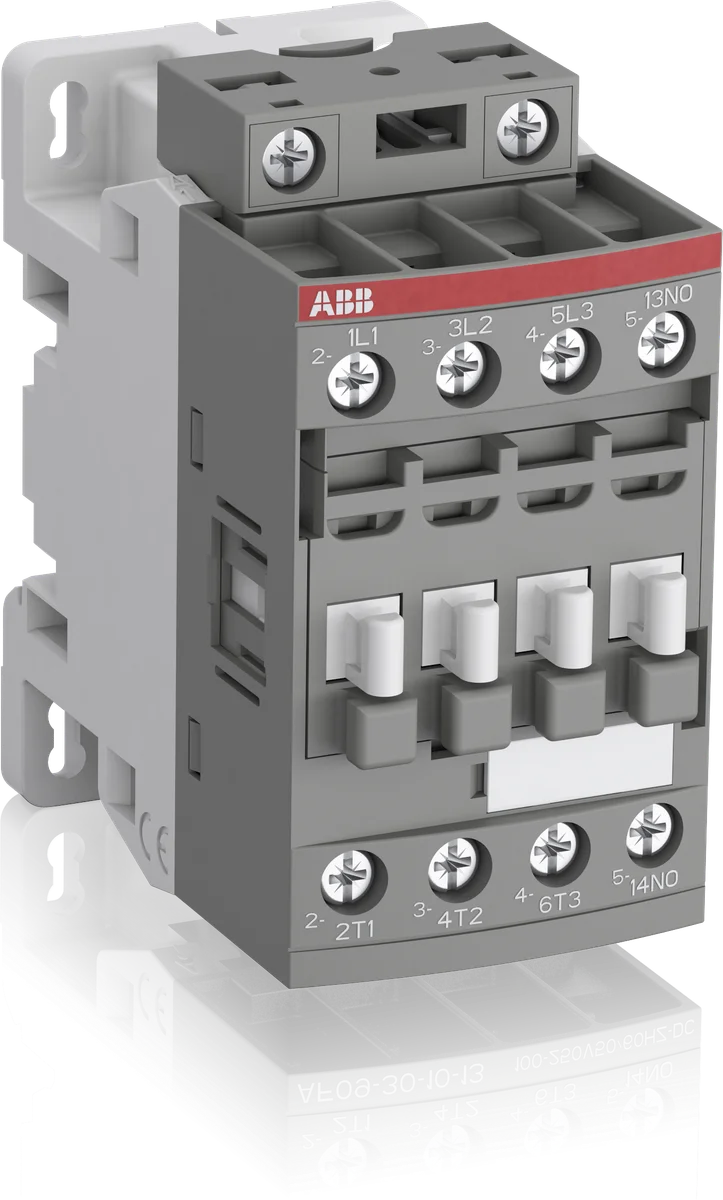

The ABB AF09-30-10-11 (SKU: 1SBL137001R1110) is a 3-pole power contactor designed for AC switching applications in industrial automation and control panel installations. Rated at 9A with a wide-range coil accepting 24–60V AC (50/60Hz) and 20–60V DC, the AF09-30-10-11 delivers reliable motor and load switching at voltages up to 690V AC — making it a versatile choice for global installations where supply voltage may vary.

Technical Specifications

Certifications & Standards

• CE: Conforms to European Union directives for electrical equipment
• UKCA: UK Conformity Assessed marking for the UK market
• UL: Underwriters Laboratories listed for the North American market
• UL 60947-4-1: UL standard for low-voltage motor starters and contactors
• UL 60335-2-40: UL standard for particular requirements for electrical heat pumps, air-conditioners and dehumidifiers
• UL 60335-2-40 LZGH2 A2L: UL certification covering A2L refrigerant applications
• CSA: Canadian Standards Association certified
• CSA C22.2 No. 60947-4-1: CSA standard for low-voltage contactors and motor starters
• CSA C22.2 No. 60335-2-40: CSA standard for heat pumps and air-conditioning equipment
• CSA C22.2 No. 60335-2-40 LZGH2 A2L: CSA certification for A2L refrigerant applications
• CSA C22.2 No. 60947: CSA standard for low-voltage switchgear and controlgear
• CSA C22.2 No. 60335: CSA standard for household and similar electrical appliances
• CCC: China Compulsory Certification for the Chinese market
• CQC: China Quality Certification Centre voluntary product certification
• ABS: American Bureau of Shipping type approval for marine applications
• BV: Bureau Veritas type approval for marine and offshore applications
• CB: CB Scheme international safety certification (IEC system)
• IEC 60947-1 / EN 60947-1: General rules for low-voltage switchgear and controlgear
• IEC 60947-4 / EN 60947-4: Contactors and motor starters
• IEC/EN 60947-1: Low-voltage switchgear and controlgear — general rules
• IEC/EN 60947-4: Low-voltage contactors and motor starters
• IEC 60947-5: Control circuit devices and switching elements
• IEC 60068-2: Environmental testing for electronic and electrical items
• IEC 60947-4-1 (implicit via UL/CSA alignment): Electromechanical contactors and motor starters
• EN45555: General methods for assessing the ability of energy-related products to be repaired, reused, upgraded and recycled
• EN45555-92: Specific assessment methods for energy-related products
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Compliant with EU REACH regulation (EC No 1907/2006) on chemical safety
• WEEE: Waste Electrical and Electronic Equipment Directive compliance

Applications & Use Cases

• Direct-on-line (DOL) motor starting for small three-phase motors up to 4 kW at 400V
• HVAC systems including heat pumps and air-conditioning units using A2L refrigerants
• Industrial automation control panels requiring compact, DIN-rail compatible switching
• Marine and offshore installations — ABS and BV type-approved
• Global OEM machinery where a wide-range coil (24–60V AC/DC) simplifies design across multiple supply standards
• Pump and fan control in building services and process automation
