ABB 1SBL137201R1100 AF09-40-00-11 4-Pole 25A 690V 4kW 24-60V AC/DC Coil Power Contactor AC Switching

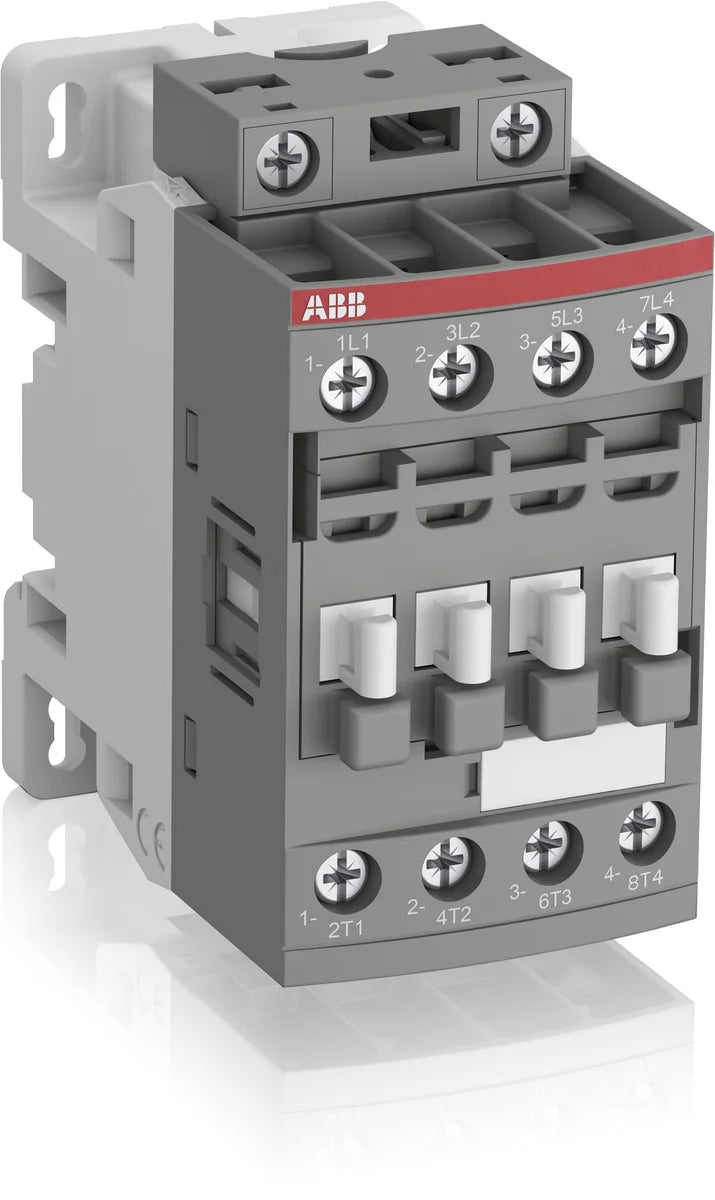

The ABB AF09-40-00-11 power contactor (SKU: 1SBL137201R1100) is a 4-pole, 25 A AC switching contactor rated at 690 V, designed for industrial automation and control panel applications. Featuring a wide-range coil accepting 24–60 V AC (50/60 Hz) and 20–60 V DC, the AF09-40-00-11 delivers reliable motor and load switching in compact dimensions of 45 mm × 86 mm × 77 mm and a lightweight 0.27 kg.

Technical Specifications

Certifications & Standards

• CE: European conformity marking for electrical safety and EMC directives
• UKCA: UK Conformity Assessed marking for Great Britain market
• UL: Underwriters Laboratories product safety certification
• UL 60947-1: UL standard for low-voltage switchgear and controlgear – general rules
• UL 60947-4-1: UL standard for contactors and motor starters
• UL 60335-2-40: UL standard for HVAC equipment safety (File LZGH2A2L)
• CSA: Canadian Standards Association certification
• CSA C22.2 No. 60335-2-40 (LZGH2A2L): CSA standard for HVAC and refrigerating appliances
• CSA C22.2 No. 60947: CSA standard for low-voltage switchgear and controlgear
• CSA C22.2 No. 60335: CSA standard for household and similar electrical appliances
• CAN/CSA C22.2 No. 60947-1: Canadian standard for low-voltage switchgear – general rules
• CAN/CSA C22.2 No. 60947-4-1: Canadian standard for contactors and motor starters
• CB: IEC System of Conformity Assessment Scheme for electrotechnical equipment
• CCC: China Compulsory Certification for the Chinese market
• CQC: China Quality Certification for voluntary product certification
• ABS: American Bureau of Shipping marine type approval
• BV: Bureau Veritas marine and offshore type approval
• IEC/EN 60947-1: International/European standard for low-voltage switchgear – general rules
• IEC/EN 60947-4: International/European standard for contactors and motor starters
• IEC 60947-4-1: Standard for AC contactors and motor starters
• IEC 60068-2: Environmental testing standard for electrical equipment
• IEC 60715: DIN rail mounting dimensions standard
• EN 45555: European standard for general methods for the assessment of the energy-related aspects of networked energy-related products
• EN 45555-92: Supplementary standard related to energy assessment
• REACH: EU regulation on registration, evaluation, authorisation of chemicals
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• WEEE: Waste Electrical and Electronic Equipment Directive compliance
