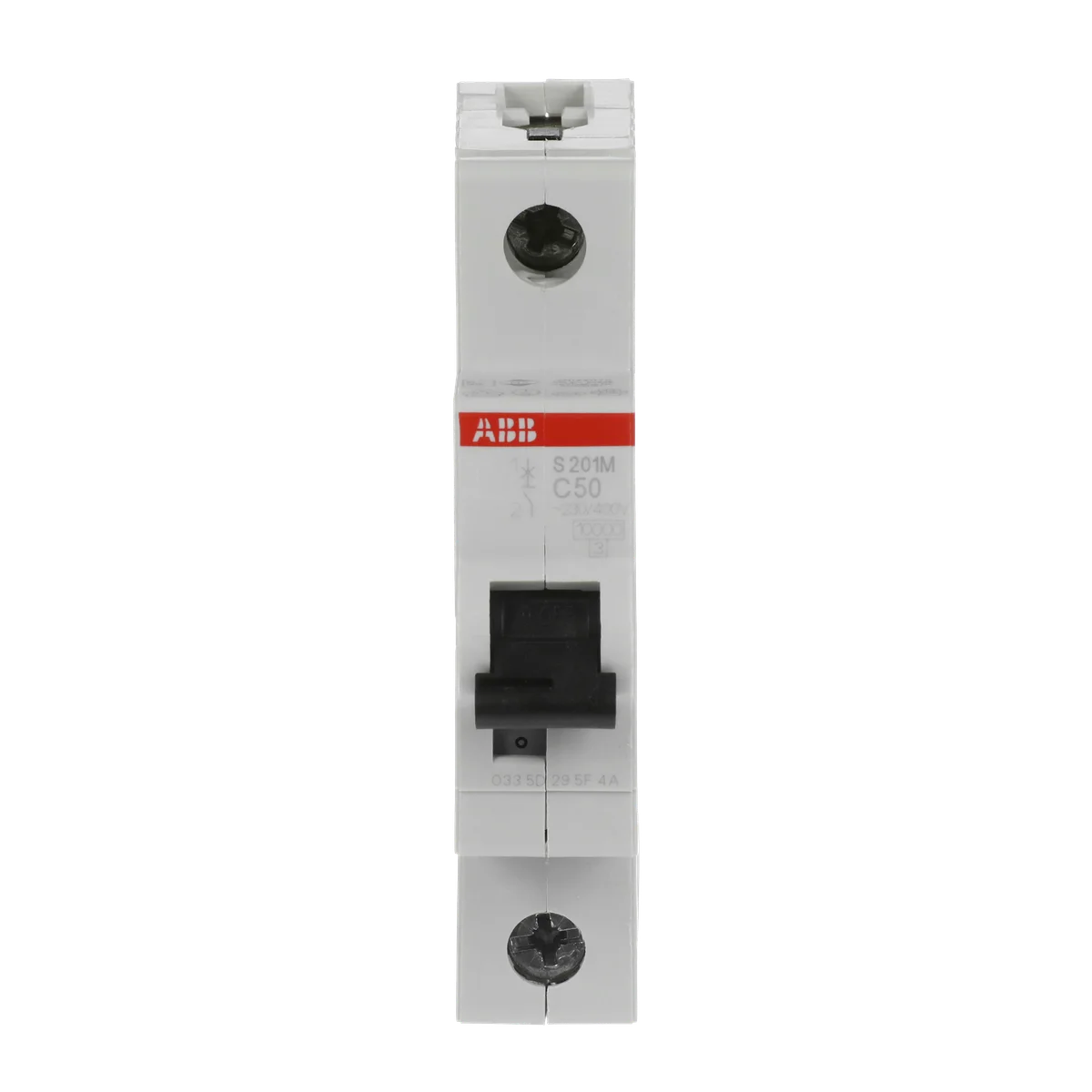

ABB 2CDS271001R0504 S201M-C50 1P 50A 10kA C-Curve Miniature Circuit Breaker

The ABB S201M-C50 (SKU: 2CDS271001R0504) is a 1-pole, 50 A, 10 kA breaking capacity miniature circuit breaker from the S200M series, designed for reliable overcurrent and short-circuit protection in industrial control panels and distribution boards operating at 230/400 V AC. The S201M-C50 features a C-curve tripping characteristic, making it ideal for loads with moderate inrush currents such as motors, transformers, and general industrial equipment.

Technical Specifications

Certifications & Standards

• IEC/EN 60898-1: Miniature circuit breakers for overcurrent protection in household and similar installations
• IEC/EN 60947-2: Low-voltage switchgear and controlgear — circuit breakers (industrial)
• IEC 60898-1: International standard for overcurrent circuit breaker performance
• EN 60898-1: European harmonised standard for miniature circuit breakers
• IEC/EN 60898: General compliance with IEC and EN 60898 family standards
• IEC/EN60898: Combined IEC/EN designation confirming dual-market compliance
• IEC 60068-2: Environmental testing standard for robustness under climatic and mechanical conditions
• EN 60898: European standard for circuit breakers in residential and commercial applications
• EN 60947-2: European low-voltage switchgear standard for industrial circuit breakers
• EN45555: General methods for assessing the ability of energy-related products to be repaired and upgraded
• EN60664: Insulation coordination for equipment within low-voltage systems
• EN60898: European miniature circuit breaker performance standard
• EN60947: Low-voltage switchgear and controlgear — general rules
• UL 1077: Supplementary protectors for use in electrical equipment (USA)
• UL1077: UL recognition for supplementary overcurrent protection devices
• CSA: Canadian Standards Association approval for North American markets
• RoHS: Restriction of Hazardous Substances — compliant for EU markets
• REACH: EU chemical safety regulation compliance
• WEEE: Waste Electrical and Electronic Equipment directive compliance
• CE: European Conformity marking for sale throughout the European Economic Area
• UKCA: UK Conformity Assessed marking for sale in Great Britain post-Brexit

Applications & Use Cases

• Overcurrent and short-circuit protection in industrial control panels
• Distribution board protection in commercial and industrial installations
• Protection of motor branch circuits with moderate inrush (C-curve characteristic)
li>
• Transformer secondary circuit protection
• Machine building and OEM panel assemblies requiring compact 17.5 mm wide DIN-rail mounted protection
