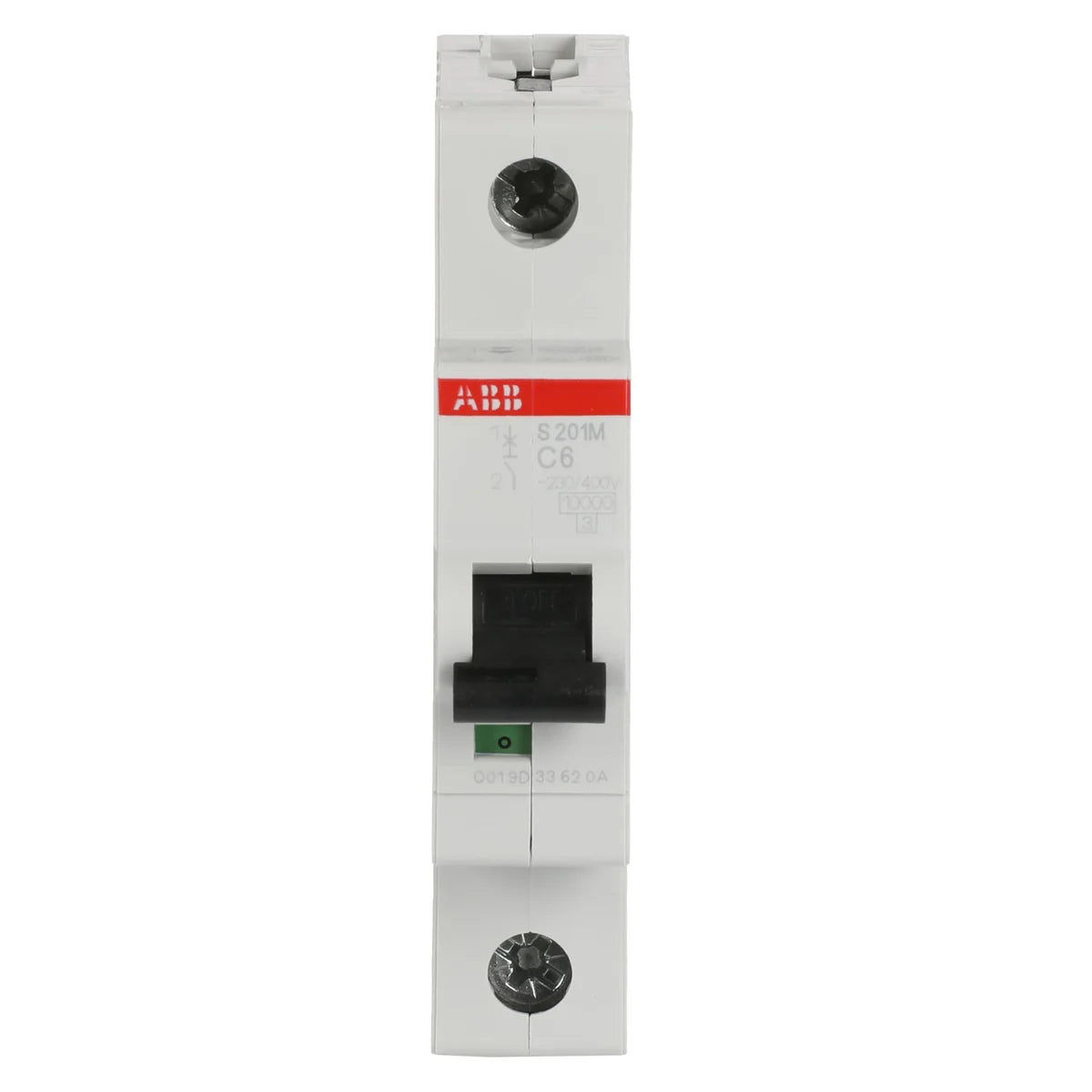

ABB 2CDS271001R0064 S201M-C6 1P 6A 10kA C-Curve 230/400V Miniature Circuit Breaker MCB

The ABB S201M-C6 (SKU: 2CDS271001R0064) is a high-performance 1-pole miniature circuit breaker from the S200M series, rated at 6A with a 10 kA breaking capacity at 230/400V AC and a C-curve tripping characteristic. Designed for reliable overcurrent and short-circuit protection in residential, commercial, and industrial installations, the S201M-C6 fits standard DIN rail enclosures with its compact 17.5 mm wide profile — making it ideal for space-constrained distribution boards and control panels.

Technical Specifications

Certifications & Standards

• IEC/EN 60898-1: Household and similar installations — circuit breakers for overcurrent protection
• IEC/EN 60947-2: Low-voltage switchgear and controlgear — circuit breakers (industrial)
• IEC 60898-1: International standard for MCBs in household/similar installations
• EN 60898-1: European adoption of IEC 60898-1 for MCB performance requirements
• IEC/EN 60898: General MCB compliance across AC and combined AC/DC versions
• IEC/EN60898: Equivalent combined IEC/EN designation for MCB standard
• IEC 60068-2: Environmental testing standard for robustness and reliability
• EN 60898: European standard for circuit breakers — household and similar
• EN 60947-2: European standard for industrial low-voltage circuit breakers
• EN45555: General methods for the assessment of the ability of electrical products to be re-used, recycled, and recovered
• EN60664: Insulation coordination for equipment within low-voltage systems
• EN60898: European MCB performance and safety standard
• EN60947: Low-voltage switchgear and controlgear — general rules
• UL1077: Standard for supplementary protectors for use in electrical equipment (USA)
• CSA: Canadian Standards Association approval for North American markets
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Compliant with EU REACH regulation on chemical substances (SVHC)
• WEEE: Waste Electrical and Electronic Equipment Directive compliance
• CE: European Conformity marking — meets EU safety, health, and environmental requirements
• UKCA: UK Conformity Assessed marking — compliant for Great Britain market post-Brexit

Applications & Use Cases

• Final circuit protection in residential distribution boards and consumer units
• Commercial building electrical panels requiring compact, high-breaking-capacity MCBs
• Industrial control panels and machine builder applications (OEM)
• Protection of lighting circuits, socket outlet circuits, and small motor loads
• DIN rail installations in automation cabinets where the 17.5 mm slim profile saves space

Frequently Asked Questions

Q: What is the tripping curve of the ABB S201M-C6?
A: The S201M-C6 uses a C-curve (Type C) characteristic, providing magnetic instantaneous tripping at 5–10× rated current. This suits circuits with moderate inrush currents such as lighting and small motors.

Q: Is the ABB 2CDS271001R0064 suitable for industrial use?
A: Yes. The S201M-C6 is dual-certified to both IEC/EN 60898-1 (domestic) and IEC/EN 60947-2 (industrial), making it suitable across residential, commercial, and industrial applications.

Q: Can I use this MCB with ABB auxiliary contacts or alarm contacts?
A: The S200M series supports ABB accessory add-ons. Please verify accessory compatibility with the ABB S200M series accessory guide for your specific configuration.

Q: What DIN rail width does the S201M-C6 occupy?
A: The S201M-C6 is 17.5 mm wide, occupying a single module on a standard 35 mm DIN rail.
