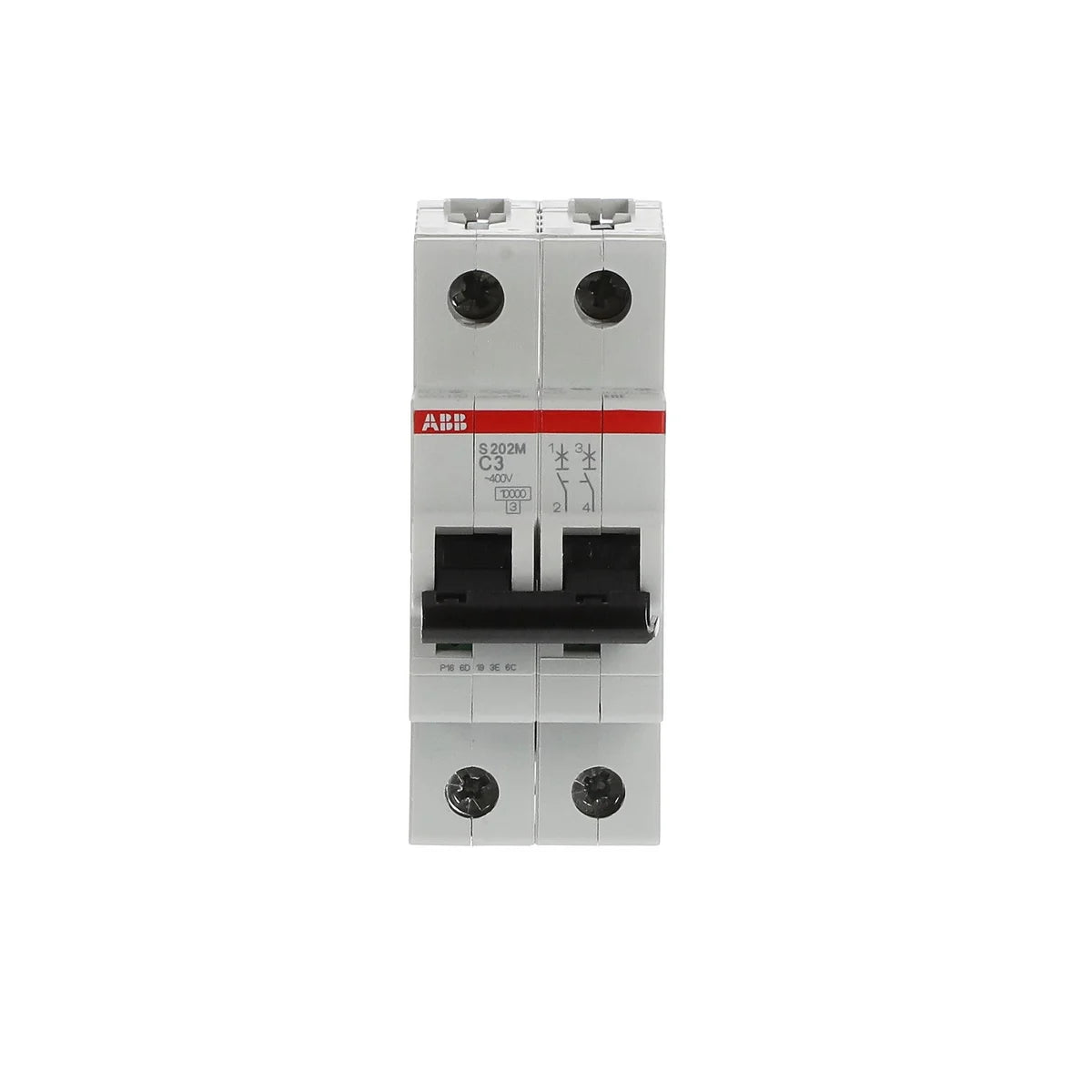

ABB 2CDS272001R0034 S202M-C3 2P 3A 25kA Type C Miniature Circuit Breaker
Other ratings in ABB S200
All 9 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 3 | 2CDS272001R0034This part | In stock | $36.51 | |
| 10 | 2CDS272001R0104 | In stock | $27.06 | |
| 16 | 2CDS272001R0164 | In stock | $27.06 | |
| 20 | 2CDS272001R0204 | In stock | $27.06 | |
| 25 | 2CDS272001R0254 | In stock | $27.06 |
Description
About the S202M-C3
About the S202M-C3
The ABB S202M-C3 (SKU: 2CDS272001R0034) is a high-performance 2-pole miniature circuit breaker from the S200M series, rated at 3 A with a Type C trip curve and an exceptional breaking capacity of 25 kA at 230 V AC. Designed for demanding industrial and commercial installations, the S202M-C3 delivers reliable overcurrent and short-circuit protection on standard DIN rail systems, making it the preferred MCB for engineers requiring superior fault-clearing performance in compact modular form.
Applications & Use Cases
- Industrial Control Panels: The S202M-C3 is ideally suited for protecting motor feeders, control circuits, and inductive loads where Type C trip characteristics are required to ride through high inrush currents without nuisance tripping.
- Commercial Electrical Installations: Use this 2-pole DIN rail MCB to protect lighting circuits, HVAC equipment, and general distribution boards in commercial buildings requiring robust short-circuit protection.
- Distribution Boards & Switchgear: The S200M series high breaking capacity of 25 kA makes the S202M-C3 suitable for use close to transformer secondaries and bus bars where fault energy levels are elevated.
- Machine Building & OEM Equipment: With its compact modular footprint and superior fault-clearing capability, the S202M-C3 is a standard choice for machine builders specifying IEC-compliant circuit protection.
Frequently Asked Questions
- What is the difference between the S202M-C3 and standard S200 series breakers?
- The S200M series offers a significantly higher breaking capacity (25 kA at 230 V AC) compared to standard S200 models, making it the preferred choice for installations with higher prospective short-circuit currents.
- What does the Type C trip curve mean for the S202M-C3?
- A Type C trip curve means the breaker will trip instantaneously on faults between 5× and 10× the rated current (15–30 A for this 3 A unit). This characteristic is ideal for inductive and motor loads that exhibit high inrush currents at startup.
- Is the ABB S202M-C3 suitable for DIN rail mounting?
- Yes. The S202M-C3 is designed for standard 35 mm DIN rail installation, enabling fast and tool-free mounting in modular distribution boards and control panels.
- What is the rated current of the S202M-C3?
- The S202M-C3 carries a rated current of 3 A, making it appropriate for low-current branch circuit protection in both industrial and commercial applications.
Specification
Full specification
Technical 20
| Dielectric Test Voltage | 50 / 60 Hz - 1 min 2 kV |
|---|---|
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 25 kA, (400 V AC) 15 kA, (440 V AC) 15 kA, (230 V) 25 kA, (400 V) 15 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 7.5 kA |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | Red ON / Green OFF |
| Energy Limiting Class | 3 |
| Electrical Endurance | 20000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Protected Poles | 2 |
| Number of Poles | 2P |
| Tightening Torque | 2.8 N·m |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Black, Sealable |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Connecting Capacity | Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm² |
| Installation Size | acc. to DIN 43880 1 |
| Terminal Type | Screw Terminals |
| Actuator Type | Toggle |
Electrical 12
| Tripping Characteristic | C |
|---|---|
| Rated Operational Voltage | acc. to IEC 60898-1 400 V AC, acc. to IEC 60947-2 440 V AC |
| Operational Voltage | Maximum (Incl. Tolerance) 125 V DC, Maximum (Incl. Tolerance) 440 V AC, Minimum 12 V AC, Minimum 12 V DC |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV |
| Input Voltage Type | AC/DC |
| Rated Current (In) | 3 A |
| Rated Short-Circuit Capacity | (AC) 10 kA, (230 V AC) 10 kA |
| Frequency (f) | 50 Hz |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | 2.6 W, at Rated Operating Conditions per Pole 1.3 W |
| Overvoltage Category | III |
Design 1
| Housing Material | Insulation Group II, RAL 7035 |
|---|
Show all 82 specifications ↓ Show less ↑49 more values in Identification, Technical UL/CSA, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.
Identification 12
| Part number | 2CDS272001R0034 |
|---|---|
| Type designation | S202M-C3 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4016779550246 |
| ETIM class | EC000042 |
| eCl@ss | 27141901 |
| Package Level 1 Units | carton 5 piece |
| Package Level 1 Gross Weight | 1.16 kg |
| E-Number (Sweden) | 2101221 |
Technical UL/CSA 4
| Maximum Operating Voltage UL/CSA | 125 V DC, 480Y/277 V AC |
|---|---|
| Interrupting Rating acc. to UL1077 | (125 V DC) 10 kA, (277 V AC) 6 kA, (480Y / 277 V AC) 6 kA |
| Connecting Capacity UL/CSA | Busbar 14-8 AWG, Conductor 14-4 AWG |
| Tightening Torque UL/CSA | 18 in·lb |
Material Compliance 6
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|---|
| RoHS Date | 20260312 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260312 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
Environmental 7
| Ambient Air Temperature | Operation -25 ... +55 °C, Storage -40 ... +70 °C |
|---|---|
| Reference Ambient Air Temperature | 30 °C |
| Degree of Protection | IP20, IP40, Enclosure with Cover IP40 |
| Pollution Degree | 3 |
| Environmental Conditions | 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 % |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
Dimensions 7
| Width in Number of Modular Spacings | 2 |
|---|---|
| Product Net Width | 35 mm |
| Product Net Height | 88 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.224 kg |
| Pole Net Weight | 0.125 kg |
| Built-In Depth (t2) | 69 mm |
Engineering 1
| EPLAN Data | 9AAC211156_EPLAN |
|---|
Installation 2
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
|---|---|
| Mounting Position | any |
External Classifications and Standards 6
| ETIM 10 | EC000042 - Miniature circuit breaker (MCB) |
|---|---|
| UNSPSC | 39121603 |
| eClass | V11.0 : 27141901 |
| Standards | IEC/EN 60898-1, CSA 22.2 No. 235, IEC/EN 60947-2, UL 1077 |
| Certification Agency | EN, IEC |
| Standardization Body | EN, IEC |
Logistics 4
| Shipping weight | 1.3 kg |
|---|---|
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
