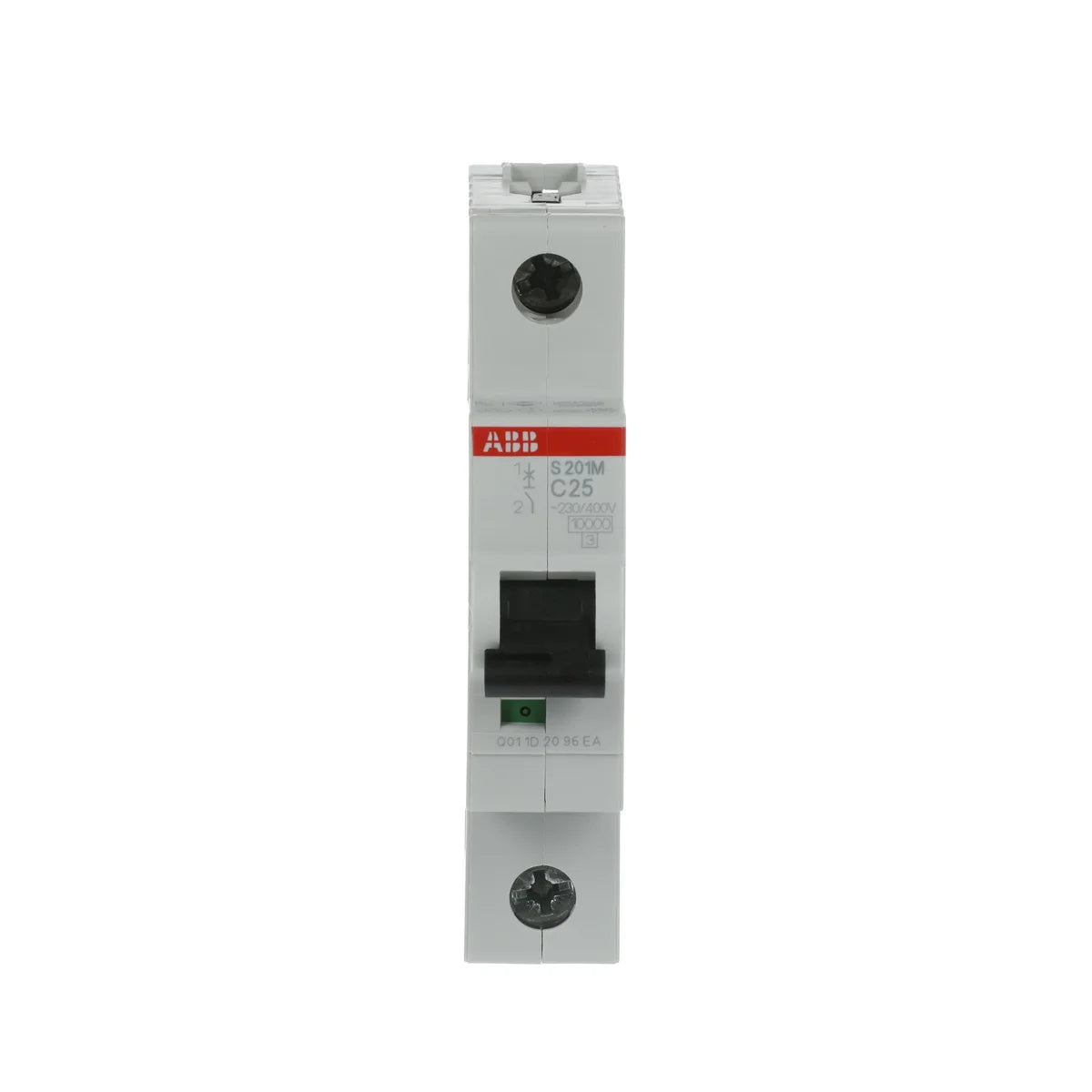

ABB 2CDS271001R0254 S201M-C25 1P 25A 10kA C-Curve 230/400V AC Miniature Circuit Breaker

The ABB S201M-C25 miniature circuit breaker (SKU: 2CDS271001R0254) is a high-performance 1-pole MCB rated at 25A with a breaking capacity of 10kA at 230/400V AC, designed for reliable overcurrent and short-circuit protection in industrial and commercial control panels. Part of the S200M series, the S201M-C25 features a C-curve tripping characteristic suited for loads with moderate inrush currents such as motors, transformers, and general distribution circuits. Its compact 17.5mm width makes it ideal for space-critical DIN rail installations.

Technical Specifications

Certifications & Standards

• IEC/EN 60898-1: International/European standard for household and similar circuit breakers
• IEC 60898-1: IEC standard for circuit breakers for overcurrent protection
• EN 60898-1: European harmonized standard for miniature circuit breakers
• IEC/EN 60947-2: Industrial low-voltage switchgear and controlgear — circuit breakers
• EN 60947-2: European standard for industrial circuit breakers
• IEC/EN 60898: General compliance with IEC/EN circuit breaker family standards
• EN 60898: European MCB compliance standard
• IEC 60068-2: Environmental testing standard for robustness and durability
• EN 60664: Insulation coordination for equipment within low-voltage systems
• EN 60947: Low-voltage switchgear and controlgear family standard
• EN 45555: General methods for the assessment of the lifetime of energy-related products
• UL 1077: UL standard for supplementary protectors for use in electrical equipment
• CSA: Canadian Standards Association approval for North American markets
• CE: European conformity marking for market access in the EEA
• UKCA: UK Conformity Assessed marking for the Great Britain market
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Compliant with EU REACH regulation on chemical substances
• WEEE: Waste Electrical and Electronic Equipment Directive compliant

Applications & Use Cases

• Overcurrent and short-circuit protection in residential, commercial, and industrial distribution boards
• Control panel protection for automation systems and PLC cabinets
• Branch circuit protection for motors, transformers, and resistive loads (C-curve)
• DIN rail installations in compact enclosures where 17.5mm width is essential
• Industrial machinery and manufacturing equipment protection
