ABB 2CDS271001R0024 S201M-C2 1P 2A 10kA C-Curve Miniature Circuit Breaker (MCB)

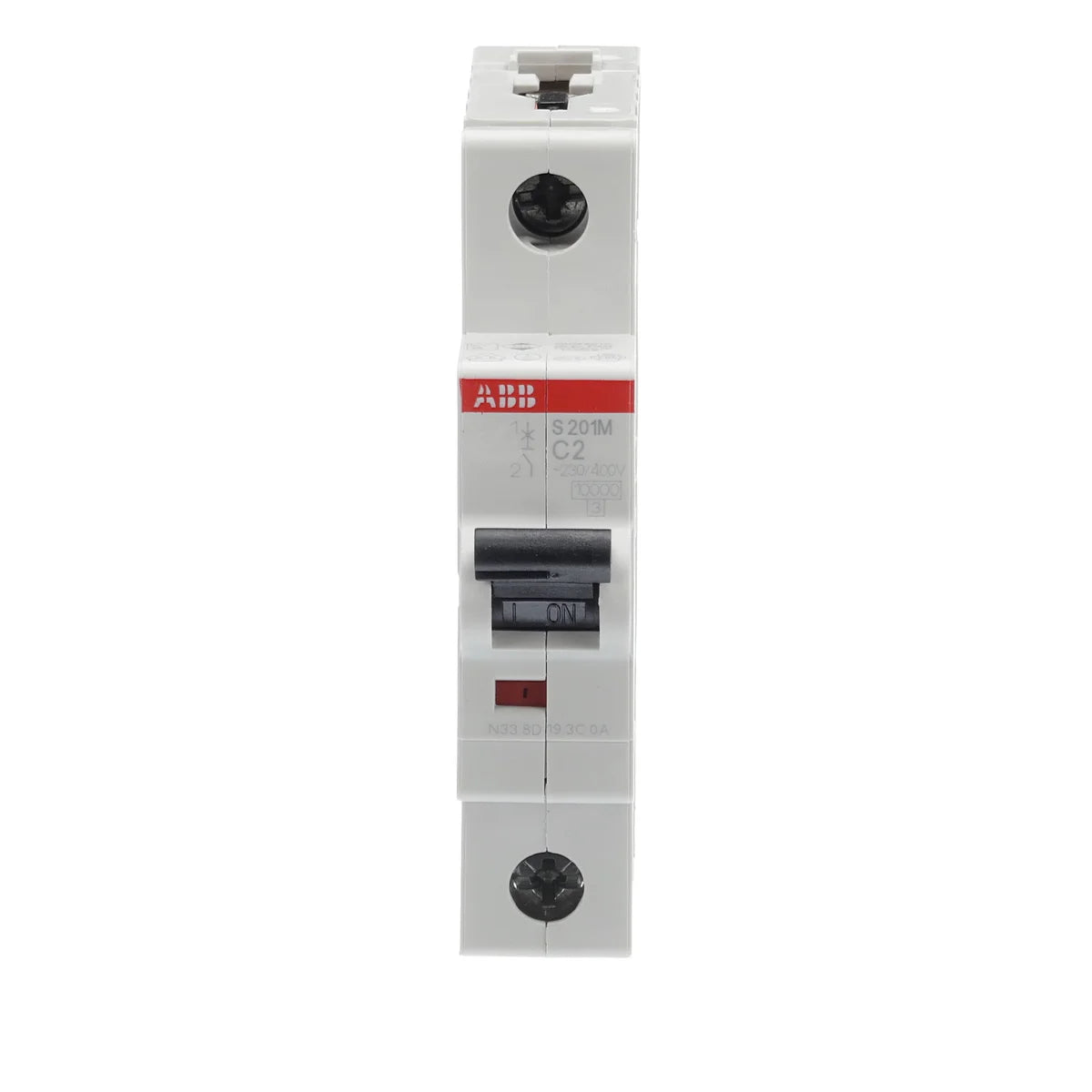

The ABB S201M-C2 miniature circuit breaker (MCB), catalog number S201M-C2 (SKU: 2CDS271001R0024), is a 1-pole, 2A, 10kA breaking capacity C-curve device from the S200M series, designed for reliable overcurrent and short-circuit protection in residential, commercial, and industrial control panel applications at 230/400V AC. Compact at just 17.5mm wide, it delivers high performance in a DIN-rail-mountable format, making it ideal for space-constrained distribution boards and automation enclosures.

Technical Specifications

Certifications & Standards

• IEC/EN 60898-1: International and European standard for circuit breakers used in household and similar installations
• IEC 60898-1: IEC standard for overcurrent protection in AC circuits
• EN 60898-1: European harmonised standard for miniature circuit breakers
• IEC/EN60898: Combined IEC/EN conformity for MCB performance
• IEC/EN 60947-2: International/European standard for low-voltage switchgear and controlgear — circuit breakers
• EN60947-2: European standard for low-voltage circuit breakers
• EN60947: European standard series for low-voltage switchgear and controlgear
• IEC 60068-2: Environmental testing standard for electrical and electronic equipment
• EN45555: General methods for the assessment of the ability of electrical and electronic products for reuse, recycling and recovery
• EN60664: Insulation coordination for equipment within low-voltage systems
• UL 1077: UL standard for supplementary protectors for use in electrical equipment
• CSA: Canadian Standards Association approval for electrical safety
• CE: European Conformity marking — meets EU safety, health, and environmental requirements
• UKCA: UK Conformity Assessed marking — meets UK regulatory requirements post-Brexit
• RoHS: Restriction of Hazardous Substances — free from restricted hazardous materials
• REACH: Compliance with EU regulation on chemicals and their safe use
• WEEE: Waste Electrical and Electronic Equipment Directive compliance for responsible disposal
