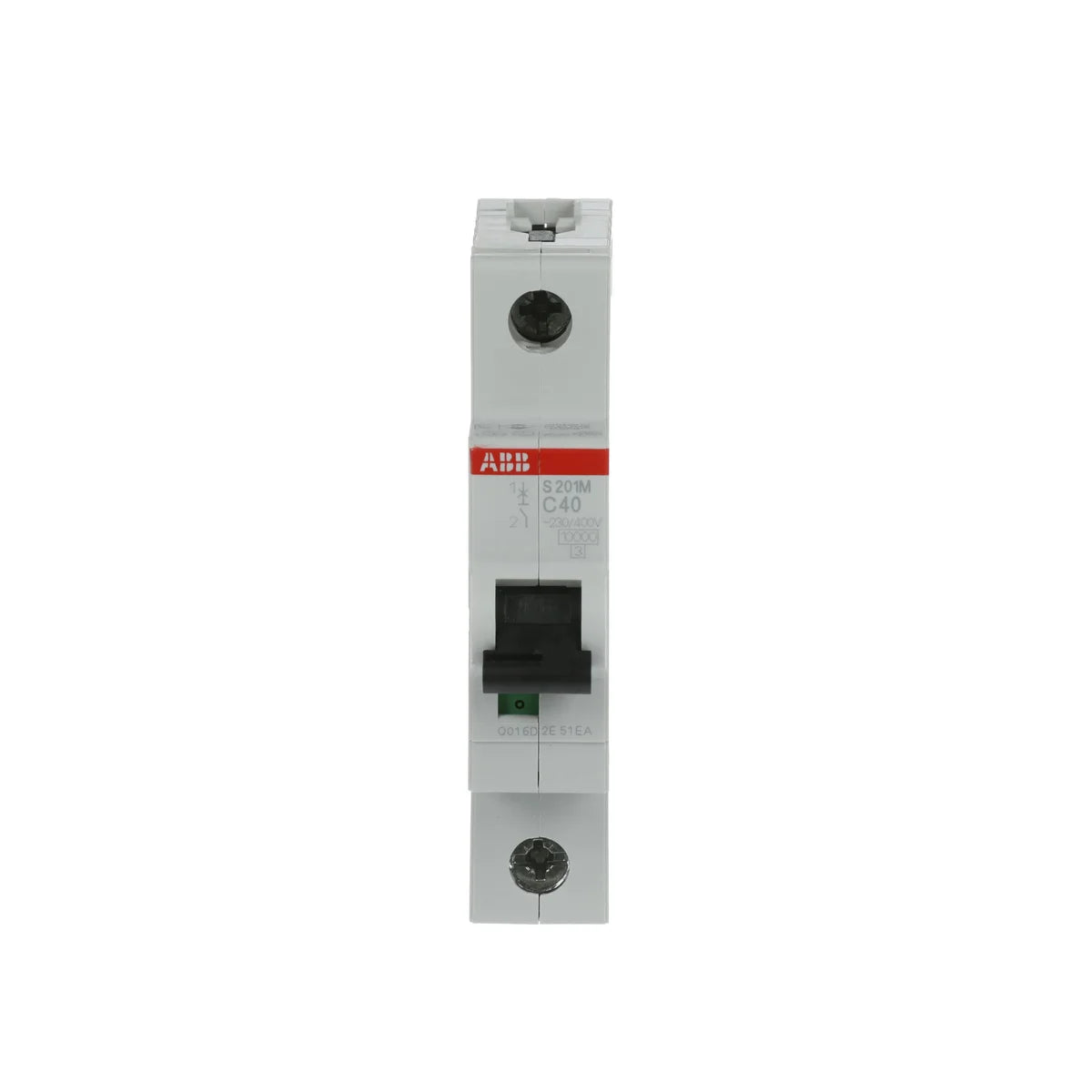

ABB 2CDS271001R0404 S201M-C40 1P 40A 10kA C-Curve 230/400V AC Miniature Circuit Breaker

The ABB S201M-C40 miniature circuit breaker (SKU: 2CDS271001R0404) is a high-performance 1-pole MCB from the S200M series, rated at 40A with a C-curve tripping characteristic and a 10kA breaking capacity at 230/400V AC. Designed for industrial and commercial control panel applications, the S201M-C40 provides reliable overcurrent and short-circuit protection in a compact 17.5mm-wide DIN rail-mountable format, weighing just 0.12 kg.

Technical Specifications

Certifications & Standards

• IEC/EN 60898-1: International and European standard for household and similar circuit breakers for overcurrent protection
• IEC/EN 60947-2: International and European standard for low-voltage switchgear — circuit breakers
• IEC 60898-1: IEC standard for miniature circuit breakers for overcurrent protection in household and similar installations
• EN 60898-1: European harmonised standard for circuit breakers for overcurrent protection
• IEC/EN 60898: Combined IEC/EN compliance for circuit breaker safety performance
• IEC/EN60898: Equivalent consolidated reference for the IEC/EN 60898 standard family
• IEC60068-2: Environmental testing standard for electrical and electronic equipment
• EN 60898: European standard for circuit breakers used in household and similar installations
• EN 60947-2: European standard for low-voltage switchgear and controlgear — circuit breakers
• EN45555: European standard addressing the general methods for the assessment of the ability of energy-related products to be repaired and recycled
• EN60664: Insulation coordination for equipment within low-voltage systems
• EN60898: European standard for circuit breaker performance in residential and commercial applications
• EN60947: European low-voltage switchgear and controlgear standards family
• UL 1077: UL standard for supplementary protectors for use in electrical equipment (North America)
• UL1077: Consolidated UL reference for supplementary overcurrent protection devices
• CSA: Canadian Standards Association certification for electrical safety compliance
• CE: European Conformity marking confirming compliance with applicable EU directives
• UKCA: UK Conformity Assessed marking for products placed on the Great Britain market
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Compliance with EU REACH regulation on chemical substance safety
• WEEE: Compliance with the Waste Electrical and Electronic Equipment Directive for responsible disposal
