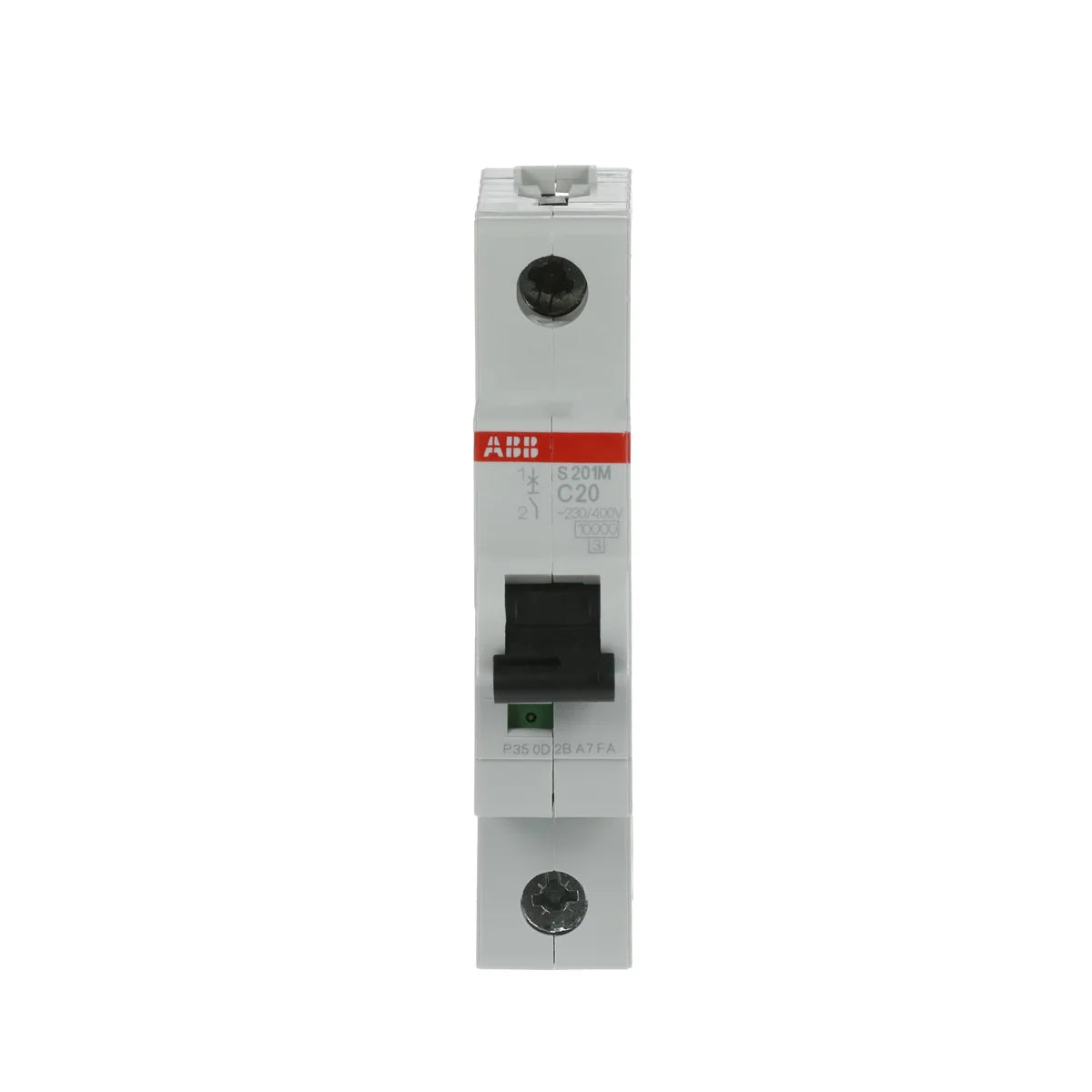

The ABB S201M-C20 miniature circuit breaker (SKU: 2CDS271001R0204) is a 1-pole, 20A, C-curve MCB from the S200M series, rated for 230/400V AC with a breaking capacity of 10kA at 400V AC per IEC/EN 60898-1. Designed for overcurrent and short-circuit protection in residential, commercial, and light industrial distribution panels, the S201M-C20 offers reliable performance in a compact 17.5mm wide DIN rail mount form factor. Its enhanced breaking capacity makes it well-suited for demanding installations where higher fault levels must be safely interrupted.
What is the difference between the S201M-C20 and the standard S201 series?
The S200M series offers an enhanced breaking capacity of 10kA at 400V AC compared to the 6kA standard of the base S200 series, making it suitable for installations with higher prospective fault currents.
Is the ABB S201M-C20 compatible with ABB auxiliary contacts and motor operators?
Yes. The S200M series is designed to accept ABB S200 range accessories including auxiliary contacts, alarm contacts, and remote motor operators, ensuring system flexibility in automation and energy management panels.
What does the C-curve trip characteristic mean?
A C-curve MCB trips magnetically at 5–10 times the rated current, making it ideal for protecting circuits with moderate inrush loads such as lighting, small motors, and general-purpose socket outlets.
| Dielectric Test Voltage | 50 / 60 Hz - 1 min 2 kV |
|---|---|
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (133 V AC) 25 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (133 V AC) 18.8 kA, (230 V AC) 7.5 kA |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | Red ON / Green OFF |
| Energy Limiting Class | 3 |
| Electrical Endurance | 20000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Protected Poles | 1 |
| Number of Poles | 1P |
| Tightening Torque | 2.8 N·m |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Black, Sealable |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Connecting Capacity | Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm² |
| Installation Size | acc. to DIN 43880 1 |
| Terminal Type | Screw Terminals |
| Actuator Type | Toggle |
| Tripping Characteristic | C |
|---|---|
| Rated Operational Voltage | acc. to IEC 60898-1 230 V AC |
| Operational Voltage | Maximum (Incl. Tolerance) 253 V AC, Maximum (Incl. Tolerance) 72 V DC, Minimum 12 V AC, Minimum 12 V DC |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV |
| Input Voltage Type | AC/DC |
| Rated Current (In) | 20 A |
| Rated Short-Circuit Capacity | (AC) 10 kA, (230 / 400 V AC) 10 kA, (230 V AC) 6 kA |
| Frequency (f) | 50 Hz |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | 2.5 W, at Rated Operating Conditions per Pole 2.5 W |
| Overvoltage Category | III |
| Housing Material | Insulation Group II, RAL 7035 |
|---|
| Part number | 2CDS271001R0204 |
|---|---|
| Type designation | S201M-C20 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4016779550017 |
| ETIM class | EC000042 |
| eCl@ss | 27141901 |
| Package Level 1 Units | carton 10 piece |
| Package Level 1 Gross Weight | 1.19 kg |
| E-Number (Sweden) | 2101211 |
| Maximum Operating Voltage UL/CSA | 60 V DC, 480Y/277 V AC |
|---|---|
| Interrupting Rating acc. to UL1077 | (277 V AC) 6 kA, (480Y / 277 V AC) 6 kA, (60 V DC) 10 kA |
| Connecting Capacity UL/CSA | Busbar 14-8 AWG, Conductor 14-4 AWG |
| Tightening Torque UL/CSA | 18 in·lb |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|---|
| RoHS Date | 20260312 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260312 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Ambient Air Temperature | Operation -25 ... +55 °C, Storage -40 ... +70 °C |
|---|---|
| Reference Ambient Air Temperature | 30 °C |
| Degree of Protection | IP20, IP40, Enclosure with Cover IP40 |
| Pollution Degree | 3 |
| Environmental Conditions | 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 % |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Width in Number of Modular Spacings | 1 |
|---|---|
| Product Net Width | 17.5 mm |
| Product Net Height | 88 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.115 kg |
| Pole Net Weight | 0.125 kg |
| Built-In Depth (t2) | 69 mm |
| EPLAN Data | 9AAC211156_EPLAN |
|---|
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
|---|---|
| Mounting Position | any |
| ETIM 10 | EC000042 - Miniature circuit breaker (MCB) |
|---|---|
| UNSPSC | 39121603 |
| eClass | V11.0 : 27141901 |
| Standards | IEC/EN 60898-1, CSA 22.2 No. 235, IEC/EN 60947-2, UL 1077 |
| Certification Agency | EN, IEC |
| Standardization Body | EN, IEC |
| Shipping weight | 1.295 kg |
|---|---|
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
