Part number
2CDS251001R0324
Model no
S201-C32
$7.44 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

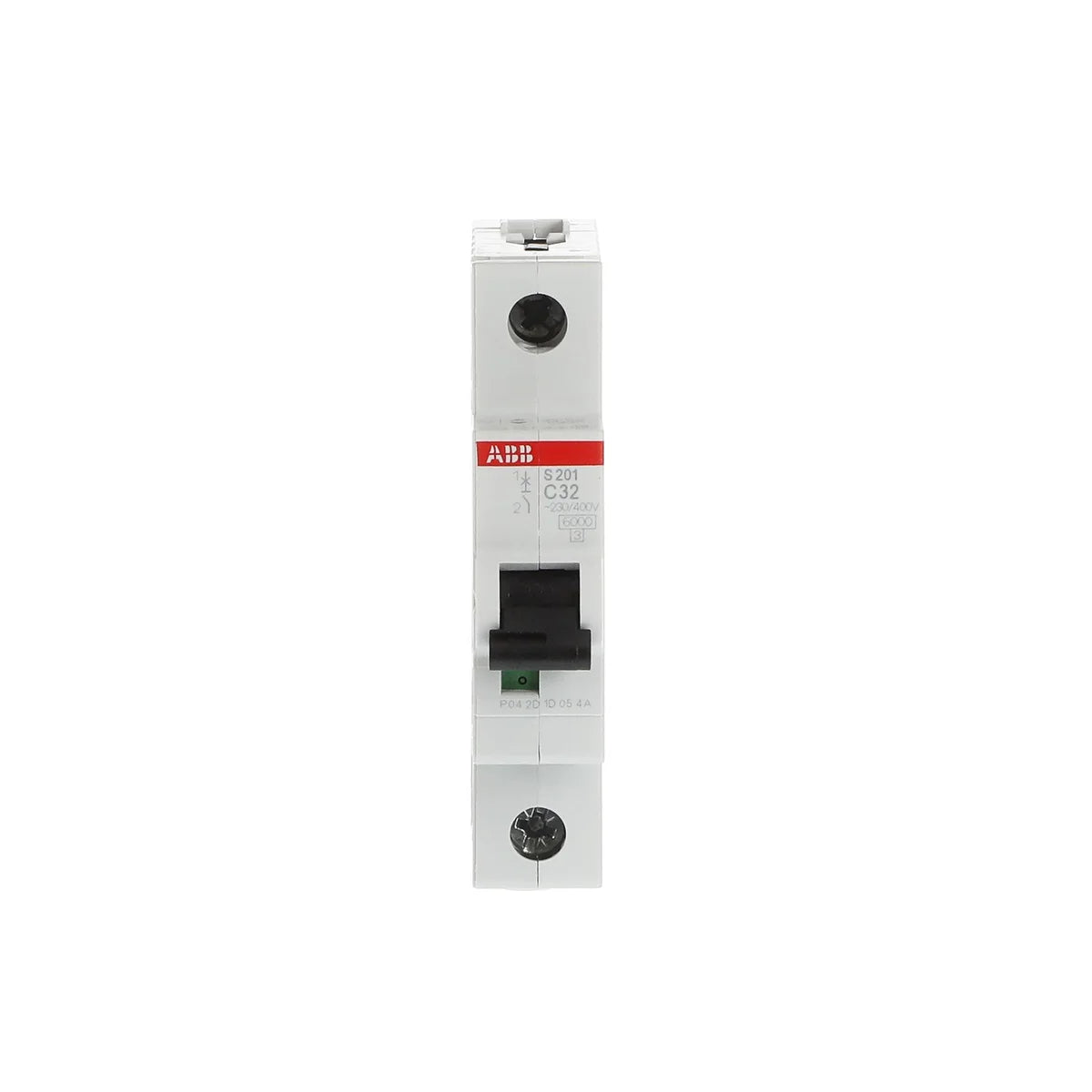

ABB 2CDS251001R0324 S201-C32 1P 32A 6kA C-Curve 230/400V AC DIN-Rail Miniature Circuit Breaker

Rated current
32 A
Rated operational voltage
230–400 V AC
Poles
1P
Breaking capacity
(133) 20 kA
EAN
4016779464703
Other ratings in ABB S200 All 12 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
20 2CDS251001R0204 In stock $5.95
25 2CDS251001R0254 In stock $5.95
32 2CDS251001R0324This part In stock $7.44
50 2CDS251001R0504 In stock $8.91
63 2CDS251001R0634 In stock $10.10
Description

About the S201-C32

The ABB S201-C32 miniature circuit breaker (MCB), SKU 2CDS251001R0324, is a 1-pole, 32A, C-curve device from the S200 series rated at 230/400V AC with a 6kA breaking capacity. Designed for reliable overload and short-circuit protection in residential, commercial, and industrial control panels, the S201-C32 mounts on standard DIN rail and complies with IEC/EN 60898-1 and IEC/EN 60947-2 international standards. Its compact 17.5mm width makes it ideal for space-constrained distribution boards.

Certifications & Standards

  • IEC/EN 60898-1: International and European standard for household and similar circuit breakers
  • IEC/EN 60947-2: International and European standard for low-voltage switchgear — circuit breakers
  • UL 1077: UL standard for supplementary protectors for use in electrical equipment
  • IEC 60898-1: IEC standard for circuit breakers for overcurrent protection
  • EN 60898-1: European standard for circuit breakers for overcurrent protection
  • IEC 60898-1230: IEC standard variant for circuit breaker performance requirements
  • IEC 60068-2: Environmental testing standard for electrical and electronic components
  • EN 60947-2: European low-voltage switchgear standard for circuit breakers
  • EN 45555: European standard for end-of-life treatment of electrical and electronic equipment
  • EN 60664: European standard for insulation coordination for low-voltage equipment
  • CSA: Canadian Standards Association certification for North American markets
  • RoHS: Restriction of Hazardous Substances — compliant with EU directive on hazardous materials
  • REACH: EU chemical safety regulation compliance
  • WEEE: Waste Electrical and Electronic Equipment directive compliance
  • CE: Conformité Européenne — meets all applicable EU safety, health, and environmental requirements
  • UKCA: UK Conformity Assessed marking for Great Britain market

Applications & Use Cases

  • Final circuit protection in residential distribution boards
  • Commercial building electrical panels and sub-distribution boards
  • Industrial control panels and machine tool protection
  • Protection of lighting, heating, and general-purpose circuits
  • DIN-rail mounted switchgear assemblies

Frequently Asked Questions

What does the C-curve tripping characteristic mean?
The C-curve trips between 5× and 10× the rated current on magnetic short-circuit release, making the ABB S201-C32 suitable for resistive and low-inductive loads such as lighting and heating circuits.

Is the S201-C32 suitable for three-phase systems?
The S201-C32 is a single-pole (1P) device rated at 230/400V AC. It can protect individual phases in a three-phase system when used with the appropriate busbar accessories from the S200 series.

What DIN-rail width does this MCB require?
The ABB S201-C32 has a module width of 17.5 mm and mounts on standard 35 mm DIN-rail (EN 60715).

Specification

Full specification

84 values · Last verified 30 Oct 2026

Technical 21

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (133 V AC) 20 kA, (230 V AC) 10 kA, (24 V DC) 20 kA, (60 V DC) 10 kA, (230 V) 10 kA, (400 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (133 V AC) 15 kA, (230 V AC) 7.5 kA
Power Supply Connection Arbitrary
Contact Position Indication Red ON / Green OFF
Energy Limiting Class 3
Electrical Endurance 10000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 1
Number of Poles 1P
Tightening Torque 2.8 N·m
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²
Installation Size acc. to DIN 43880 1
Wire Stripping Length 12.5 mm
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 12

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 230 V AC
Operational Voltage Maximum (Incl. Tolerance) 253 V AC, Maximum (Incl. Tolerance) 72 V DC, Minimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type AC/DC
Rated Current (In) 32 A
Rated Short-Circuit Capacity (AC) 6 kA, (DC) 6 kA, (230 / 400 V AC) 6 kA
Frequency (f) 50 Hz
Rated Frequency (f) 50 / 60 Hz
Power Loss 3.7 W, at Rated Operating Conditions per Pole 3.7 W
Overvoltage Category III

Design 1

Housing Material Insulation Group II, RAL 7035
Show all 84 specifications ↓ Show less ↑50 more values in Identification, Technical UL/CSA, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.

Identification 12

Part number 2CDS251001R0324
Type designation S201-C32
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779464703
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 10 piece
Package Level 1 Gross Weight 1.24 kg
E-Number (Sweden) 2100526

Technical UL/CSA 4

Maximum Operating Voltage UL/CSA 60 V DC, 480Y/277 V AC
Interrupting Rating acc. to UL1077 (277 V AC) 6 kA, (60 V DC) 10 kA, (120 V) 10 kA
Connecting Capacity UL/CSA Busbar 18-8 AWG, Conductor 18-4 AWG
Tightening Torque UL/CSA 18 in·lb

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 7

Ambient Air Temperature Operation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature 30 °C
Degree of Protection IP20, IP40, Enclosure with Cover IP40
Pollution Degree 3
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms

Dimensions 7

Width in Number of Modular Spacings 1
Product Net Width 17.5 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.12 kg
Pole Net Weight 0.125 kg
Built-In Depth (t2) 69 mm

Engineering 1

EPLAN Data 9AAC204436_EPLAN

Installation 3

Mounting Type DIN-Rail
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any

External Classifications and Standards 6

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Certification Agency EN, IEC, UL
Standardization Body EN, IEC, UL

Logistics 4

Shipping weight 1.295 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS251001R0324

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 12 ratings in ABB S200

ABB ABB S200 series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
6 A 2CDS251001R0064 S201-C6 In stock $7.13
10 A 2CDS251001R0104 S201-C10 In stock $5.95
16 A 2CDS251001R0164 S201-C16 In stock $5.95
20 A 2CDS251001R0204 S201-C20 In stock $5.95
25 A 2CDS251001R0254 S201-C25 In stock $5.95
32 A 2CDS251001R0324 This part S201-C32 In stock $7.44
50 A 2CDS251001R0504 S201-C50 In stock $8.91
63 A 2CDS251001R0634 S201-C63 In stock $10.10
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
  • IEC/EN 60898-1
  • IEC/EN 60947-2
  • UL 1077
Quick answers

Questions about the S201-C32

What is the rated current of S201-C32?

The rated current of S201-C32 is 32 A.

Which supply voltage is S201-C32 rated for?

The rated operational voltage of S201-C32 is 230–400 V AC.

What is the HS code of S201-C32 for customs?

The tariff (HS) code on file for S201-C32 is 853620.

What is the EAN of S201-C32?

The EAN (GTIN) of S201-C32 is 4016779464703.

Where does S201-C32 ship from, and how fast?

S201-C32 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
