Part number
2CDS251001R0014
Model no
S201-C1
$8.03 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

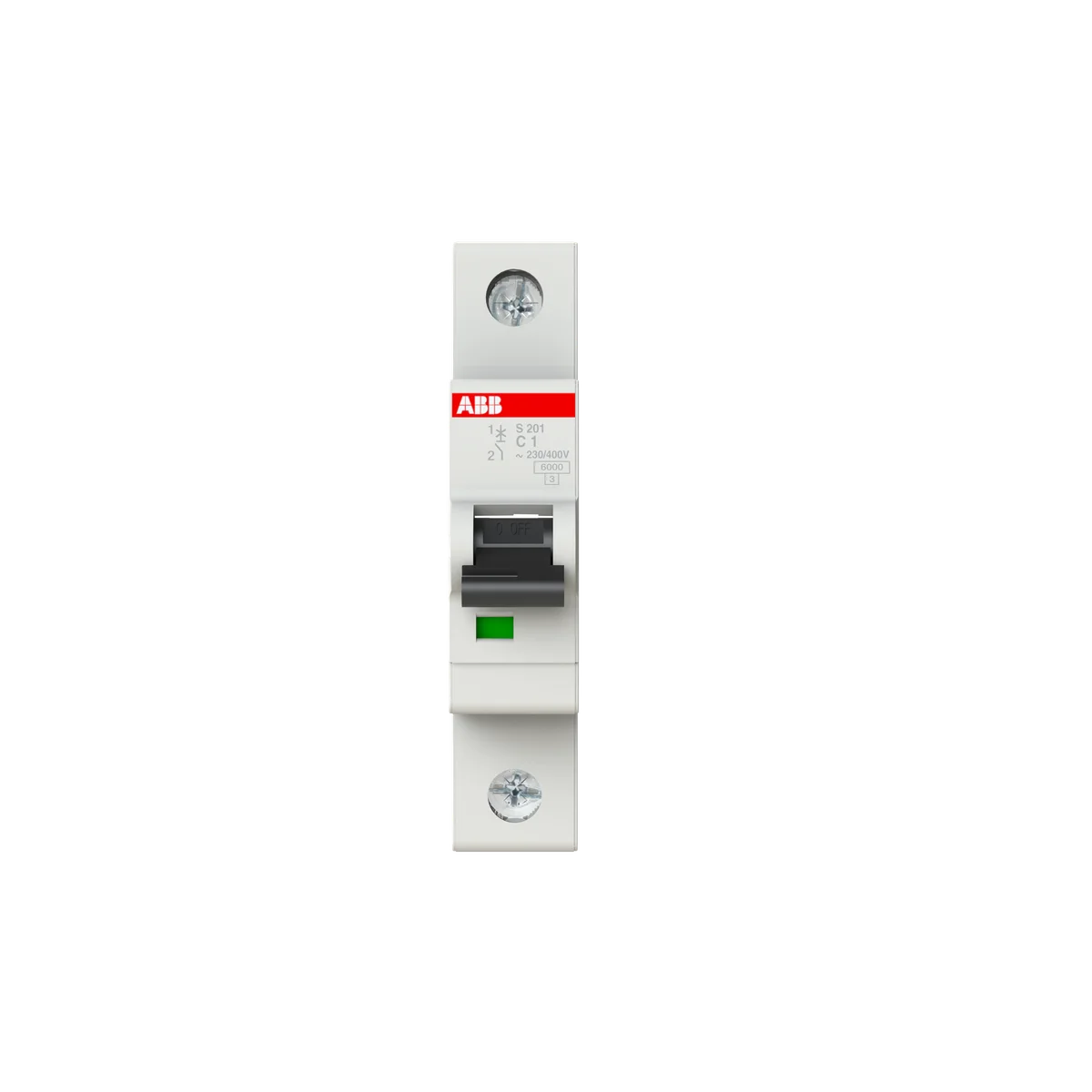

ABB 2CDS251001R0014 S201-C1 1P 1A 6kA C-Curve DIN-Rail Miniature Circuit Breaker

Rated current
1 A
Rated operational voltage
230–400 V AC
Poles
1P
Breaking capacity
(133) 20 kA
EAN
4016779523318
Other ratings in ABB S200 All 12 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
1 2CDS251001R0014This part In stock $8.03
2 2CDS251001R0024 In stock $8.03
3 2CDS251001R0034 In stock $8.03
4 2CDS251001R0044 In stock $7.13
6 2CDS251001R0064 In stock $7.13
Description

About the S201-C1

The ABB S201-C1 miniature circuit breaker (MCB), reference 2CDS251001R0014, is a 1-pole, 1A, 6kA breaking capacity C-curve breaker from the S200 series, designed for reliable overcurrent and short-circuit protection in residential, commercial, and industrial control panel applications. Rated at 230/400V AC and DIN-rail mountable, the S201-C1 delivers precise, dependable circuit protection in a compact 17.5mm wide profile. Built to IEC/EN 60898-1 and IEC/EN 60947-2 standards, this ABB S201-C1 is a trusted choice for engineers and procurement professionals worldwide.

Certifications & Standards

  • IEC/EN 60898-1: International and European standard for household and similar installations circuit breakers
  • IEC/EN 60947-2: International and European standard for low-voltage switchgear and controlgear — circuit breakers
  • UL 1077: UL standard for supplementary protectors for use in electrical equipment
  • IEC 60898-1: IEC standard for circuit breakers for overcurrent protection
  • EN 60898-1: European standard for circuit breakers for overcurrent protection
  • IEC 60898-1230: Extended IEC standard reference for circuit breaker compliance
  • IEC 60068-2: Environmental testing standard for durability and reliability
  • EN 60947-2: European standard for low-voltage circuit breakers
  • EN 45555: General methods for the assessment of the ability of energy-related products to be repaired, reused, upgraded, and recycled
  • EN 60664: Insulation coordination for equipment within low-voltage supply systems
  • CSA: Canadian Standards Association certification for North American market compliance
  • CE: European Conformity marking — meets all applicable EU directives
  • UKCA: UK Conformity Assessed marking — compliant for Great Britain market
  • RoHS: Restriction of Hazardous Substances — free from restricted hazardous materials
  • REACH: Compliant with EU REACH regulation on chemical substances
  • WEEE: Waste Electrical and Electronic Equipment directive compliance
Specification

Full specification

84 values · Last verified 30 Oct 2026

Technical 21

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (133 V AC) 20 kA, (230 V AC) 10 kA, (24 V DC) 20 kA, (60 V DC) 10 kA, (230 V) 10 kA, (400 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (133 V AC) 15 kA, (230 V AC) 7.5 kA
Power Supply Connection Arbitrary
Contact Position Indication Red ON / Green OFF
Energy Limiting Class 3
Electrical Endurance 20000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 1
Number of Poles 1P
Tightening Torque 2.8 N·m
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²
Installation Size acc. to DIN 43880 1
Wire Stripping Length 12.5 mm
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 12

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 230 V AC
Operational Voltage Maximum (Incl. Tolerance) 253 V AC, Maximum (Incl. Tolerance) 72 V DC, Minimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type AC/DC
Rated Current (In) 1 A
Rated Short-Circuit Capacity (AC) 6 kA, (DC) 6 kA, (230 / 400 V AC) 6 kA
Frequency (f) 50 Hz
Rated Frequency (f) 50 / 60 Hz
Power Loss 1.4 W, at Rated Operating Conditions per Pole 1.4 W
Overvoltage Category III

Design 1

Housing Material Insulation Group II, RAL 7035
Show all 84 specifications ↓ Show less ↑50 more values in Identification, Technical UL/CSA, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.

Identification 12

Part number 2CDS251001R0014
Type designation S201-C1
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779523318
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 10 piece
Package Level 1 Gross Weight 1.16 kg
E-Number (Sweden) 2100502

Technical UL/CSA 4

Maximum Operating Voltage UL/CSA 60 V DC, 480Y/277 V AC
Interrupting Rating acc. to UL1077 (277 V AC) 6 kA, (60 V DC) 10 kA, (120 V) 10 kA
Connecting Capacity UL/CSA Busbar 18-8 AWG, Conductor 18-4 AWG
Tightening Torque UL/CSA 18 in·lb

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 7

Ambient Air Temperature Operation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature 30 °C
Degree of Protection IP20, IP40, Enclosure with Cover IP40
Pollution Degree 3
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms

Dimensions 7

Width in Number of Modular Spacings 1
Product Net Width 17.5 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.112 kg
Pole Net Weight 0.125 kg
Built-In Depth (t2) 69 mm

Engineering 1

EPLAN Data 9AAC204436_EPLAN

Installation 3

Mounting Type DIN-Rail
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any

External Classifications and Standards 6

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Certification Agency EN, IEC, UL
Standardization Body EN, IEC, UL

Logistics 4

Shipping weight 1.295 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS251001R0014

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 12 ratings in ABB S200

ABB ABB S200 series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
1 A 2CDS251001R0014 This part S201-C1 In stock $8.03
2 A 2CDS251001R0024 S201-C2 In stock $8.03
3 A 2CDS251001R0034 S201-C3 In stock $8.03
4 A 2CDS251001R0044 S201-C4 In stock $7.13
6 A 2CDS251001R0064 S201-C6 In stock $7.13
10 A 2CDS251001R0104 S201-C10 In stock $5.95
16 A 2CDS251001R0164 S201-C16 In stock $5.95
20 A 2CDS251001R0204 S201-C20 In stock $5.95
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
  • IEC/EN 60898-1
  • IEC/EN 60947-2
  • UL 1077
Quick answers

Questions about the S201-C1

What is the rated current of S201-C1?

The rated current of S201-C1 is 1 A.

Which supply voltage is S201-C1 rated for?

The rated operational voltage of S201-C1 is 230–400 V AC.

What is the HS code of S201-C1 for customs?

The tariff (HS) code on file for S201-C1 is 853620.

What is the EAN of S201-C1?

The EAN (GTIN) of S201-C1 is 4016779523318.

Where does S201-C1 ship from, and how fast?

S201-C1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
