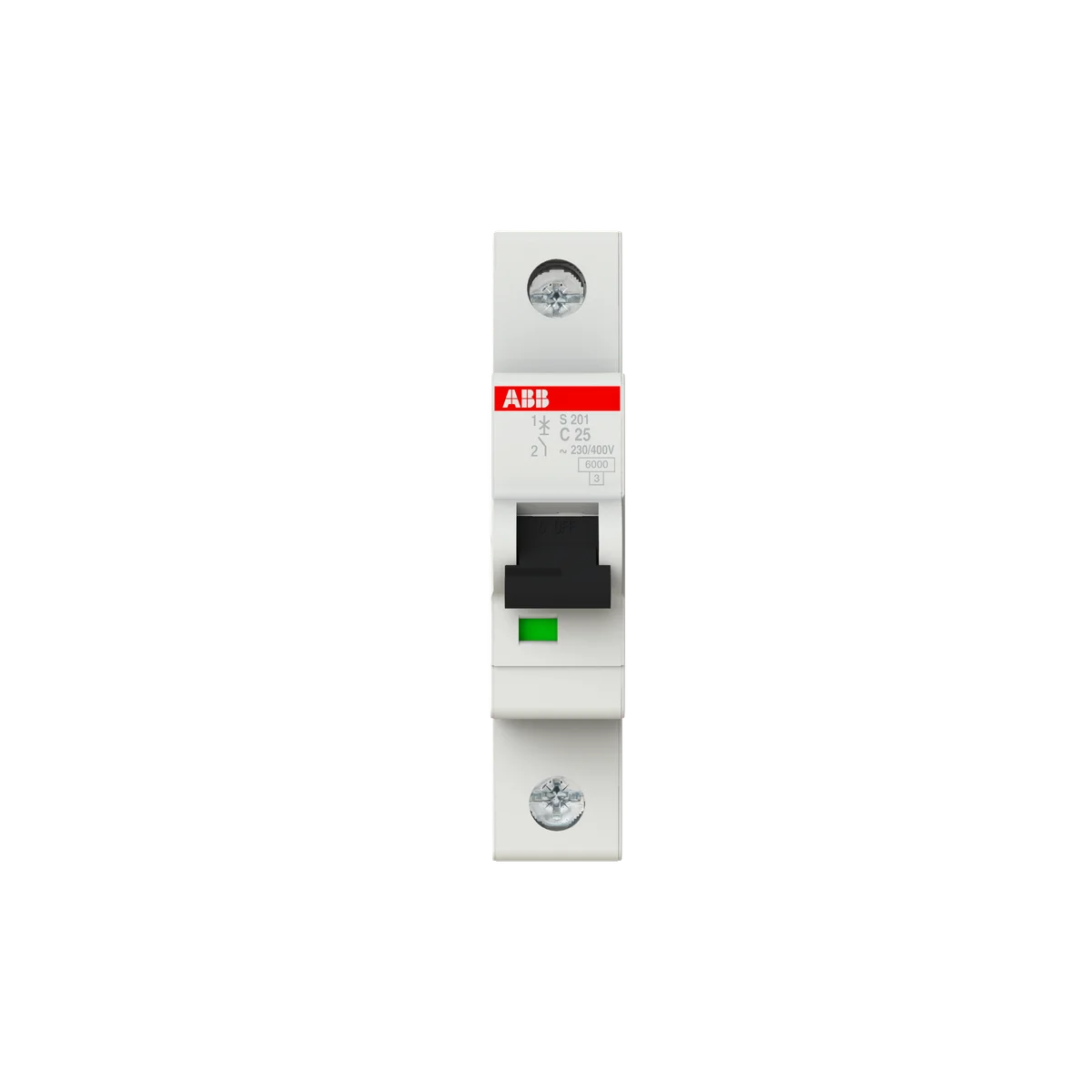

ABB 2CDS251001R0254 S201-C25 1P 25A 6kA C-Curve Miniature Circuit Breaker

The ABB S201-C25 miniature circuit breaker (SKU: 2CDS251001R0254) is a single-pole, 25 A, 6 kA breaking capacity MCB from the ABB S200 series, designed for overcurrent and short-circuit protection in residential, commercial, and light industrial distribution boards. The S201-C25 features a C-curve tripping characteristic, making it ideal for loads with moderate inrush currents such as motors, transformers, and fluorescent lighting circuits. DIN-rail mounted and rated for 230/400 V AC, it delivers reliable protection in a compact 17.5 mm wide profile.

Technical Specifications

Certifications & Standards

• IEC/EN 60898-1: Miniature circuit breakers for overcurrent protection in household and similar installations
• IEC/EN 60947-2: Low-voltage switchgear and controlgear — circuit breakers (industrial standard)
• UL 1077: Supplementary protectors for use in electrical equipment
• IEC 60898-1: International standard for miniature circuit breakers
• EN 60898-1: European harmonised standard for MCBs in household and similar installations
• IEC/EN 60898-1: Combined IEC/EN compliance for miniature circuit breakers
• IEC/EN 60947-2: Combined IEC/EN compliance for industrial circuit breakers
• IEC 60898-1230: Extended temperature range testing per IEC 60898-1
• IEC 60068-2: Environmental testing — climatic and mechanical durability
• EN 60947-2: European standard for low-voltage industrial circuit breakers
• EN 45555: General methods for assessment of the recyclability and recoverability of electrical and electronic products
• EN 60664: Insulation coordination for equipment within low-voltage supply systems
• EN 60898-1: European norm for circuit breakers for overcurrent protection
• EN 60947-2: European norm for low-voltage switchgear circuit breakers
• CSA: Canadian Standards Association approval for North American markets
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Compliance with EU REACH regulation (EC No 1907/2006) on chemical substances
• WEEE: Waste Electrical and Electronic Equipment Directive compliance
• CE: European Conformity marking — meets EU safety, health, and environmental requirements
• UKCA: UK Conformity Assessed marking for Great Britain market

Applications & Use Cases

• Residential and commercial distribution boards requiring single-pole 25 A overcurrent protection
• Protection of circuits feeding motors, transformers, and fluorescent or LED lighting with moderate inrush (C-curve)
• Industrial control panels and light automation cabinets rated up to 400 V AC
• Final circuit protection in buildings, offices, retail units, and light industrial premises
• DIN-rail based switchboard assemblies where compact 17.5 mm width is essential
