Part number
2CDS251001R0204
Model no
S201-C20
$5.95 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

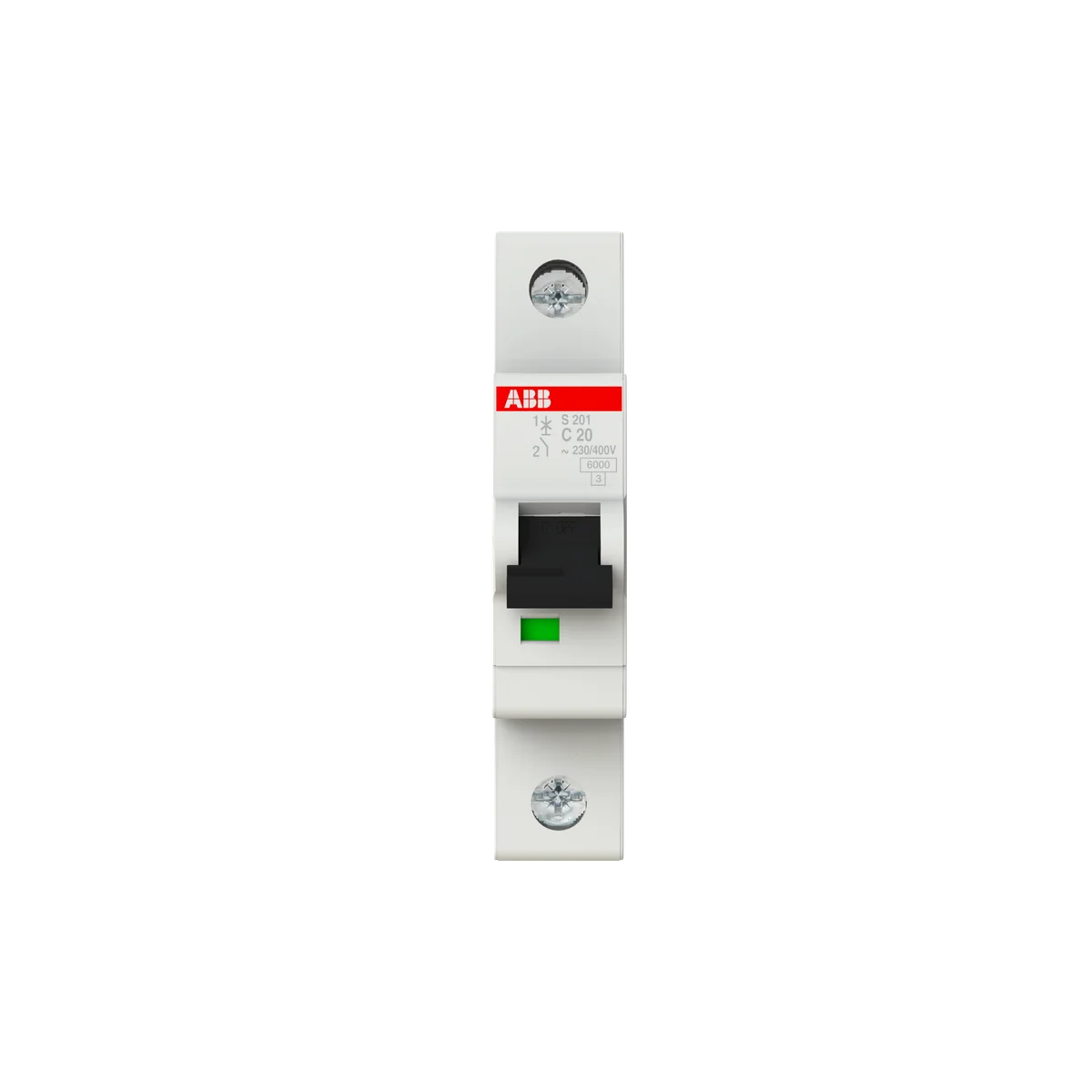

ABB 2CDS251001R0204 S201-C20 1P 20A 6kA C-Curve DIN-Rail Miniature Circuit Breaker

Rated current
20 A
Rated operational voltage
230–400 V AC
Poles
1P
Breaking capacity
(133) 20 kA
EAN
4016779464505
Other ratings in ABB S200 All 12 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
10 2CDS251001R0104 In stock $5.95
16 2CDS251001R0164 In stock $5.95
20 2CDS251001R0204This part In stock $5.95
25 2CDS251001R0254 In stock $5.95
32 2CDS251001R0324 In stock $7.44
Description

About the S201-C20

The ABB S201-C20 miniature circuit breaker (SKU: 2CDS251001R0204) is a 1-pole, 20A, 6kA breaking capacity MCB from the S200 series, designed for overcurrent and short-circuit protection in residential, commercial, and light industrial installations. Featuring a C-curve trip characteristic and rated at 230/400V AC, the S201-C20 mounts effortlessly on standard DIN rail and delivers reliable protection in compact 17.5mm width.

Certifications & Standards

  • IEC/EN 60898-1: International and European standard for circuit breakers for overcurrent protection in household and similar installations
  • IEC/EN 60947-2: Low-voltage switchgear and controlgear — circuit breakers (industrial application)
  • IEC 60898-1: International standard for overcurrent protection circuit breakers
  • EN 60898-1: European harmonised standard for circuit breakers in household installations
  • IEC/EN 60664: Insulation coordination for equipment within low-voltage systems
  • IEC 60068-2: Environmental testing standard for electrical/electronic components
  • EN 60947-2: European standard for low-voltage circuit breakers
  • EN 45555: General methods for the assessment of the lifetime of energy-related products
  • EN 60664: European insulation coordination standard for low-voltage systems
  • UL 1077: UL standard for supplementary protectors for use in electrical equipment (North American market)
  • CSA: Canadian Standards Association approval for North American markets
  • CE: Conformité Européenne — meets EU health, safety, and environmental requirements
  • UKCA: UK Conformity Assessed — approved for the Great Britain market post-Brexit
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Compliant with EU Regulation (EC) No 1907/2006 on chemical safety
  • WEEE: Waste Electrical and Electronic Equipment Directive compliant
Specification

Full specification

84 values · Last verified 30 Oct 2026

Technical 21

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (133 V AC) 20 kA, (230 V AC) 10 kA, (24 V DC) 20 kA, (60 V DC) 10 kA, (230 V) 10 kA, (400 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (133 V AC) 15 kA, (230 V AC) 7.5 kA
Power Supply Connection Arbitrary
Contact Position Indication Red ON / Green OFF
Energy Limiting Class 3
Electrical Endurance 20000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 1
Number of Poles 1P
Tightening Torque 2.8 N·m
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Connecting Capacity Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²
Installation Size acc. to DIN 43880 1
Wire Stripping Length 12.5 mm
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 12

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 230 V AC
Operational Voltage Maximum (Incl. Tolerance) 253 V AC, Maximum (Incl. Tolerance) 72 V DC, Minimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type AC/DC
Rated Current (In) 20 A
Rated Short-Circuit Capacity (AC) 6 kA, (DC) 6 kA, (230 / 400 V AC) 6 kA
Frequency (f) 50 Hz
Rated Frequency (f) 50 / 60 Hz
Power Loss 2.5 W, at Rated Operating Conditions per Pole 2.5 W
Overvoltage Category III

Design 1

Housing Material Insulation Group II, RAL 7035
Show all 84 specifications ↓ Show less ↑50 more values in Identification, Technical UL/CSA, Material Compliance, Environmental, Dimensions, Engineering, Installation, External Classifications and Standards, Logistics.

Identification 12

Part number 2CDS251001R0204
Type designation S201-C20
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4016779464505
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 10 piece
Package Level 1 Gross Weight 1.19 kg
E-Number (Sweden) 2100522

Technical UL/CSA 4

Maximum Operating Voltage UL/CSA 60 V DC, 480Y/277 V AC
Interrupting Rating acc. to UL1077 (277 V AC) 6 kA, (60 V DC) 10 kA, (120 V) 10 kA
Connecting Capacity UL/CSA Busbar 18-8 AWG, Conductor 18-4 AWG
Tightening Torque UL/CSA 18 in·lb

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 7

Ambient Air Temperature Operation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature 30 °C
Degree of Protection IP20, IP40, Enclosure with Cover IP40
Pollution Degree 3
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms

Dimensions 7

Width in Number of Modular Spacings 1
Product Net Width 17.5 mm
Product Net Height 88 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.115 kg
Pole Net Weight 0.125 kg
Built-In Depth (t2) 69 mm

Engineering 1

EPLAN Data 9AAC204436_EPLAN

Installation 3

Mounting Type DIN-Rail
Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any

External Classifications and Standards 6

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Certification Agency EN, IEC, UL
Standardization Body EN, IEC, UL

Logistics 4

Shipping weight 1.295 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS251001R0204

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 12 ratings in ABB S200

ABB ABB S200 series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
6 A 2CDS251001R0064 S201-C6 In stock $7.13
10 A 2CDS251001R0104 S201-C10 In stock $5.95
16 A 2CDS251001R0164 S201-C16 In stock $5.95
20 A 2CDS251001R0204 This part S201-C20 In stock $5.95
25 A 2CDS251001R0254 S201-C25 In stock $5.95
32 A 2CDS251001R0324 S201-C32 In stock $7.44
50 A 2CDS251001R0504 S201-C50 In stock $8.91
63 A 2CDS251001R0634 S201-C63 In stock $10.10
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • UKCA
  • IEC/EN 60898-1
  • IEC/EN 60947-2
  • UL 1077
Quick answers

Questions about the S201-C20

What is the rated current of S201-C20?

The rated current of S201-C20 is 20 A.

Which supply voltage is S201-C20 rated for?

The rated operational voltage of S201-C20 is 230–400 V AC.

What is the HS code of S201-C20 for customs?

The tariff (HS) code on file for S201-C20 is 853620.

What is the EAN of S201-C20?

The EAN (GTIN) of S201-C20 is 4016779464505.

Where does S201-C20 ship from, and how fast?

S201-C20 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
