| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 4 | 2CDS251001R0044 | In stock | $7.13 | |
| 6 | 2CDS251001R0064 | In stock | $7.13 | |
| 10 | 2CDS251001R0104This part | In stock | $5.95 | |
| 16 | 2CDS251001R0164 | In stock | $5.95 | |
| 20 | 2CDS251001R0204 | In stock | $5.95 |

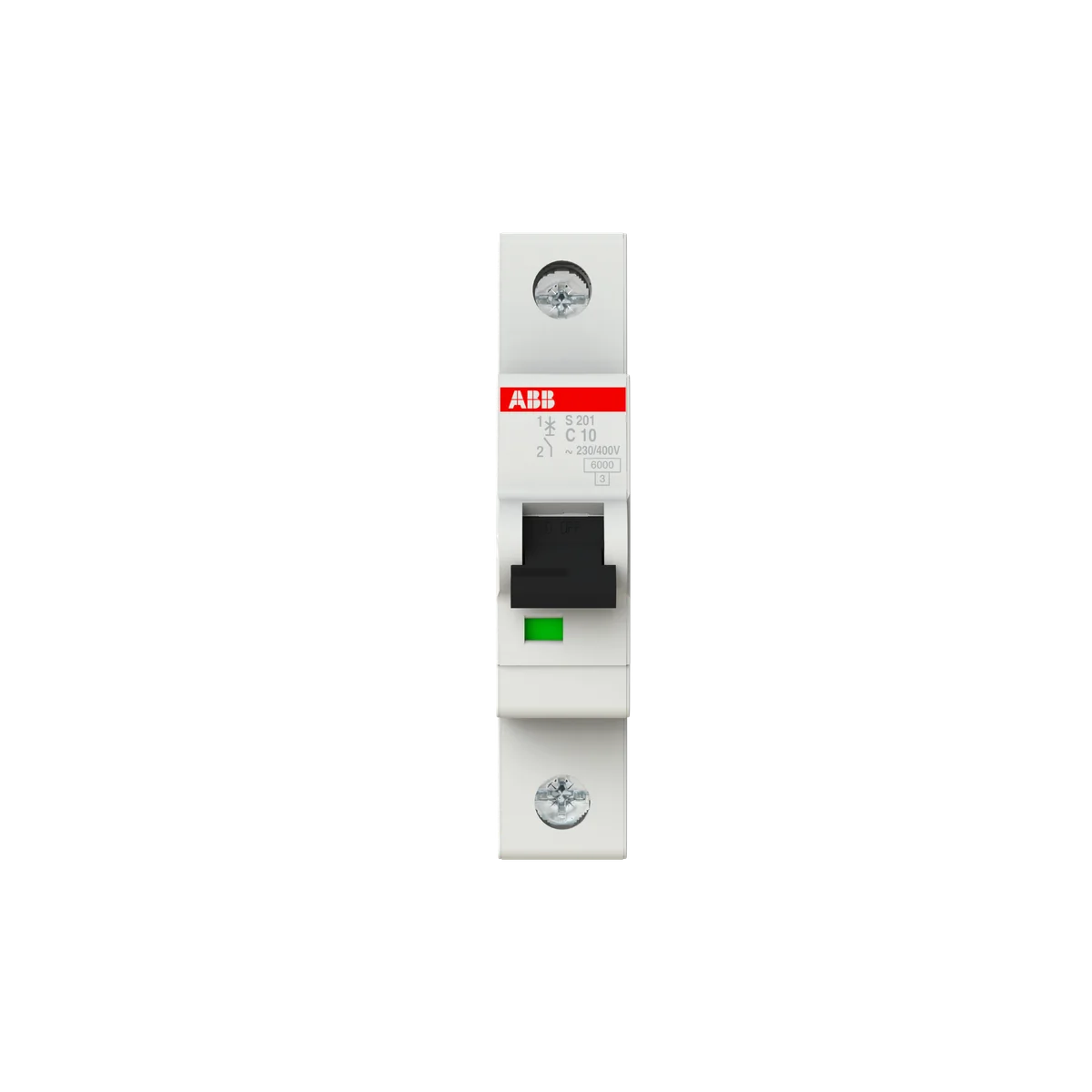

The ABB S201-C10 miniature circuit breaker (MCB), SKU 2CDS251001R0104, is a 1-pole 10A C-curve device rated at 230/400V AC with a 6kA breaking capacity, designed for reliable overcurrent and short-circuit protection in residential, commercial, and light industrial control panels. Engineered to IEC/EN 60898-1 and IEC/EN 60947-2 standards, the S201-C10 mounts on standard DIN rail and delivers consistent, dependable protection for final circuits and distribution boards.
| Dielectric Test Voltage | 50 / 60 Hz - 1 min 2 kV |
|---|---|
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (133 V AC) 20 kA, (230 V AC) 10 kA, (24 V DC) 20 kA, (60 V DC) 10 kA, (230 V) 10 kA, (400 V) 10 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (133 V AC) 15 kA, (230 V AC) 7.5 kA |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | Red ON / Green OFF |
| Energy Limiting Class | 3 |
| Electrical Endurance | 20000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Protected Poles | 1 |
| Number of Poles | 1P |
| Tightening Torque | 2.8 N·m |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Black, Sealable |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Technical Information | MINIATURE CIRCUIT BREAKER |
| Connecting Capacity | Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm² |
| Installation Size | acc. to DIN 43880 1 |
| Wire Stripping Length | 12.5 mm |
| Terminal Type | Screw Terminals |
| Actuator Type | Toggle |
| Tripping Characteristic | C |
|---|---|
| Rated Operational Voltage | acc. to IEC 60898-1 230 V AC |
| Operational Voltage | Maximum (Incl. Tolerance) 253 V AC, Maximum (Incl. Tolerance) 72 V DC, Minimum 12 V AC, Minimum 12 V DC |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV |
| Input Voltage Type | AC/DC |
| Rated Current (In) | 10 A |
| Rated Short-Circuit Capacity | (AC) 6 kA, (DC) 6 kA, (230 / 400 V AC) 6 kA |
| Frequency (f) | 50 Hz |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | 2.1 W, at Rated Operating Conditions per Pole 2.1 W |
| Overvoltage Category | III |
| Housing Material | Insulation Group II, RAL 7035 |
|---|
| Part number | 2CDS251001R0104 |
|---|---|
| Type designation | S201-C10 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4016779464208 |
| ETIM class | EC000042 |
| eCl@ss | 27141901 |
| Package Level 1 Units | carton 10 piece |
| Package Level 1 Gross Weight | 1.16 kg |
| E-Number (Sweden) | 2100516 |
| Maximum Operating Voltage UL/CSA | 60 V DC, 480Y/277 V AC |
|---|---|
| Interrupting Rating acc. to UL1077 | (277 V AC) 6 kA, (60 V DC) 10 kA, (120 V) 10 kA |
| Connecting Capacity UL/CSA | Busbar 18-8 AWG, Conductor 18-4 AWG |
| Tightening Torque UL/CSA | 18 in·lb |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|---|
| RoHS Date | 20260312 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260312 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Ambient Air Temperature | Operation -25 ... +55 °C, Storage -40 ... +70 °C |
|---|---|
| Reference Ambient Air Temperature | 30 °C |
| Degree of Protection | IP20, IP40, Enclosure with Cover IP40 |
| Pollution Degree | 3 |
| Environmental Conditions | 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 % |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Width in Number of Modular Spacings | 1 |
|---|---|
| Product Net Width | 17.5 mm |
| Product Net Height | 88 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.112 kg |
| Pole Net Weight | 0.125 kg |
| Built-In Depth (t2) | 69 mm |
| EPLAN Data | 9AAC204436_EPLAN |
|---|
| Mounting Type | DIN-Rail |
|---|---|
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Mounting Position | any |
| ETIM 10 | EC000042 - Miniature circuit breaker (MCB) |
|---|---|
| UNSPSC | 39121603 |
| eClass | V11.0 : 27141901 |
| Standards | IEC/EN 60898-1, IEC/EN 60947-2, UL 1077 |
| Certification Agency | EN, IEC, UL |
| Standardization Body | EN, IEC, UL |
| Shipping weight | 1.295 kg |
|---|---|
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheet| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 1 A | 2CDS251001R0014 | S201-C1 | In stock | $8.03 | |||
| 2 A | 2CDS251001R0024 | S201-C2 | In stock | $8.03 | |||
| 3 A | 2CDS251001R0034 | S201-C3 | In stock | $8.03 | |||
| 4 A | 2CDS251001R0044 | S201-C4 | In stock | $7.13 | |||
| 6 A | 2CDS251001R0064 | S201-C6 | In stock | $7.13 | |||
| 10 A | 2CDS251001R0104 This part | S201-C10 | In stock | $5.95 | |||
| 16 A | 2CDS251001R0164 | S201-C16 | In stock | $5.95 | |||
| 20 A | 2CDS251001R0204 | S201-C20 | In stock | $5.95 | |||
| 25 A | 2CDS251001R0254 | S201-C25 | In stock | $5.95 | |||
| 32 A | 2CDS251001R0324 | S201-C32 | In stock | $7.44 | |||
| 50 A | 2CDS251001R0504 | S201-C50 | In stock | $8.91 | |||
| 63 A | 2CDS251001R0634 | S201-C63 | In stock | $10.10 |
The rated current of S201-C10 is 10 A.
The rated operational voltage of S201-C10 is 230–400 V AC.
The tariff (HS) code on file for S201-C10 is 853620.
The EAN (GTIN) of S201-C10 is 4016779464208.
S201-C10 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
