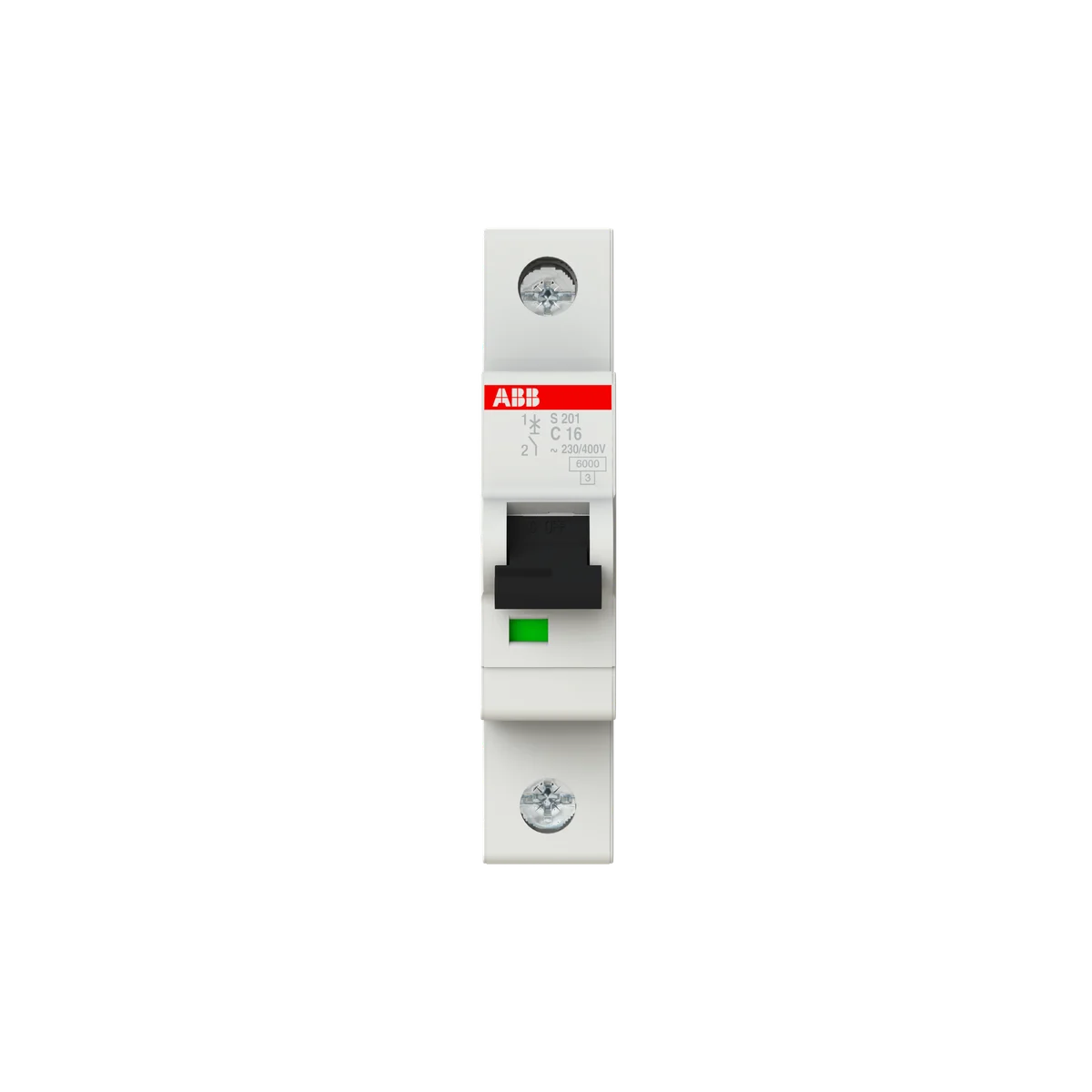

ABB 2CDS251001R0164 S201-C16 1P 16A 6kA C-Curve DIN Rail Miniature Circuit Breaker

The ABB S201-C16 miniature circuit breaker (MCB), SKU 2CDS251001R0164, is a 1-pole, 16A, 6kA breaking capacity device from the S200 series, designed for reliable overcurrent and short-circuit protection in residential, commercial, and light industrial installations. Rated at 230/400V AC with a C-curve trip characteristic, the S201-C16 mounts effortlessly on standard DIN rail and delivers consistent performance in single-phase distribution boards and control panels.

Technical Specifications

Certifications & Standards

• IEC/EN 60898-1: International and European standard for household and similar circuit breakers
• IEC/EN 60947-2: International and European standard for low-voltage circuit breakers for industrial use
• IEC 60898-1230: Circuit breaker standard variant
• IEC 60068-2: Environmental testing standard
• EN 60664: Insulation coordination for equipment within low-voltage systems
• EN45555: General methods for the assessment of the ability of energy-related products to recover resources
• UL 1077: UL standard for supplementary protectors for use in electrical equipment
• CSA: Canadian Standards Association certification
• CE: European Conformity marking for EU market compliance
• UKCA: UK Conformity Assessed marking for Great Britain market compliance
• RoHS: Restriction of Hazardous Substances Directive compliance
• REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals compliance
• WEEE: Waste Electrical and Electronic Equipment Directive compliance

Applications & Use Cases

• Overcurrent and short-circuit protection in residential distribution boards
• Single-phase branch circuit protection in commercial buildings
• Control panel and switchgear protection in light industrial environments
• Protection of lighting circuits, socket outlet circuits, and small motor loads (C-curve)
• Supplementary protection in electrical panels alongside RCDs or RCBOs

Frequently Asked Questions

What does the C-curve trip characteristic mean?
The C-curve trips at 5–10× rated current for magnetic (instantaneous) operation, making the ABB S201-C16 suitable for loads with moderate inrush currents such as lighting, heating, and small motors.

Is the S201-C16 compatible with ABB residual current devices?
Yes. The S200 series is designed for use with ABB F200 and DS200 series RCCBs and RCBOs for combined protection.

What DIN rail width does this MCB require?
The S201-C16 occupies 17.5 mm (1 module) on a standard 35 mm DIN rail.
