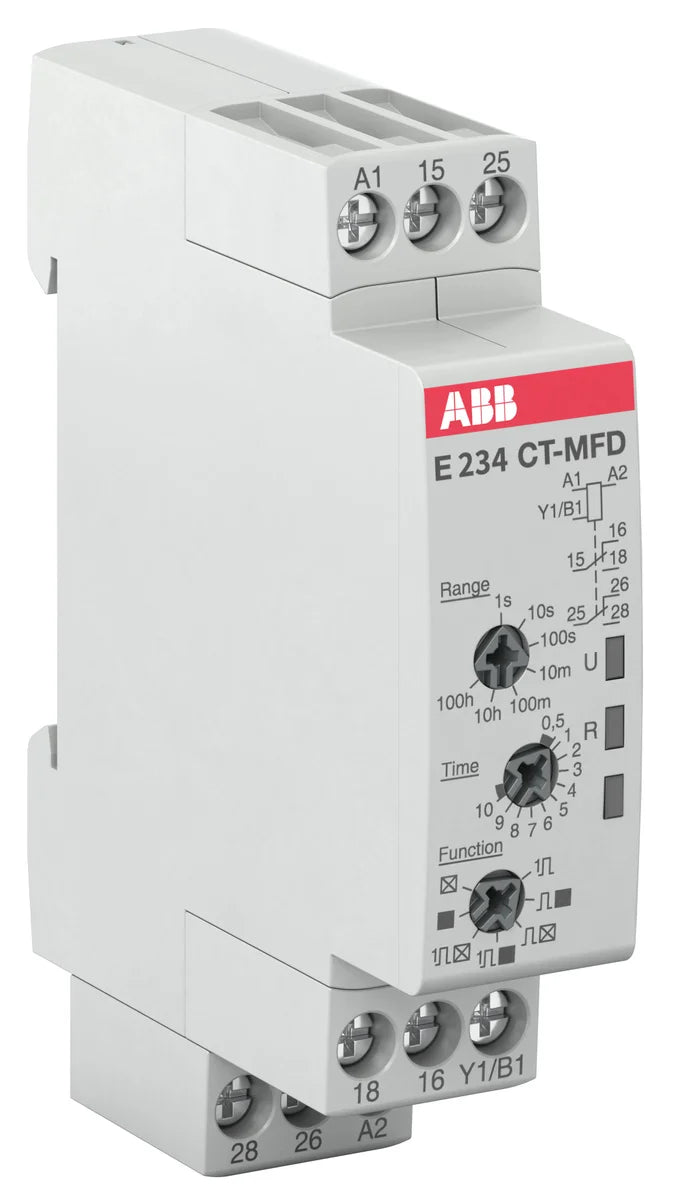

ABB 1SVR500020R1100 CT-MFD.21 Multifunction Timer Relay 2C/O 12-240V AC/DC 5A 250V
Brand:
ABB
Reference No:
1SVR500020R1100
Catalog No:
CT-MFD.21
Series:
CT-D
Tariff Code (GTIP):
85364900
Stock: 40
Delivery time: 1 business day(s)
Shipping Origin: Turkey EXW
$60.43
- Description
The ABB CT-MFD.21 (SKU: 1SVR500020R1100) is a multifunction timer relay from the CT-D series, offering 2 changeover (2C/O) contacts with a wide supply voltage range of 12–240V AC/DC — making it one of the most versatile timing relays for industrial control panel applications. The CT-MFD.21 supports multiple timing functions in a single compact 17.5 mm wide device, simplifying inventory and reducing panel footprint for automation engineers and panel builders.
Technical Specifications
| Catalog Number | CT-MFD.21 |
| SKU | 1SVR500020R1100 |
| Brand | ABB |
| Series | CT-D |
| Product Type | Multifunction Timer Relay |
| Output Contacts | 2C/O (2 changeover) |
| Supply Voltage | 12–240V AC/DC |
| Rated Current | 5 A |
| Rated Voltage | 250 V |
| Dimensions (W x H x D) | 17.5 x 80 x 63 mm |
| Weight | 0.066 kg |
| EAN | 4016779657662 |
Certifications & Standards
- CE: Complies with European conformity requirements for electrical equipment
- UKCA: UK Conformity Assessed marking for the Great Britain market
- RoHS: Restriction of Hazardous Substances compliant
- REACH: Compliant with EU REACH regulation on chemical substances
- CCC: China Compulsory Certification for the Chinese market
- UL 508: Listed for industrial control equipment per UL 508
- CSA / CAN/CSA C22.2 No.14: Canadian Standards Association certification for industrial control equipment
- IEC/EN 61812-1: Complies with the international standard for time relays for industrial and residential use
- IEC/EN 63000: Technical documentation standard for RoHS assessment
- EN 61812: European standard for time relays
Applications & Use Cases
- Industrial control panels requiring flexible, multifunction timing sequences
- Machine automation with start/stop delay, interval, and pulse timing requirements
- HVAC, pump, and motor control systems needing programmable time delays
- Building automation and process control where a single universal supply voltage (12–240V AC/DC) is advantageous
- OEM equipment manufacturers seeking a compact, certified timing solution
Technical Details
Catalog No
CT-MFD.21
Delivery Date (Days)
1 days
Model Number
CT-MFD.21
Tariff Code
85364900
