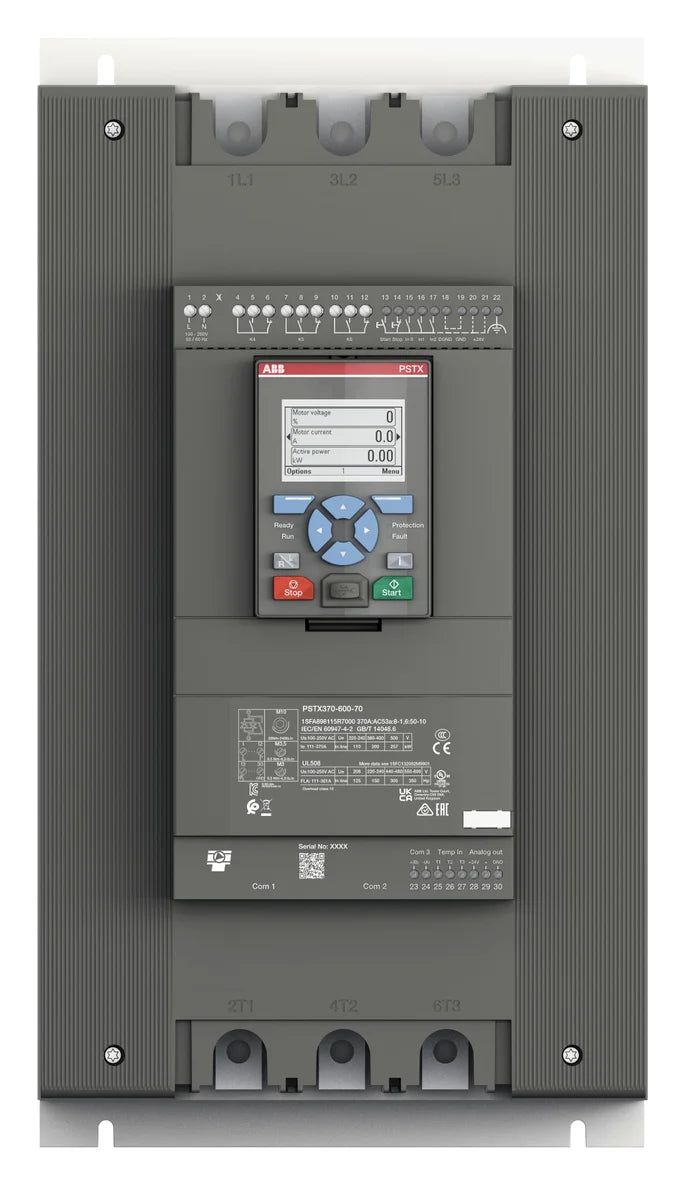

ABB 1SFA898115R7000 PSTX370-600-70 370A 208-600V AC 3P 200kW Soft Starter
Other ratings in PSTX
All 19 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 132 | 250 | 1SFA898113R7000 | In stock | $3,004.19 |
| 160 | 300 | 1SFA898114R7000 | In stock | $3,739.17 |
| 200 | 370 | 1SFA898115R7000This part | Low stock | $4,550.92 |
| 250 | 470 | 1SFA898116R7000 | In stock | $5,590.61 |
| 315 | 570 | 1SFA898117R7000 | In stock | $6,799.90 |
Description
About the PSTX370-600-70
About the PSTX370-600-70
The ABB PSTX370-600-70 soft starter (SKU: 1SFA898115R7000) is a 370 A, 208–600 V AC three-phase electronic soft starter from the ABB PSTX series, designed to deliver smooth, controlled motor starting and stopping for up to 200 kW loads. With a wide control voltage range of 110–250 V and compact dimensions, the PSTX370-600-70 reduces mechanical stress, inrush current, and energy consumption during motor start-up, making it a high-performance solution for demanding motor control applications.
Certifications & Standards
- IEC 60529: Degrees of protection provided by enclosures (IP Code)
- IEC 60547-1: Semiconductor devices — soft starters standard compliance
- EN 60529: European harmonised standard for enclosure protection ratings
- CSA: Canadian Standards Association certification for North American markets
- REACH: EU regulation on chemical substances — compliant
- RoHS: Restriction of Hazardous Substances Directive — compliant
- WEEE: Waste Electrical and Electronic Equipment Directive — compliant
- CCC: China Compulsory Certification for the Chinese market
- CE: European Conformity marking — meets EU safety and performance requirements
Applications & Use Cases
The ABB PSTX370-600-70 soft starter is engineered for a wide range of industrial motor control scenarios where direct-on-line starting would cause excessive mechanical or electrical stress. Typical applications include pumps, fans, compressors, conveyors, and mixers. By controlling the ramp-up torque and reducing starting current, the PSTX370-600-70 extends motor and driven-equipment service life, lowers peak demand charges, and minimises voltage dip on the supply network. The unit suits installation in motor control centres (MCCs), standalone panels, and process automation systems across industries such as water treatment, HVAC, oil & gas, mining, and manufacturing.
Specification
Full specification
Dimensions 4
| Product Net Width | 258 mm |
|---|---|
| Product Net Height | 470 mm |
| Product Net Depth / Length | 279 mm |
| Product Net Weight | 15.5 kg |
Technical 37
| Rated Operational Voltage | 208 ... 600 V AC |
|---|---|
| Rated Control Supply Voltage (Us) | 100 ... 250 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz, Main Circuit 50 / 60 Hz |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 110 kW, (400 V) 200 kW, (500 V) 257 kW |
| Rated Operational Current - In-Line Connection (Ie) | 370 A |
| Rated Operational Power - Inside Delta Connection | at 230 V 200 kW, at 400 V 355 kW, at 500 V 450 kW |
| Rated Operational Current - Inside Delta Connection | 640 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Built-in electronic overload protection |
| Integrated Electronic Overload | Yes |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 10s |
| Ramp Time | 1 ... 120 s |
| Initial Voltage During Start | 10 ... 99 % |
| Step Down Voltage Special Ramp | 100 ... 10 % |
| Current Limit Function | 1.5 ... 7.5 xle |
| Switch for Inside Delta Connection | Yes |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | Yes |
| Overload Signal Relay | Yes |
| Analog Outputs | 0…10 V, 0…20 mA, 4…20 mA |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Protection (LED) | Yellow |
| Signal Indication Fault (LED) | Red |
| Communication | Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Terminal Type | Main Circuit: Bars |
| Connecting Capacity Main Circuit | Hole Diameter 8.5 mm |
| Connecting Capacity Control Circuit | Rigid 1 x 2.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1 x 2.5 |
| Tightening Torque | Main Circuit 25 N·m |
| Product Main Type | PSTX370 |
| Function | Auto phase sequence detection, Automatic restart, Current limit, Current limit ramp, Dual current limit, Dynamic brake, Electricity metering, Electronic overload Time-to-cool, Emergency mode, Event log, Full voltage start, Jog with slow speed, forward and reverse, Keypad password, Kick start, Limp mode with two-phase motor control if one set of thyristors is shorted, Motor heating, Pre-start function, Pump cleaning, Real time clock, Sequence start, Soft start with torque control, Soft start with voltage ramp, Soft stop with torque control, Soft stop with voltage ramp, Stand still brake, Start reverse (external contactors), Thyristor runtime measurement, Torque limit, Voltage sags detection |
| Protection Function | Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection |
| Warning Details | Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning |
Technical UL/CSA 3
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 125 Hp, (220 ... 240 V AC) Three Phase 150 Hp, (440 ... 480 V AC) Three Phase 300 Hp, (550 ... 600 V AC) Three Phase 350 Hp |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Main Circuit 221.3 |
Show all 74 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA898115R7000 |
|---|---|
| Type designation | PSTX370-600-70 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500501535 |
| eCl@ss | 27370907 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
Environmental 1
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +70 °C |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006481 |
|---|---|
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 3
| ETIM 7 | EC000640 - Soft starter |
|---|---|
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
Logistics 10
| Package Level 1 Width | 352 mm |
|---|---|
| Package Level 1 Depth / Length | 379 mm |
| Package Level 1 Height | 564 mm |
| Package Level 1 Gross Weight | 18.5 kg |
| Package Level 1 EAN | 7320500501535 |
| Package Level 1 Units | box 1 piece |
| Shipping weight | 18.5 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA898115R7000 1
-
Datasheet
SeriesDownload PDF: Data Sheet, Technical Information 1SFC132012C0201
Data Sheet, Technical Information 1SFC132012C0201
Other ratings
All 19 ratings in PSTX
ABB PSTX series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 15 kW | 30 A | 1SFA898103R7000 | PSTX30-600-70 | In stock | $817.71 | ||
| 18.5 kW | 37 A | 1SFA898104R7000 | PSTX37-600-70 | In stock | $903.41 | ||
| 22 kW | 45 A | 1SFA898105R7000 | PSTX45-600-70 | In stock | $955.18 | ||
| 30 kW | 60 A | 1SFA898106R7000 | PSTX60-600-70 | Low stock | $1,096.23 | ||
| 37 kW | 72 A | 1SFA898107R7000 | PSTX72-600-70 | In stock | $1,143.84 | ||
| 45 kW | 85 A | 1SFA898108R7000 | PSTX85-600-70 | In stock | $1,399.73 | ||
| 55 kW | 105 A | 1SFA898109R7000 | PSTX105-600-70 | In stock | $1,634.22 | ||
| 75 kW | 142 A | 1SFA898110R7000 | PSTX142-600-70 | In stock | $2,027.00 | ||
| 90 kW | 170 A | 1SFA898111R7000 | PSTX170-600-70 | In stock | $2,478.70 | ||
| 110 kW | 210 A | 1SFA898112R7000 | PSTX210-600-70 | In stock | $2,768.52 | ||
| 132 kW | 250 A | 1SFA898113R7000 | PSTX250-600-70 | In stock | $3,004.19 | ||
| 160 kW | 300 A | 1SFA898114R7000 | PSTX300-600-70 | In stock | $3,739.17 | ||
| 200 kW | 370 A | 1SFA898115R7000 This part | PSTX370-600-70 | Low stock | $4,550.92 | ||
| 250 kW | 470 A | 1SFA898116R7000 | PSTX470-600-70 | In stock | $5,590.61 | ||
| 315 kW | 570 A | 1SFA898117R7000 | PSTX570-600-70 | In stock | $6,799.90 | ||
| 400 kW | 720 A | 1SFA898118R7000 | PSTX720-600-70 | Low stock | $8,275.22 | ||
| 450 kW | 840 A | 1SFA898119R7000 | PSTX840-600-70 | Low stock | $9,095.89 | ||
| 560 kW | 1050 A | 1SFA898120R7000 | PSTX1050-600-70 | Low stock | $10,765.22 | ||
| 710 kW | 1250 A | 1SFA898121R7000 | PSTX1250-600-70 | Low stock | $12,460.14 |
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- CCC
Quick answers
Questions about the PSTX370-600-70
What is the rated current of PSTX370-600-70?
The rated current of PSTX370-600-70 is 370 A.
Which supply voltage is PSTX370-600-70 rated for?
The rated operational voltage of PSTX370-600-70 is 208–600 V AC.
What motor power is PSTX370-600-70 rated for?
The rated motor power of PSTX370-600-70 is 200 kW.
Which control voltage does PSTX370-600-70 need?
The control voltage range of PSTX370-600-70 is 100–250 V.
What is the HS code of PSTX370-600-70 for customs?
The tariff (HS) code on file for PSTX370-600-70 is 853710.
What is the EAN of PSTX370-600-70?
The EAN (GTIN) of PSTX370-600-70 is 7320500501535.
Where does PSTX370-600-70 ship from, and how fast?
PSTX370-600-70 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
