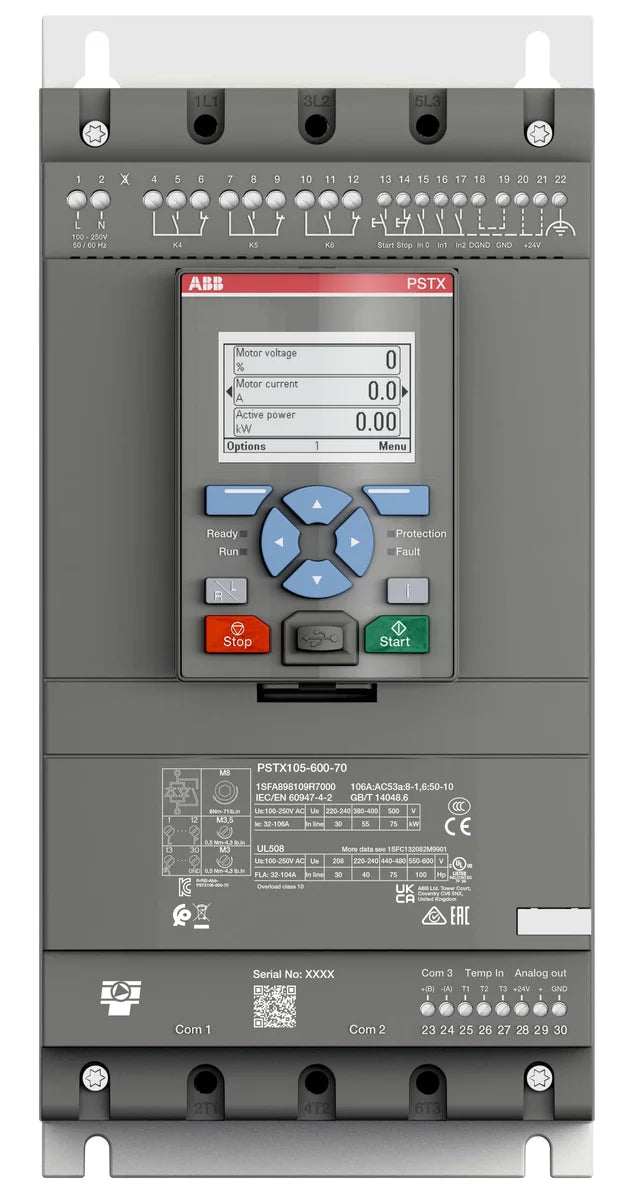

ABB 1SFA898109R7000 PSTX105-600-70 105A 208-600V AC 3P 55kW Soft Starter
Other ratings in PSTX
All 19 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 37 | 72 | 1SFA898107R7000 | In stock | $1,143.84 |
| 45 | 85 | 1SFA898108R7000 | In stock | $1,399.73 |
| 55 | 105 | 1SFA898109R7000This part | In stock | $1,634.22 |
| 75 | 142 | 1SFA898110R7000 | In stock | $2,027.00 |
| 90 | 170 | 1SFA898111R7000 | In stock | $2,478.70 |
Description
About the PSTX105-600-70
About the PSTX105-600-70
The ABB PSTX105-600-70 soft starter (SKU 1SFA898109R7000) is a 105 A, 3-pole electronic soft starter rated for 208–600 V AC supply voltage, designed to provide smooth motor starting and stopping with precise torque and current control. Part of ABB's advanced PSTX series, it supports up to 55 kW motor power, a control voltage range of 110–250 V, and is built to reduce mechanical stress, starting current peaks, and wear on driven equipment in demanding industrial applications.
Certifications & Standards
- IEC 60947-1: Compliant with the international standard for low-voltage switchgear and controlgear
- CSA: Certified to Canadian Standards Association requirements for North American markets
- CE: Meets European Union safety, health, and environmental protection requirements
- CCC: China Compulsory Certification for sale and use in the People's Republic of China
- REACH: Compliant with EU REACH regulation on chemical substances
- RoHS: Restriction of Hazardous Substances — free from restricted materials per EU directive
- WEEE: Compliant with the Waste Electrical and Electronic Equipment directive for responsible disposal
Applications & Use Cases
- Pump and fan motor starting where water hammer and mechanical shock must be minimised
- Conveyor and compressor drives requiring controlled ramp-up and ramp-down
- HVAC systems where reduced voltage starting limits inrush current and grid disturbance
- Industrial production lines with frequent start-stop cycles needing reliable motor protection
- Applications spanning a wide voltage range (208–600 V AC) across global installations
Specification
Full specification
Dimensions 4
| Product Net Width | 150 mm |
|---|---|
| Product Net Height | 314 mm |
| Product Net Depth / Length | 198 mm |
| Product Net Weight | 4.7 kg |
Technical 37
| Rated Operational Voltage | 208 ... 600 V AC |
|---|---|
| Rated Control Supply Voltage (Us) | 100 ... 250 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz, Main Circuit 50 / 60 Hz |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 30 kW, (400 V) 55 kW, (500 V) 75 kW |
| Rated Operational Current - In-Line Connection (Ie) | 105 A |
| Rated Operational Power - Inside Delta Connection | at 230 V 55 kW, at 400 V 90 kW, at 500 V 110 kW |
| Rated Operational Current - Inside Delta Connection | 181 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Built-in electronic overload protection |
| Integrated Electronic Overload | Yes |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 10s |
| Ramp Time | 1 ... 120 s |
| Initial Voltage During Start | 10 ... 99 % |
| Step Down Voltage Special Ramp | 100 ... 10 % |
| Current Limit Function | 1.5 ... 7.5 xle |
| Switch for Inside Delta Connection | Yes |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | Yes |
| Overload Signal Relay | Yes |
| Analog Outputs | 0…10 V, 0…20 mA, 4…20 mA |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Protection (LED) | Yellow |
| Signal Indication Fault (LED) | Red |
| Communication | Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Terminal Type | Cable Clamp |
| Connecting Capacity Main Circuit | Hole Diameter 8.5 mm |
| Connecting Capacity Control Circuit | Rigid 1 x 2.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1 x 2.5 |
| Tightening Torque | Main Circuit 8 N·m |
| Product Main Type | PSTX105 |
| Function | Auto phase sequence detection, Automatic restart, Current limit, Current limit ramp, Dual current limit, Dynamic brake, Electricity metering, Electronic overload Time-to-cool, Emergency mode, Event log, Full voltage start, Jog with slow speed, forward and reverse, Keypad password, Kick start, Limp mode with two-phase motor control if one set of thyristors is shorted, Motor heating, Pre-start function, Pump cleaning, Real time clock, Sequence start, Soft start with torque control, Soft start with voltage ramp, Soft stop with torque control, Soft stop with voltage ramp, Stand still brake, Start reverse (external contactors), Thyristor runtime measurement, Torque limit, Voltage sags detection |
| Protection Function | Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection |
| Warning Details | Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning |
Technical UL/CSA 3
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 30 Hp, (220 ... 240 V AC) Three Phase 40 Hp, (440 ... 480 V AC) Three Phase 75 Hp, (550 ... 600 V AC) Three Phase 100 Hp |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Main Circuit 70.8 |
Show all 75 specifications ↓ Show less ↑31 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA898109R7000 |
|---|---|
| Type designation | PSTX105-600-70 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500501313 |
| eCl@ss | 27370907 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
Environmental 1
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +70 °C |
|---|
Material Compliance 7
| REACH Declaration | 2CMT2022-006481 |
|---|---|
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | f3a0566c-5aad-4ac9-94d0-4c2d5492623c China |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 3
| ETIM 7 | EC000640 - Soft starter |
|---|---|
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
Logistics 10
| Package Level 1 Width | 200 mm |
|---|---|
| Package Level 1 Depth / Length | 282 mm |
| Package Level 1 Height | 388 mm |
| Package Level 1 Gross Weight | 5.7 kg |
| Package Level 1 EAN | 7320500501313 |
| Package Level 1 Units | box 1 piece |
| Shipping weight | 5.7 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA898109R7000 1
-
Datasheet
SeriesDownload PDF: Data Sheet, Technical Information 1SFC132012C0201
Data Sheet, Technical Information 1SFC132012C0201
Other ratings
All 19 ratings in PSTX
ABB PSTX series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 15 kW | 30 A | 1SFA898103R7000 | PSTX30-600-70 | In stock | $817.71 | ||
| 18.5 kW | 37 A | 1SFA898104R7000 | PSTX37-600-70 | In stock | $903.41 | ||
| 22 kW | 45 A | 1SFA898105R7000 | PSTX45-600-70 | In stock | $955.18 | ||
| 30 kW | 60 A | 1SFA898106R7000 | PSTX60-600-70 | Low stock | $1,096.23 | ||
| 37 kW | 72 A | 1SFA898107R7000 | PSTX72-600-70 | In stock | $1,143.84 | ||
| 45 kW | 85 A | 1SFA898108R7000 | PSTX85-600-70 | In stock | $1,399.73 | ||
| 55 kW | 105 A | 1SFA898109R7000 This part | PSTX105-600-70 | In stock | $1,634.22 | ||
| 75 kW | 142 A | 1SFA898110R7000 | PSTX142-600-70 | In stock | $2,027.00 | ||
| 90 kW | 170 A | 1SFA898111R7000 | PSTX170-600-70 | In stock | $2,478.70 | ||
| 110 kW | 210 A | 1SFA898112R7000 | PSTX210-600-70 | In stock | $2,768.52 | ||
| 132 kW | 250 A | 1SFA898113R7000 | PSTX250-600-70 | In stock | $3,004.19 | ||
| 160 kW | 300 A | 1SFA898114R7000 | PSTX300-600-70 | In stock | $3,739.17 | ||
| 200 kW | 370 A | 1SFA898115R7000 | PSTX370-600-70 | Low stock | $4,550.92 | ||
| 250 kW | 470 A | 1SFA898116R7000 | PSTX470-600-70 | In stock | $5,590.61 | ||
| 315 kW | 570 A | 1SFA898117R7000 | PSTX570-600-70 | In stock | $6,799.90 | ||
| 400 kW | 720 A | 1SFA898118R7000 | PSTX720-600-70 | Low stock | $8,275.22 | ||
| 450 kW | 840 A | 1SFA898119R7000 | PSTX840-600-70 | Low stock | $9,095.89 | ||
| 560 kW | 1050 A | 1SFA898120R7000 | PSTX1050-600-70 | Low stock | $10,765.22 | ||
| 710 kW | 1250 A | 1SFA898121R7000 | PSTX1250-600-70 | Low stock | $12,460.14 |
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- CCC
Quick answers
Questions about the PSTX105-600-70
What is the rated current of PSTX105-600-70?
The rated current of PSTX105-600-70 is 105 A.
Which supply voltage is PSTX105-600-70 rated for?
The rated operational voltage of PSTX105-600-70 is 208–600 V AC.
What motor power is PSTX105-600-70 rated for?
The rated motor power of PSTX105-600-70 is 55 kW.
Which control voltage does PSTX105-600-70 need?
The control voltage range of PSTX105-600-70 is 100–250 V.
What is the HS code of PSTX105-600-70 for customs?
The tariff (HS) code on file for PSTX105-600-70 is 853710.
What is the EAN of PSTX105-600-70?
The EAN (GTIN) of PSTX105-600-70 is 7320500501313.
Where does PSTX105-600-70 ship from, and how fast?
PSTX105-600-70 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
