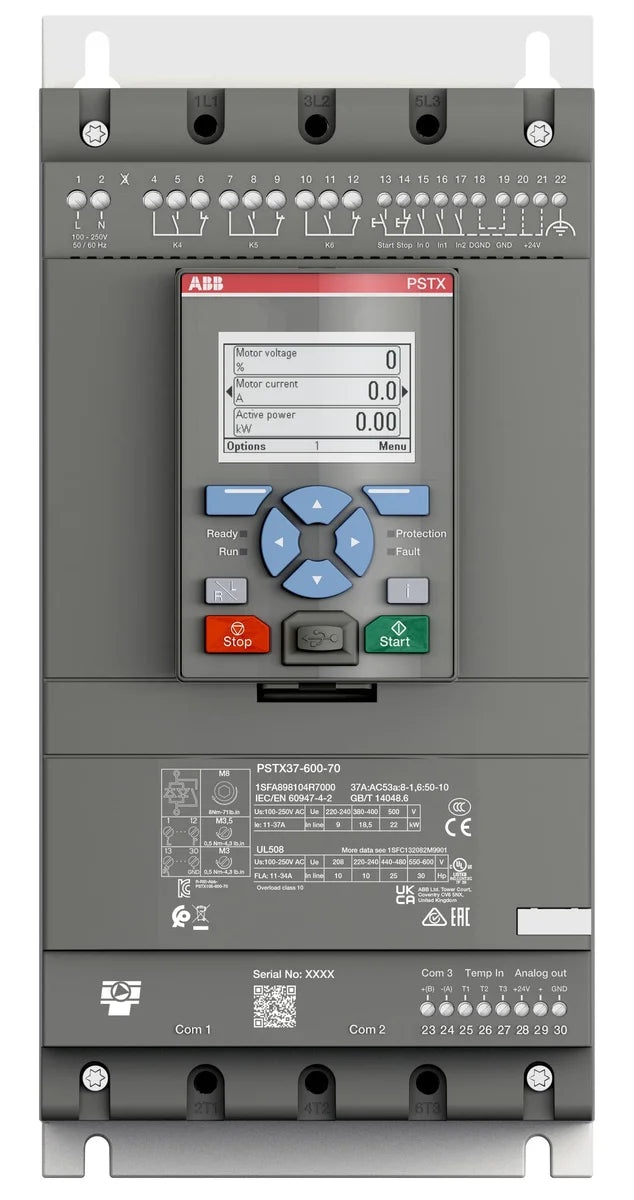

ABB 1SFA898104R7000 PSTX37-600-70 37A 208-600V AC 3P 18.5kW Soft Starter
Other ratings in PSTX
All 19 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 15 | 30 | 1SFA898103R7000 | In stock | $817.71 |
| 18.5 | 37 | 1SFA898104R7000This part | In stock | $903.41 |
| 22 | 45 | 1SFA898105R7000 | In stock | $955.18 |
| 30 | 60 | 1SFA898106R7000 | Low stock | $1,096.23 |
| 37 | 72 | 1SFA898107R7000 | In stock | $1,143.84 |
Description
About the PSTX37-600-70
About the PSTX37-600-70
The ABB PSTX37-600-70 (SKU: 1SFA898104R7000) is a 37 A three-phase soft starter from the ABB PSTX series, rated for 208–600 V AC supply voltage and delivering up to 18.5 kW motor power control. Designed for demanding industrial motor control applications, the PSTX37-600-70 provides smooth motor starting and stopping, reducing mechanical stress and inrush current in automation and process control systems. With a control voltage range of 110–250 V and a compact footprint of 200 × 282 × 388 mm, it integrates cleanly into standard control panels and motor control centres.
Certifications & Standards
- CE: Compliant with applicable European Union directives for electrical equipment
- CCC: China Compulsory Certification for the Chinese market
- DNV: Det Norske Veritas approval for marine and offshore applications
- IEC 60947-1: Low-voltage switchgear and controlgear — general rules
- CSA: Canadian Standards Association certification for North American markets
- REACH: Compliant with EU REACH regulation on chemical substances
- RoHS: Restriction of Hazardous Substances compliant
- WEEE: Waste Electrical and Electronic Equipment directive compliant
Applications & Use Cases
The ABB PSTX37-600-70 soft starter is suited for a wide range of three-phase motor-driven applications where controlled acceleration and deceleration are critical. Typical applications include pumps, fans, compressors, conveyors, and mixers found in water treatment, HVAC, marine, oil & gas, and general industrial automation environments. The DNV certification makes the PSTX37-600-70 particularly well-suited for shipboard and offshore motor control duties, while CSA certification opens deployment across North American installations. Its wide supply voltage range (208–600 V AC) and broad control voltage window (110–250 V) give engineers and panel builders maximum flexibility across global projects.
Specification
Full specification
Dimensions 4
| Product Net Width | 150 mm |
|---|---|
| Product Net Height | 314 mm |
| Product Net Depth / Length | 198 mm |
| Product Net Weight | 4.6 kg |
Technical 37
| Rated Operational Voltage | 208 ... 600 V AC |
|---|---|
| Rated Control Supply Voltage (Us) | 100 ... 250 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz, Main Circuit 50 / 60 Hz |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 9 kW, (400 V) 18.5 kW, (500 V) 22 kW |
| Rated Operational Current - In-Line Connection (Ie) | 37 A |
| Rated Operational Power - Inside Delta Connection | at 230 V 15 kW, at 400 V 30 kW, at 500 V 37 kW |
| Rated Operational Current - Inside Delta Connection | 64 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Built-in electronic overload protection |
| Integrated Electronic Overload | Yes |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 10s |
| Ramp Time | 1 ... 120 s |
| Initial Voltage During Start | 10 ... 99 % |
| Step Down Voltage Special Ramp | 100 ... 10 % |
| Current Limit Function | 1.5 ... 7.5 xle |
| Switch for Inside Delta Connection | Yes |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | Yes |
| Overload Signal Relay | Yes |
| Analog Outputs | 0…10 V, 0…20 mA, 4…20 mA |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Protection (LED) | Yellow |
| Signal Indication Fault (LED) | Red |
| Communication | Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Terminal Type | Cable Clamp |
| Connecting Capacity Main Circuit | Hole Diameter 8.5 mm |
| Connecting Capacity Control Circuit | Rigid 1 x 2.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1 x 2.5 |
| Tightening Torque | Main Circuit 8 N·m |
| Product Main Type | PSTX37 |
| Function | Auto phase sequence detection, Automatic restart, Current limit, Current limit ramp, Dual current limit, Dynamic brake, Electricity metering, Electronic overload Time-to-cool, Emergency mode, Event log, Full voltage start, Jog with slow speed, forward and reverse, Keypad password, Kick start, Limp mode with two-phase motor control if one set of thyristors is shorted, Motor heating, Pre-start function, Pump cleaning, Real time clock, Sequence start, Soft start with torque control, Soft start with voltage ramp, Soft stop with torque control, Soft stop with voltage ramp, Stand still brake, Start reverse (external contactors), Thyristor runtime measurement, Torque limit, Voltage sags detection |
| Protection Function | Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection |
| Warning Details | Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning |
Technical UL/CSA 3
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 10 Hp, (220 ... 240 V AC) Three Phase 10 Hp, (440 ... 480 V AC) Three Phase 25 Hp, (550 ... 600 V AC) Three Phase 30 Hp |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Main Circuit 70.8 |
Show all 76 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA898104R7000 |
|---|---|
| Type designation | PSTX37-600-70 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500501320 |
| eCl@ss | 27370907 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
Environmental 1
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +70 °C |
|---|
Material Compliance 8
| REACH Declaration | 2CMT2022-006481 |
|---|---|
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 46ee42b5-0784-4f84-a200-fba43f921301 China |
| Simplified SCIP | 36faa4d8-1c31-4e13-8c3e-ec35844a8f91 Finland, 51bfadcd-200b-4a20-a679-4c2a1b638590 Belgium, 52e8ec7d-1d86-4387-9379-694a62306742 Germany, 53c720be-bb33-4258-92e4-312515464ca7 Poland, 58e2ac5d-d409-4238-b9a7-2ae5551475bc Denmark, 6fcba17b-1bd2-475d-bc62-0fde8c050b0f Czechia, 702b742e-98be-49f9-840a-cd2479b71d04 Portugal, 774f57ef-c4bc-4a95-a78b-f530bbcbbdbd Poland, 87c6a266-28bd-42dc-a2bf-cb4649e30803 Germany, 93cf86d7-5fdb-4420-aa19-1b69782eb00d Poland, 970c5387-054d-4abb-8df5-eecde6540036 Germany, a41816b5-d8de-4e19-bf8f-8ae167de5fb0 Spain, b0bf4357-3c28-4d52-86b3-bc62c2e72ad5 Netherlands, bc76b047-1a12-4e4d-bee7-233363a194bb Sweden, c149d8a4-da5c-4cf9-a7bf-469095ba16f3 France, c3033721-2a26-4c5c-a4d5-1396c4269264 Greece, c38b63e0-09d6-46f3-a73f-ee1cac2db202 Germany, c41214ec-cba0-473c-8582-19785586c94e Sweden, d37285ad-6c94-45b9-8436-3bb81b3ac0c9 Hungary, dfa0d889-a39a-4d1b-84b2-4c65cbc421a2 Germany, e6c4b553-4e9e-4454-a272-20d8a78a3ff0 France, e8bfbaa0-4d36-4faf-9b53-f4d3e2c0aeba Norway, f84e1af0-22c0-4613-a4ea-226b3dd3ee0f Bulgaria |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 3
| ETIM 7 | EC000640 - Soft starter |
|---|---|
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
Logistics 10
| Package Level 1 Width | 200 mm |
|---|---|
| Package Level 1 Depth / Length | 282 mm |
| Package Level 1 Height | 388 mm |
| Package Level 1 Gross Weight | 5.6 kg |
| Package Level 1 EAN | 7320500501320 |
| Package Level 1 Units | box 1 piece |
| Shipping weight | 5.6 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA898104R7000 1
-
Datasheet
SeriesDownload PDF: Data Sheet, Technical Information 1SFC132012C0201
Data Sheet, Technical Information 1SFC132012C0201
Other ratings
All 19 ratings in PSTX
ABB PSTX series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 15 kW | 30 A | 1SFA898103R7000 | PSTX30-600-70 | In stock | $817.71 | ||
| 18.5 kW | 37 A | 1SFA898104R7000 This part | PSTX37-600-70 | In stock | $903.41 | ||
| 22 kW | 45 A | 1SFA898105R7000 | PSTX45-600-70 | In stock | $955.18 | ||
| 30 kW | 60 A | 1SFA898106R7000 | PSTX60-600-70 | Low stock | $1,096.23 | ||
| 37 kW | 72 A | 1SFA898107R7000 | PSTX72-600-70 | In stock | $1,143.84 | ||
| 45 kW | 85 A | 1SFA898108R7000 | PSTX85-600-70 | In stock | $1,399.73 | ||
| 55 kW | 105 A | 1SFA898109R7000 | PSTX105-600-70 | In stock | $1,634.22 | ||
| 75 kW | 142 A | 1SFA898110R7000 | PSTX142-600-70 | In stock | $2,027.00 | ||
| 90 kW | 170 A | 1SFA898111R7000 | PSTX170-600-70 | In stock | $2,478.70 | ||
| 110 kW | 210 A | 1SFA898112R7000 | PSTX210-600-70 | In stock | $2,768.52 | ||
| 132 kW | 250 A | 1SFA898113R7000 | PSTX250-600-70 | In stock | $3,004.19 | ||
| 160 kW | 300 A | 1SFA898114R7000 | PSTX300-600-70 | In stock | $3,739.17 | ||
| 200 kW | 370 A | 1SFA898115R7000 | PSTX370-600-70 | Low stock | $4,550.92 | ||
| 250 kW | 470 A | 1SFA898116R7000 | PSTX470-600-70 | In stock | $5,590.61 | ||
| 315 kW | 570 A | 1SFA898117R7000 | PSTX570-600-70 | In stock | $6,799.90 | ||
| 400 kW | 720 A | 1SFA898118R7000 | PSTX720-600-70 | Low stock | $8,275.22 | ||
| 450 kW | 840 A | 1SFA898119R7000 | PSTX840-600-70 | Low stock | $9,095.89 | ||
| 560 kW | 1050 A | 1SFA898120R7000 | PSTX1050-600-70 | Low stock | $10,765.22 | ||
| 710 kW | 1250 A | 1SFA898121R7000 | PSTX1250-600-70 | Low stock | $12,460.14 |
Certifications
Certifications and standards
- CE
- CSA
- DNV
- RoHS
Quick answers
Questions about the PSTX37-600-70
What is the rated current of PSTX37-600-70?
The rated current of PSTX37-600-70 is 37 A.
Which supply voltage is PSTX37-600-70 rated for?
The rated operational voltage of PSTX37-600-70 is 208–600 V AC.
What motor power is PSTX37-600-70 rated for?
The rated motor power of PSTX37-600-70 is 18.5 kW.
Which control voltage does PSTX37-600-70 need?
The control voltage range of PSTX37-600-70 is 100–250 V.
What is the HS code of PSTX37-600-70 for customs?
The tariff (HS) code on file for PSTX37-600-70 is 853710.
What is the EAN of PSTX37-600-70?
The EAN (GTIN) of PSTX37-600-70 is 7320500501320.
Where does PSTX37-600-70 ship from, and how fast?
PSTX37-600-70 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
