- Part number
- 1SFA898110R7000
- Model no
- PSTX142-600-70
In stock · 16
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- CE
- CSA
- DNV
- RoHS
- UL

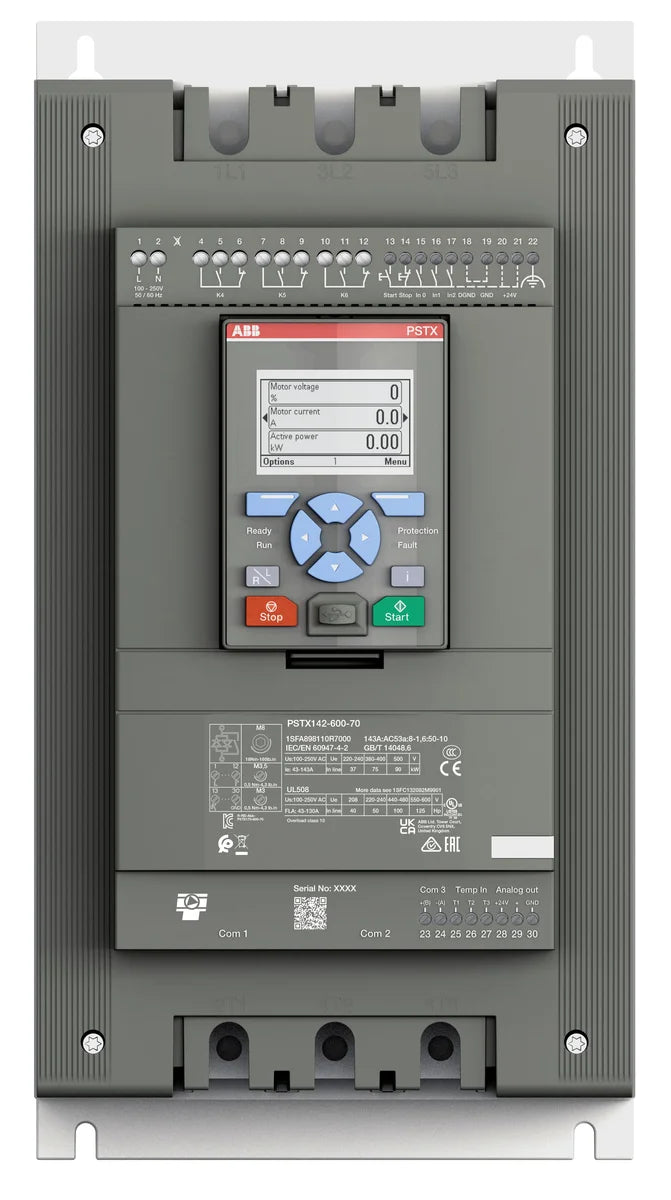

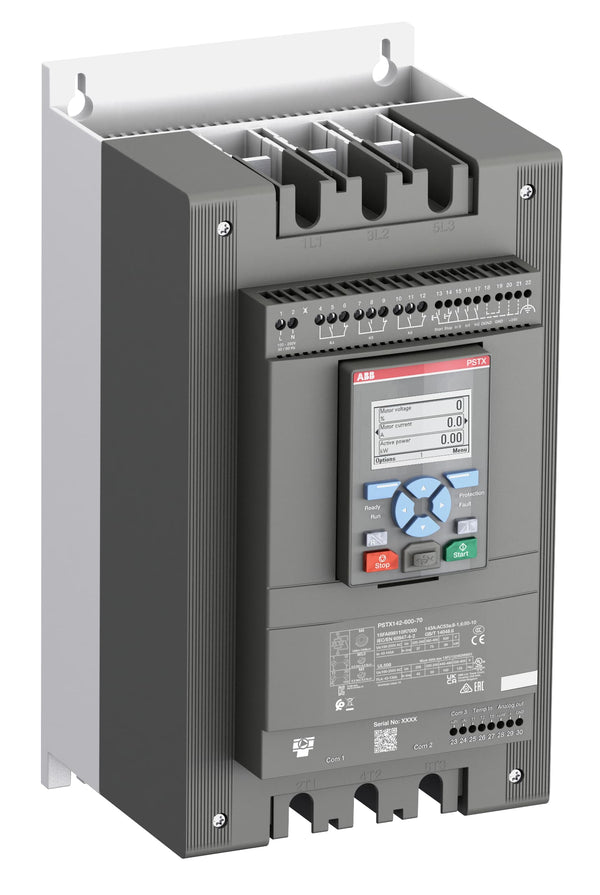

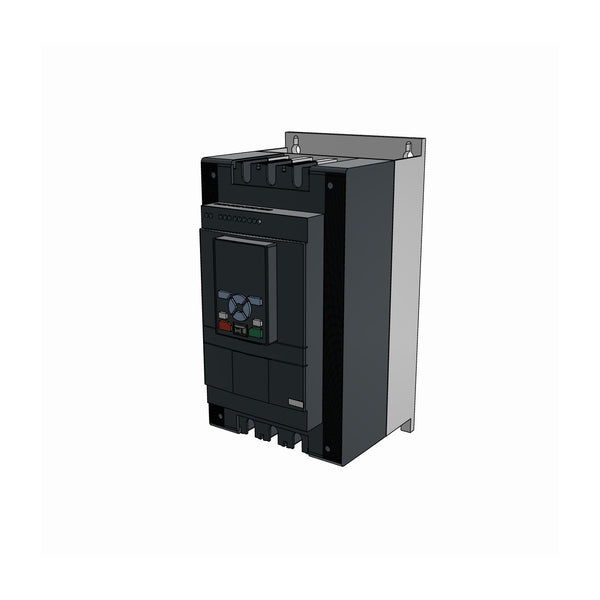

ABB 1SFA898110R7000 PSTX142-600-70 142A 208-600V AC 3P 75kW Softstarter
Three-phase soft starter for motors up to 75 kW at 400 V (142 A), 208–600 V AC, with built-in bypass, electronic overload and Modbus RTU.
Other ratings in PSTX
All 19 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 45 | 85 | 1SFA898108R7000 | In stock | $1,399.73 |
| 55 | 105 | 1SFA898109R7000 | In stock | $1,634.22 |
| 75 | 142 | 1SFA898110R7000This part | In stock | $2,027.00 |
| 90 | 170 | 1SFA898111R7000 | In stock | $2,478.70 |
| 110 | 210 | 1SFA898112R7000 | In stock | $2,768.52 |
Description
About the PSTX142-600-70
Alternatives
Comparable from other brands
About the PSTX142-600-70
Comparable from other brands
The ABB PSTX142-600-70 softstarter (SKU: 1SFA898110R7000) is a 3-pole, 142A electronic soft starter designed for smooth acceleration and deceleration of three-phase AC motors in demanding industrial environments. Rated for supply voltages of 208–600V AC with a control voltage range of 100–250 V AC, the PSTX142-600-70 delivers precise torque control and motor protection, making it a trusted solution for pump, fan, compressor, and conveyor applications. With a compact footprint of 199 × 377 × 283 mm and a net weight of 7 kg, this PSTX Series unit integrates efficiently into control panels and motor control centers.
Alternatives
Comparable from other brands
ATS480C14Y ATS480
Schneider Electric Schneider Electric ATS480C14Y Altivar ATS480 140 A 208-690 V 75 kW Soft Starter 75 kW · 140 A · 208–690 V AC Low stock $2,059.42
1SFA897110R7000 PSE142-600-70
ABB ABB 1SFA897110R7000 PSE142-600-70 142A 3P 208-600V AC Soft Starter 75 kW · 142 A · 208–600 V AC In stock $1,444.37Confirm with the datasheet before substitution.
Specification
Full specification
Dimensions 4
| Product Net Width | 199 mm |
|---|---|
| Product Net Height | 377 mm |
| Product Net Depth / Length | 283.3 mm |
| Product Net Weight | 7 kg |
Technical 37
| Rated Operational Voltage | 208 ... 600 V AC |
|---|---|
| Rated Control Supply Voltage (Us) | 100 ... 250 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz, Main Circuit 50 / 60 Hz |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 37 kW, (400 V) 75 kW, (500 V) 90 kW |
| Rated Operational Current - In-Line Connection (Ie) | 142 A |
| Rated Operational Power - Inside Delta Connection | at 230 V 75 kW, at 400 V 132 kW, at 500 V 160 kW |
| Rated Operational Current - Inside Delta Connection | 245 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Built-in electronic overload protection |
| Integrated Electronic Overload | Yes |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 10s |
| Ramp Time | 1 ... 120 s |
| Initial Voltage During Start | 10 ... 99 % |
| Step Down Voltage Special Ramp | 100 ... 10 % |
| Current Limit Function | 1.5 ... 7.5 xle |
| Switch for Inside Delta Connection | Yes |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | Yes |
| Overload Signal Relay | Yes |
| Analog Outputs | 0…10 V, 0…20 mA, 4…20 mA |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Protection (LED) | Yellow |
| Signal Indication Fault (LED) | Red |
| Communication | Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Terminal Type | Main Circuit: Bars |
| Connecting Capacity Main Circuit | Hole Diameter 8.5 mm |
| Connecting Capacity Control Circuit | Rigid 1 x 2.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1 x 2.5 |
| Tightening Torque | Main Circuit 14 N·m |
| Product Main Type | PSTX142 |
| Function | Auto phase sequence detection, Automatic restart, Current limit, Current limit ramp, Dual current limit, Dynamic brake, Electricity metering, Electronic overload Time-to-cool, Emergency mode, Event log, Full voltage start, Jog with slow speed, forward and reverse, Keypad password, Kick start, Limp mode with two-phase motor control if one set of thyristors is shorted, Motor heating, Pre-start function, Pump cleaning, Real time clock, Sequence start, Soft start with torque control, Soft start with voltage ramp, Soft stop with torque control, Soft stop with voltage ramp, Stand still brake, Start reverse (external contactors), Thyristor runtime measurement, Torque limit, Voltage sags detection |
| Protection Function | Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection |
| Warning Details | Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning |
Technical UL/CSA 3
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 40 Hp, (220 ... 240 V AC) Three Phase 50 Hp, (440 ... 480 V AC) Three Phase 100 Hp, (550 ... 600 V AC) Three Phase 125 Hp |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Main Circuit 123.9 |
Show all 76 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA898110R7000 |
|---|---|
| Type designation | PSTX142-600-70 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500501467 |
| eCl@ss | 27370907 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
Environmental 1
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +70 °C |
|---|
Material Compliance 8
| REACH Declaration | 2CMT2022-006481 |
|---|---|
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 26f21088-b8bb-4914-b092-1fc09456661d China |
| Simplified SCIP | 0ab76afe-9586-406c-b1d9-3f72d29c6360 Netherlands, 117db3bc-26f8-486b-9661-9213c47e0dce Germany, 13efe971-0aef-4a3e-b200-9388f7b13699 Sweden, 14290cdf-4981-4228-ac25-fbf6ff6bede1 Poland, 2a18edcd-ab8d-49d6-9e8e-a36742111f1c Belgium, 3833bc73-a767-402d-b8b2-abad0c0099a9 Norway, 3ac3b2ef-d72e-4baa-a85b-7a6308c05cd5 France, 3ce45bbe-7f17-4746-a062-621c143a1593 Belgium, 45148e2f-b3ab-4084-a4ff-2d3992dff4e3 Greece, 483327c0-4c3f-426a-8884-5793dc883e80 Germany, 4895692a-8d27-4479-86bf-173e094805d8 Finland, 693ca665-b359-42b9-8505-0a1d73f17bb1 Croatia, 721706c8-8f98-4edd-93f6-85eb76f49408 Sweden, 734b7456-6afc-4ba5-9eb1-e44eb712b188 Estonia, 7c8972af-46d8-45d8-9928-ca11c959706a Bulgaria, 84993a02-0bda-48c2-a072-0f582e778ff3 Hungary, 9601f0fb-71c8-46d6-901c-b0c11e41b94c Germany, 98705313-f7c3-4ad9-bc8e-c866590c7b4c Germany, a46c12be-e940-4ade-9322-97a2ddebbaed Portugal, a7d57835-a734-4c2d-9f77-81733f7491bf Hungary, ced2cf36-a96f-4b81-ac85-517042ee7ef1 Germany, d73af370-e733-4369-9550-2ae47c351b48 Poland, d8506a36-85a5-4e05-9a69-9b4c090cc148 Spain, e079558d-a47b-4f28-8edf-f04ab44fd258 France, e7f3ccdd-9d79-4c97-84ad-b4c479119f1b Poland, ef546eb4-0fda-49d8-947c-db988a7a5730 Czechia, f3952e38-6433-4473-9a54-aee6eac8f612 Denmark |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 3
| ETIM 7 | EC000640 - Soft starter |
|---|---|
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
Logistics 10
| Package Level 1 Width | 263 mm |
|---|---|
| Package Level 1 Depth / Length | 323 mm |
| Package Level 1 Height | 454 mm |
| Package Level 1 Gross Weight | 8.7 kg |
| Package Level 1 EAN | 7320500501467 |
| Package Level 1 Units | box 1 piece |
| Shipping weight | 8.7 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA898110R7000 1
-
Datasheet
SeriesDownload PDF: Data Sheet, Technical Information 1SFC132012C0201
Data Sheet, Technical Information 1SFC132012C0201
Other ratings
All 19 ratings in PSTX
ABB PSTX series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 15 kW | 30 A | 1SFA898103R7000 | PSTX30-600-70 | In stock | $817.71 | ||
| 18.5 kW | 37 A | 1SFA898104R7000 | PSTX37-600-70 | In stock | $903.41 | ||
| 22 kW | 45 A | 1SFA898105R7000 | PSTX45-600-70 | In stock | $955.18 | ||
| 30 kW | 60 A | 1SFA898106R7000 | PSTX60-600-70 | Low stock | $1,096.23 | ||
| 37 kW | 72 A | 1SFA898107R7000 | PSTX72-600-70 | In stock | $1,143.84 | ||
| 45 kW | 85 A | 1SFA898108R7000 | PSTX85-600-70 | In stock | $1,399.73 | ||
| 55 kW | 105 A | 1SFA898109R7000 | PSTX105-600-70 | In stock | $1,634.22 | ||
| 75 kW | 142 A | 1SFA898110R7000 This part | PSTX142-600-70 | In stock | $2,027.00 | ||
| 90 kW | 170 A | 1SFA898111R7000 | PSTX170-600-70 | In stock | $2,478.70 | ||
| 110 kW | 210 A | 1SFA898112R7000 | PSTX210-600-70 | In stock | $2,768.52 | ||
| 132 kW | 250 A | 1SFA898113R7000 | PSTX250-600-70 | In stock | $3,004.19 | ||
| 160 kW | 300 A | 1SFA898114R7000 | PSTX300-600-70 | In stock | $3,739.17 | ||
| 200 kW | 370 A | 1SFA898115R7000 | PSTX370-600-70 | Low stock | $4,550.92 | ||
| 250 kW | 470 A | 1SFA898116R7000 | PSTX470-600-70 | In stock | $5,590.61 | ||
| 315 kW | 570 A | 1SFA898117R7000 | PSTX570-600-70 | In stock | $6,799.90 | ||
| 400 kW | 720 A | 1SFA898118R7000 | PSTX720-600-70 | Low stock | $8,275.22 | ||
| 450 kW | 840 A | 1SFA898119R7000 | PSTX840-600-70 | Low stock | $9,095.89 | ||
| 560 kW | 1050 A | 1SFA898120R7000 | PSTX1050-600-70 | Low stock | $10,765.22 | ||
| 710 kW | 1250 A | 1SFA898121R7000 | PSTX1250-600-70 | Low stock | $12,460.14 |
Certifications
Certifications and standards
- CE
- CSA
- DNV
- RoHS
- UL
- cULus
- CCC
- CQC
- ABS
- Lloyd's Register
- ClassNK
- REACH
- IEC 60947-1
- IEC 60529
Quick answers
Questions about the PSTX142-600-70
What is the rated current of PSTX142-600-70?
The rated current of PSTX142-600-70 is 142 A.
Which supply voltage is PSTX142-600-70 rated for?
The rated operational voltage of PSTX142-600-70 is 208–600 V AC.
What motor power is PSTX142-600-70 rated for?
The rated motor power of PSTX142-600-70 is 75 kW.
Which control voltage does PSTX142-600-70 need?
The control voltage range of PSTX142-600-70 is 100–250 V.
What is the HS code of PSTX142-600-70 for customs?
The tariff (HS) code on file for PSTX142-600-70 is 853710.
What is the EAN of PSTX142-600-70?
The EAN (GTIN) of PSTX142-600-70 is 7320500501467.
Where does PSTX142-600-70 ship from, and how fast?
PSTX142-600-70 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
