How to Select and Size a Soft Starter for a Motor
How to size a soft starter correctly by full-load current, IEC 60947-4-2 duty class, starting torque against the load, control method, wiring topology and...
- Part number
- 1SFA898112R7000
- Model no
- PSTX210-600-70
In stock · 24
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- CE
- CSA
- RoHS
- CCC

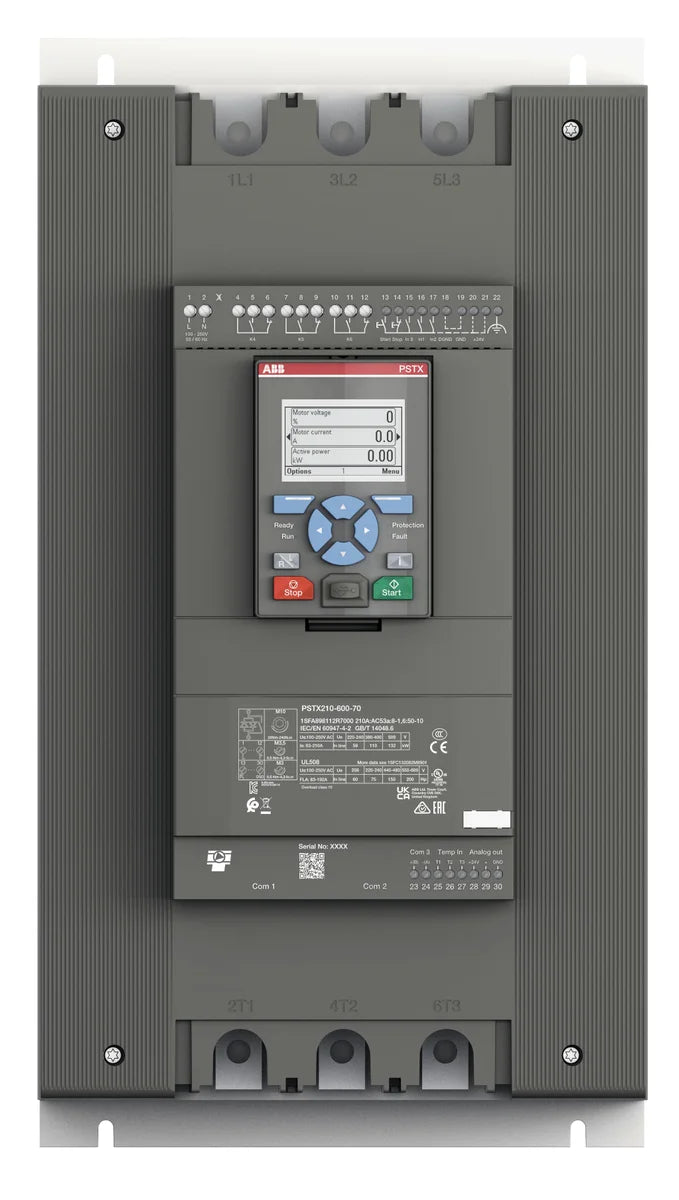

ABB 1SFA898112R7000 PSTX210-600-70 210A 208-600V AC 3P 110kW Soft Starter
Other ratings in PSTX
All 19 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 75 | 142 | 1SFA898110R7000 | In stock | $2,027.00 |
| 90 | 170 | 1SFA898111R7000 | In stock | $2,478.70 |
| 110 | 210 | 1SFA898112R7000This part | In stock | $2,768.52 |
| 132 | 250 | 1SFA898113R7000 | In stock | $3,004.19 |
| 160 | 300 | 1SFA898114R7000 | In stock | $3,739.17 |
Description
About the PSTX210-600-70
About the PSTX210-600-70
The ABB PSTX210-600-70 soft starter (SKU: 1SFA898112R7000) is a 210A, 3-phase electronic soft starter rated for 208–600V AC supply voltages, delivering up to 110kW of controlled motor power. Designed for demanding industrial applications, the PSTX210-600-70 provides smooth, ramp-controlled motor starts and stops, significantly reducing mechanical stress, inrush current, and torque peaks during motor startup. Part of ABB's advanced PSTX Series, it combines precise torque control with built-in motor protection functions.
Certifications & Standards
- IEC 60529: International standard for degrees of protection provided by enclosures (IP rating)
- IEC 60947-1: Low-voltage switchgear and controlgear — general rules
- EN 60529: European harmonized standard for enclosure protection (IP classification)
- CSA: Canadian Standards Association certification for North American markets
- REACH: EU regulation compliance for chemical substance restrictions
- RoHS: Restriction of Hazardous Substances directive compliance
- WEEE: Waste Electrical and Electronic Equipment directive compliance
- CCC: China Compulsory Certification for the Chinese market
- CE: European conformity marking for EU/EEA market access
Applications & Use Cases
The ABB PSTX210-600-70 is engineered for applications where controlled motor acceleration is critical. Typical deployments include pumps, fans, compressors, conveyors, and heavy-duty industrial machinery where direct-on-line starting would cause damaging current spikes or mechanical shock. The PSTX210-600-70's wide supply voltage range (208–600V AC) makes it suitable for both 230V and 400/480V industrial networks globally, eliminating the need for voltage-specific variants. With a 110–250V control circuit, it integrates directly into standard PLC and relay control panels without additional transformers.
Specification
Full specification
Dimensions 4
| Product Net Width | 258 mm |
|---|---|
| Product Net Height | 470 mm |
| Product Net Depth / Length | 279 mm |
| Product Net Weight | 13.3 kg |
Technical 37
| Rated Operational Voltage | 208 ... 600 V AC |
|---|---|
| Rated Control Supply Voltage (Us) | 100 ... 250 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz, Main Circuit 50 / 60 Hz |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 59 kW, (400 V) 110 kW, (500 V) 132 kW |
| Rated Operational Current - In-Line Connection (Ie) | 210 A |
| Rated Operational Power - Inside Delta Connection | at 230 V 102 kW, at 400 V 184 kW, at 500 V 250 kW |
| Rated Operational Current - Inside Delta Connection | 360 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Built-in electronic overload protection |
| Integrated Electronic Overload | Yes |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 10s |
| Ramp Time | 1 ... 120 s |
| Initial Voltage During Start | 10 ... 99 % |
| Step Down Voltage Special Ramp | 100 ... 10 % |
| Current Limit Function | 1.5 ... 7.5 xle |
| Switch for Inside Delta Connection | Yes |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | Yes |
| Overload Signal Relay | Yes |
| Analog Outputs | 0…10 V, 0…20 mA, 4…20 mA |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Protection (LED) | Yellow |
| Signal Indication Fault (LED) | Red |
| Communication | Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Terminal Type | Main Circuit: Bars |
| Connecting Capacity Main Circuit | Hole Diameter 10.2 mm |
| Connecting Capacity Control Circuit | Rigid 1 x 2.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1 x 2.5 |
| Tightening Torque | Main Circuit 25 N·m |
| Product Main Type | PSTX210 |
| Function | Auto phase sequence detection, Automatic restart, Current limit, Current limit ramp, Dual current limit, Dynamic brake, Electricity metering, Electronic overload Time-to-cool, Emergency mode, Event log, Full voltage start, Jog with slow speed, forward and reverse, Keypad password, Kick start, Limp mode with two-phase motor control if one set of thyristors is shorted, Motor heating, Pre-start function, Pump cleaning, Real time clock, Sequence start, Soft start with torque control, Soft start with voltage ramp, Soft stop with torque control, Soft stop with voltage ramp, Stand still brake, Start reverse (external contactors), Thyristor runtime measurement, Torque limit, Voltage sags detection |
| Protection Function | Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection |
| Warning Details | Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning |
Technical UL/CSA 3
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 60 Hp, (220 ... 240 V AC) Three Phase 75 Hp, (440 ... 480 V AC) Three Phase 150 Hp, (550 ... 600 V AC) Three Phase 200 Hp |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Main Circuit 221.3 |
Show all 74 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA898112R7000 |
|---|---|
| Type designation | PSTX210-600-70 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500501504 |
| eCl@ss | 27370907 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
Environmental 1
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +70 °C |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006481 |
|---|---|
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 3
| ETIM 7 | EC000640 - Soft starter |
|---|---|
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
Logistics 10
| Package Level 1 Width | 352 mm |
|---|---|
| Package Level 1 Depth / Length | 379 mm |
| Package Level 1 Height | 564 mm |
| Package Level 1 Gross Weight | 16.3 kg |
| Package Level 1 EAN | 7320500501504 |
| Package Level 1 Units | box 1 piece |
| Shipping weight | 16.3 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA898112R7000 1
-
Datasheet
SeriesDownload PDF: Data Sheet, Technical Information 1SFC132012C0201
Data Sheet, Technical Information 1SFC132012C0201
Other ratings
All 19 ratings in PSTX
ABB PSTX series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 15 kW | 30 A | 1SFA898103R7000 | PSTX30-600-70 | In stock | $817.71 | ||
| 18.5 kW | 37 A | 1SFA898104R7000 | PSTX37-600-70 | In stock | $903.41 | ||
| 22 kW | 45 A | 1SFA898105R7000 | PSTX45-600-70 | In stock | $955.18 | ||
| 30 kW | 60 A | 1SFA898106R7000 | PSTX60-600-70 | Low stock | $1,096.23 | ||
| 37 kW | 72 A | 1SFA898107R7000 | PSTX72-600-70 | In stock | $1,143.84 | ||
| 45 kW | 85 A | 1SFA898108R7000 | PSTX85-600-70 | In stock | $1,399.73 | ||
| 55 kW | 105 A | 1SFA898109R7000 | PSTX105-600-70 | In stock | $1,634.22 | ||
| 75 kW | 142 A | 1SFA898110R7000 | PSTX142-600-70 | In stock | $2,027.00 | ||
| 90 kW | 170 A | 1SFA898111R7000 | PSTX170-600-70 | In stock | $2,478.70 | ||
| 110 kW | 210 A | 1SFA898112R7000 This part | PSTX210-600-70 | In stock | $2,768.52 | ||
| 132 kW | 250 A | 1SFA898113R7000 | PSTX250-600-70 | In stock | $3,004.19 | ||
| 160 kW | 300 A | 1SFA898114R7000 | PSTX300-600-70 | In stock | $3,739.17 | ||
| 200 kW | 370 A | 1SFA898115R7000 | PSTX370-600-70 | Low stock | $4,550.92 | ||
| 250 kW | 470 A | 1SFA898116R7000 | PSTX470-600-70 | In stock | $5,590.61 | ||
| 315 kW | 570 A | 1SFA898117R7000 | PSTX570-600-70 | In stock | $6,799.90 | ||
| 400 kW | 720 A | 1SFA898118R7000 | PSTX720-600-70 | Low stock | $8,275.22 | ||
| 450 kW | 840 A | 1SFA898119R7000 | PSTX840-600-70 | Low stock | $9,095.89 | ||
| 560 kW | 1050 A | 1SFA898120R7000 | PSTX1050-600-70 | Low stock | $10,765.22 | ||
| 710 kW | 1250 A | 1SFA898121R7000 | PSTX1250-600-70 | Low stock | $12,460.14 |
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- CCC
Quick answers
Questions about the PSTX210-600-70
What is the rated current of PSTX210-600-70?
The rated current of PSTX210-600-70 is 210 A.
Which supply voltage is PSTX210-600-70 rated for?
The rated operational voltage of PSTX210-600-70 is 208–600 V AC.
What motor power is PSTX210-600-70 rated for?
The rated motor power of PSTX210-600-70 is 110 kW.
Which control voltage does PSTX210-600-70 need?
The control voltage range of PSTX210-600-70 is 100–250 V.
What is the HS code of PSTX210-600-70 for customs?
The tariff (HS) code on file for PSTX210-600-70 is 853710.
What is the EAN of PSTX210-600-70?
The EAN (GTIN) of PSTX210-600-70 is 7320500501504.
Where does PSTX210-600-70 ship from, and how fast?
PSTX210-600-70 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
