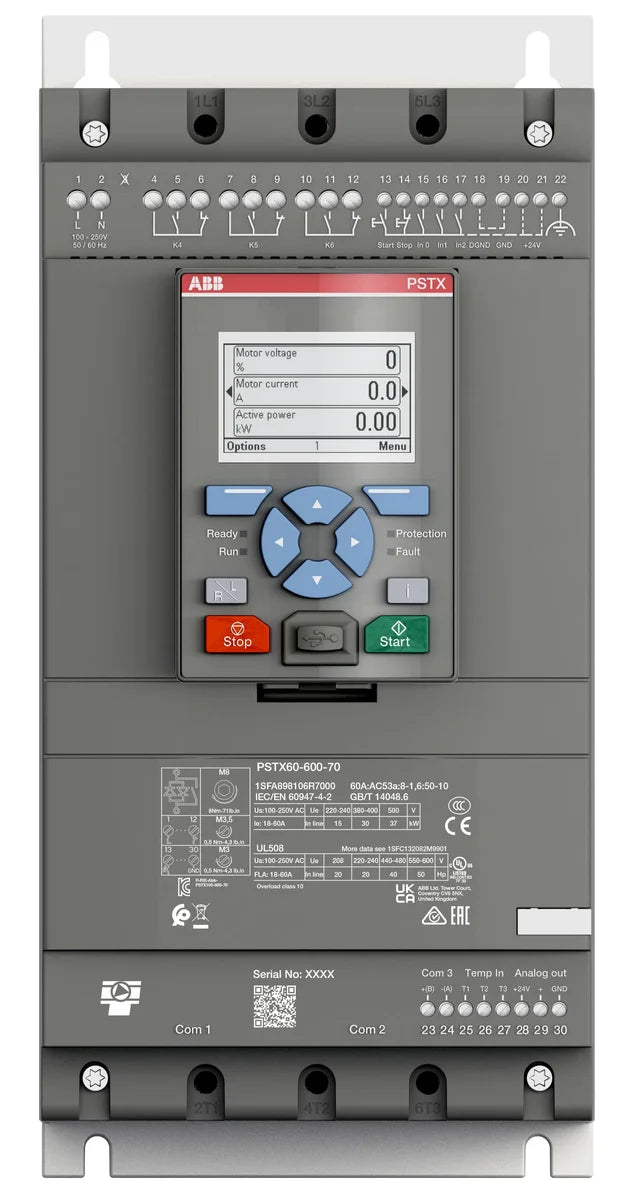

ABB 1SFA898106R7000 PSTX60-600-70 60A 208-600V AC 3P 30kW Soft Starter
Other ratings in PSTX
All 19 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 18.5 | 37 | 1SFA898104R7000 | In stock | $903.41 |
| 22 | 45 | 1SFA898105R7000 | In stock | $955.18 |
| 30 | 60 | 1SFA898106R7000This part | Low stock | $1,096.23 |
| 37 | 72 | 1SFA898107R7000 | In stock | $1,143.84 |
| 45 | 85 | 1SFA898108R7000 | In stock | $1,399.73 |
Description
About the PSTX60-600-70
About the PSTX60-600-70
The ABB PSTX60-600-70 soft starter (SKU: 1SFA898106R7000) is a 60 A, 3-pole electronic soft starter from the PSTX series, rated for 208–600 V AC supply and up to 30 kW motor power. Designed for smooth motor start and stop control in demanding industrial environments, the PSTX60-600-70 features a wide control voltage range of 110–250 V and compact dimensions suited for panel integration. It complies with IEC 60947-1 and holds CE, CCC, DNV, CSA, REACH, RoHS, and WEEE approvals for global deployment.
Certifications & Standards
- CE: Conformity with European Union safety, health, and environmental protection requirements
- CCC: China Compulsory Certification for electrical products sold in the Chinese market
- DNV: Det Norske Veritas approval for marine and offshore applications
- IEC 60947-1: International standard for low-voltage switchgear and controlgear — general rules
- CSA: Canadian Standards Association certification for North American market compliance
- REACH: Compliant with EU REACH regulation on chemical substance restrictions
- RoHS: Restriction of Hazardous Substances directive compliant — lead-free and eco-friendly construction
- WEEE: Waste Electrical and Electronic Equipment directive compliant for responsible end-of-life recycling
Applications & Use Cases
- Smooth starting and stopping of AC induction motors in pumps, fans, compressors, and conveyors
- Industrial automation control panels requiring reduced inrush current on motor start
- Marine and offshore installations (DNV certified) requiring reliable motor control
- HVAC systems and building services where soft start reduces mechanical and electrical stress
- Process industry applications demanding precise torque control during motor acceleration
Specification
Full specification
Dimensions 4
| Product Net Width | 150 mm |
|---|---|
| Product Net Height | 314 mm |
| Product Net Depth / Length | 198 mm |
| Product Net Weight | 4.6 kg |
Technical 37
| Rated Operational Voltage | 208 ... 600 V AC |
|---|---|
| Rated Control Supply Voltage (Us) | 100 ... 250 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC |
| Rated Frequency (f) | 50/60 Hz, Main Circuit 50 / 60 Hz |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 15 kW, (400 V) 30 kW, (500 V) 37 kW |
| Rated Operational Current - In-Line Connection (Ie) | 60 A |
| Rated Operational Power - Inside Delta Connection | at 230 V 30 kW, at 400 V 55 kW, at 500 V 75 kW |
| Rated Operational Current - Inside Delta Connection | 105 A |
| Service Factor Percentage | 100 % |
| Overload Protection | Built-in electronic overload protection |
| Integrated Electronic Overload | Yes |
| Starting Capacity at Maximum Rated Current Ie | 4xIe for 10s |
| Ramp Time | 1 ... 120 s |
| Initial Voltage During Start | 10 ... 99 % |
| Step Down Voltage Special Ramp | 100 ... 10 % |
| Current Limit Function | 1.5 ... 7.5 xle |
| Switch for Inside Delta Connection | Yes |
| Run Signal Relay | Yes |
| By-pass Signal Relay | Yes |
| Fault Signal Relay | Yes |
| Overload Signal Relay | Yes |
| Analog Outputs | 0…10 V, 0…20 mA, 4…20 mA |
| Signal Indication Ready to Start/Standby ON (LED) | Green |
| Signal Indication Running R (LED) | Green |
| Signal Indication Protection (LED) | Yellow |
| Signal Indication Fault (LED) | Red |
| Communication | Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Terminal Type | Cable Clamp |
| Connecting Capacity Main Circuit | Hole Diameter 8.5 mm |
| Connecting Capacity Control Circuit | Rigid 1 x 2.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1 x 2.5 |
| Tightening Torque | Main Circuit 8 N·m |
| Product Main Type | PSTX60 |
| Function | Auto phase sequence detection, Automatic restart, Current limit, Current limit ramp, Dual current limit, Dynamic brake, Electricity metering, Electronic overload Time-to-cool, Emergency mode, Event log, Full voltage start, Jog with slow speed, forward and reverse, Keypad password, Kick start, Limp mode with two-phase motor control if one set of thyristors is shorted, Motor heating, Pre-start function, Pump cleaning, Real time clock, Sequence start, Soft start with torque control, Soft start with voltage ramp, Soft stop with torque control, Soft stop with voltage ramp, Stand still brake, Start reverse (external contactors), Thyristor runtime measurement, Torque limit, Voltage sags detection |
| Protection Function | Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection |
| Warning Details | Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning |
Technical UL/CSA 3
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 20 Hp, (220 ... 240 V AC) Three Phase 20 Hp, (440 ... 480 V AC) Three Phase 40 Hp, (550 ... 600 V AC) Three Phase 50 Hp |
|---|---|
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Main Circuit 70.8 |
Show all 76 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA898106R7000 |
|---|---|
| Type designation | PSTX60-600-70 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500501368 |
| eCl@ss | 27370907 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
Environmental 1
| Ambient Air Temperature | Operation -25 ... +60 °C, Storage -40 ... +70 °C |
|---|
Material Compliance 8
| REACH Declaration | 2CMT2022-006481 |
|---|---|
| RoHS Declaration | 2CMT2022-006500 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | d1eab0cb-c4c6-4233-8fa0-1a9d9a9b7de8 China |
| Simplified SCIP | 1be38327-6bc0-435f-b85b-92355413197e Sweden, 2456f4d6-0b04-4764-84c1-ceed1c4298f9 Portugal, 26bea2cb-a55b-4ab0-8c97-37d208920562 Czechia, 34121c2c-109c-44d3-93b5-63045b79fb0c Netherlands, 3e4ef50c-3e4a-4924-bc2f-c3948095ed33 Belgium, 697b5d65-a258-472f-8b6d-329f6021f01c Sweden, 6f12cccd-48d3-4484-bad1-1439808508eb Germany, 75358d48-5dc1-40fb-9cb8-c870ba3369f3 Denmark, 75925315-0199-4423-9ef1-247cdc96e06b Germany, 791d3f9a-b2be-4c30-b493-8ab76fe67089 Spain, 9852dcc6-3b54-485a-8e51-005b457ceeaa Greece, b89a0ee2-2dbe-4575-a21a-30892cf35a21 Norway, bc690801-1ebb-4b58-a489-49e84d5dd73b Finland, dae018a9-0e79-4c61-9c27-57e65bba1cdf Germany, dc1c1752-cc55-4e93-8a7c-06ffa082ade9 Poland, e088cdbc-55c6-4209-95a2-617b3bed899c Germany, e16d0e23-32cb-4e91-837a-3891b856795d Germany, e1e2651f-72b4-4ea7-a9c6-6fe988b514e8 Poland, e5cfc3e1-3a85-4f9a-a796-b4c09a1bb682 Bulgaria, e744ca5f-64d0-47cc-9aeb-39b5c4f089ab France, e8398aa1-7452-4caa-99b4-213ff1f23b3d Hungary, f2801913-b8c6-4dc8-855f-3a3b1d64a27d France, ff520c8c-4709-4b82-80ba-fbe29e347c55 Poland |
| Toxic Substances Control Act - TSCA | 2CMT2023-006524 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 3
| ETIM 7 | EC000640 - Soft starter |
|---|---|
| eClass | V11.0 : 27370907 |
| UNSPSC | 39121521 |
Logistics 10
| Package Level 1 Width | 200 mm |
|---|---|
| Package Level 1 Depth / Length | 282 mm |
| Package Level 1 Height | 388 mm |
| Package Level 1 Gross Weight | 5.6 kg |
| Package Level 1 EAN | 7320500501368 |
| Package Level 1 Units | box 1 piece |
| Shipping weight | 5.6 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA898106R7000 1
-
Datasheet
SeriesDownload PDF: Data Sheet, Technical Information 1SFC132012C0201
Data Sheet, Technical Information 1SFC132012C0201
Other ratings
All 19 ratings in PSTX
ABB PSTX series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 15 kW | 30 A | 1SFA898103R7000 | PSTX30-600-70 | In stock | $817.71 | ||
| 18.5 kW | 37 A | 1SFA898104R7000 | PSTX37-600-70 | In stock | $903.41 | ||
| 22 kW | 45 A | 1SFA898105R7000 | PSTX45-600-70 | In stock | $955.18 | ||
| 30 kW | 60 A | 1SFA898106R7000 This part | PSTX60-600-70 | Low stock | $1,096.23 | ||
| 37 kW | 72 A | 1SFA898107R7000 | PSTX72-600-70 | In stock | $1,143.84 | ||
| 45 kW | 85 A | 1SFA898108R7000 | PSTX85-600-70 | In stock | $1,399.73 | ||
| 55 kW | 105 A | 1SFA898109R7000 | PSTX105-600-70 | In stock | $1,634.22 | ||
| 75 kW | 142 A | 1SFA898110R7000 | PSTX142-600-70 | In stock | $2,027.00 | ||
| 90 kW | 170 A | 1SFA898111R7000 | PSTX170-600-70 | In stock | $2,478.70 | ||
| 110 kW | 210 A | 1SFA898112R7000 | PSTX210-600-70 | In stock | $2,768.52 | ||
| 132 kW | 250 A | 1SFA898113R7000 | PSTX250-600-70 | In stock | $3,004.19 | ||
| 160 kW | 300 A | 1SFA898114R7000 | PSTX300-600-70 | In stock | $3,739.17 | ||
| 200 kW | 370 A | 1SFA898115R7000 | PSTX370-600-70 | Low stock | $4,550.92 | ||
| 250 kW | 470 A | 1SFA898116R7000 | PSTX470-600-70 | In stock | $5,590.61 | ||
| 315 kW | 570 A | 1SFA898117R7000 | PSTX570-600-70 | In stock | $6,799.90 | ||
| 400 kW | 720 A | 1SFA898118R7000 | PSTX720-600-70 | Low stock | $8,275.22 | ||
| 450 kW | 840 A | 1SFA898119R7000 | PSTX840-600-70 | Low stock | $9,095.89 | ||
| 560 kW | 1050 A | 1SFA898120R7000 | PSTX1050-600-70 | Low stock | $10,765.22 | ||
| 710 kW | 1250 A | 1SFA898121R7000 | PSTX1250-600-70 | Low stock | $12,460.14 |
Certifications
Certifications and standards
- CE
- CSA
- DNV
- RoHS
Quick answers
Questions about the PSTX60-600-70
What is the rated current of PSTX60-600-70?
The rated current of PSTX60-600-70 is 60 A.
Which supply voltage is PSTX60-600-70 rated for?
The rated operational voltage of PSTX60-600-70 is 208–600 V AC.
What motor power is PSTX60-600-70 rated for?
The rated motor power of PSTX60-600-70 is 30 kW.
Which control voltage does PSTX60-600-70 need?
The control voltage range of PSTX60-600-70 is 100–250 V.
What is the HS code of PSTX60-600-70 for customs?
The tariff (HS) code on file for PSTX60-600-70 is 853710.
What is the EAN of PSTX60-600-70?
The EAN (GTIN) of PSTX60-600-70 is 7320500501368.
Where does PSTX60-600-70 ship from, and how fast?
PSTX60-600-70 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
