Contactors: ABB, Schneider, and Siemens Power Contactor Selection
A contactor is one of the most vital components in industrial and commercial electrical systems, functioning as an electrically controlled switch used for rapidly and repeatedly switching a power circuit. These devices are essential Power Contactor components, used primarily for controlling large electric loads such as motors, heating elements, lighting systems, and capacitor banks. Unlike traditional manual switches, the electrical contactor can be controlled remotely, automatically, or via low-power signals, making it indispensable for automation and safety. At Stoklink, we offer a comprehensive range of these critical devices, featuring reliable solutions from industry leaders, including ABB Contactor, Schneider Contactor, and Siemens.
AC Contactor and DC Contactor Types: Key Applications for Power and Motor Contactor
Contactors are broadly classified based on the type of current they are primarily designed to switch and the type of current used to energize their coil. Correct selection ensures maximum lifespan and efficiency for both the contactor and the controlled equipment.
AC Contactor Performance and Industrial Motor Control
An AC Contactor is specifically designed to switch alternating current loads. It is the most common type used in industrial environments, particularly for controlling three-phase induction motors. The design of the AC contactor ensures reliable arc extinction during switching cycles where the AC naturally passes through zero. The versatility and robustness of the AC Contactor make it a fundamental component in motor starter panels, HVAC control, and high-intensity discharge lighting circuits. Their ability to handle high currents and frequent switching operations is critical in automated production lines.
DC Contactor Reliability in Specialized Circuits
In contrast, a DC Contactor is designed to switch direct current loads. DC applications often require more specialized arc suppression techniques, as the current does not naturally extinguish the arc by crossing zero. DC Contactor units are vital in applications such as battery systems, solar power installations, uninterruptible power supplies (UPS), and electric vehicles. They are also frequently used within control circuits for both AC and DC systems, providing isolated control switching when the coil requires a specific DC voltage. The inherent reliability of a dedicated DC Power Contactor ensures safe and efficient power management in sensitive DC environments.
Key Electrical Contactor Selection Criteria: Poles, Auxiliary Blocks, and Contactor Relay Functions
Beyond the primary current rating, several key features dictate the suitability of an electrical contactor for a given task. These factors include the required coil voltage (AC or DC), the number of poles needed for the load (e.g., 3-pole for three-phase motors), and the specific utilization category. Evaluating the mechanical endurance and breaking capacity ensures the contactor can reliably handle the system's operational demands and fault protection requirements.
The Standard 3 Pole Contactor for Three-Phase Loads
The most widely used configuration for motor control is the 3-pole contactor. This configuration is standardized for switching the three phases required by typical industrial motors. The contactor’s poles must be adequately rated for the motor's operating current and must adhere to relevant utilization categories (e.g., AC-3 for cage motors). A reliable 3-pole contactor ensures synchronous making and breaking of the main power lines, protecting the motor from phase loss or unbalance. For installations requiring neutral switching or additional load isolation, 4-pole versions are also available.
Extending Functionality with Contactor Relay and Auxiliary Contacts

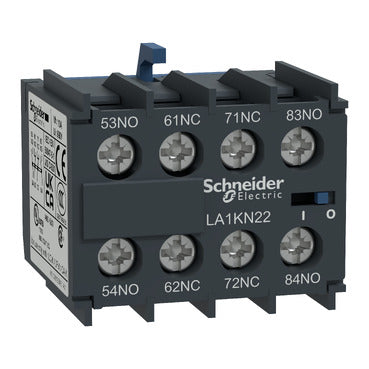

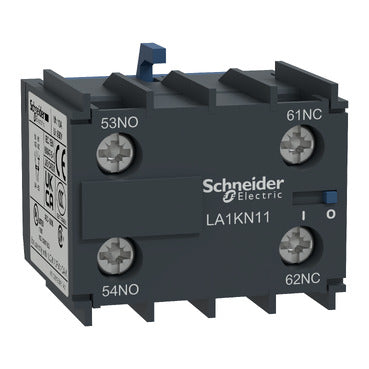

Auxiliary contacts are small, lower-rated contacts mechanically linked to the main poles of the contactor. These contacts are crucial for integrating the contactor into the larger control logic. They often function as a contactor relay, used for interlocking, providing feedback on the main contactor's status (open/closed), or establishing self-holding circuits. For complex automation schemes, dedicated control contactor relay units are used to manage signaling circuits, allowing low-power inputs to control multiple interlocking points without handling the main power current.
Leading Power Contactor Brands: ABB Contactor, Schneider Contactor, and Siemens
The quality and design integrity of the brand play a significant role in the performance and longevity of the Motor Contactor.
-
ABB Contactor Solutions (AF Series): The ABB Contactor portfolio, particularly the AF Series, is recognized for setting new standards in efficiency. These contactors feature innovative electronic coil technology, which significantly reduces power consumption and ensures reliable operation across a wide voltage range, simplifying inventory and improving energy efficiency in large panels.
-

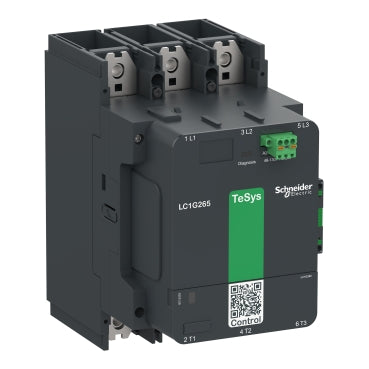

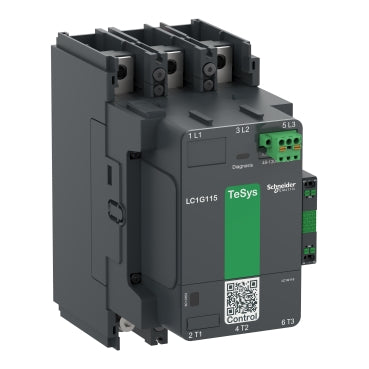

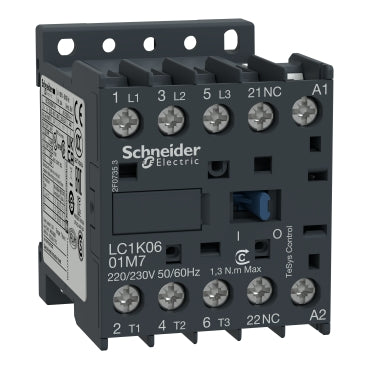

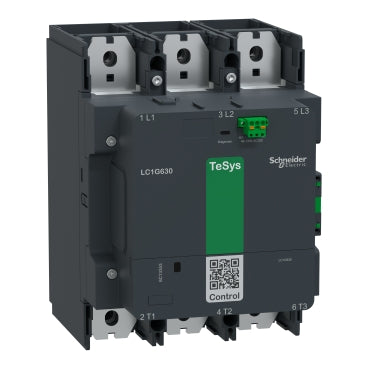

Schneider Contactor Reliability (LC1D Series): The TeSys Schneider Contactor range, exemplified by the widely adopted LC1D series, is renowned for its compact size, robust build, and exceptional reliability. Schneider Contactor accessories and modularity allow for seamless integration with motor protection circuit breakers and thermal overload relays.
-
Siemens Contactor Precision (3RT Series): Siemens products, such as the 3RT series, offer precision engineering and a modular system designed for rapid integration into standardized control panels. Their reliable operation and wide range of certified applications make them a trusted choice for industrial machinery worldwide.
Find Your Ideal Contactor at Stoklink
Effective power switching and motor control are fundamental to maximizing operational uptime and ensuring personnel safety. By choosing the correct electrical contactor, whether a general-purpose AC Contactor or a specialized DC Contactor, you establish a precise and reliable control system. Stoklink provides access to the complete range of quality Power Contactor solutions from leading manufacturers, guaranteeing that every 3-pole contactor and associated control accessory meets the highest standards for demanding industrial applications. You can get our comprehensive range and select the ideal Contactor solution to ensure precise power switching and continuous operation for your system.
