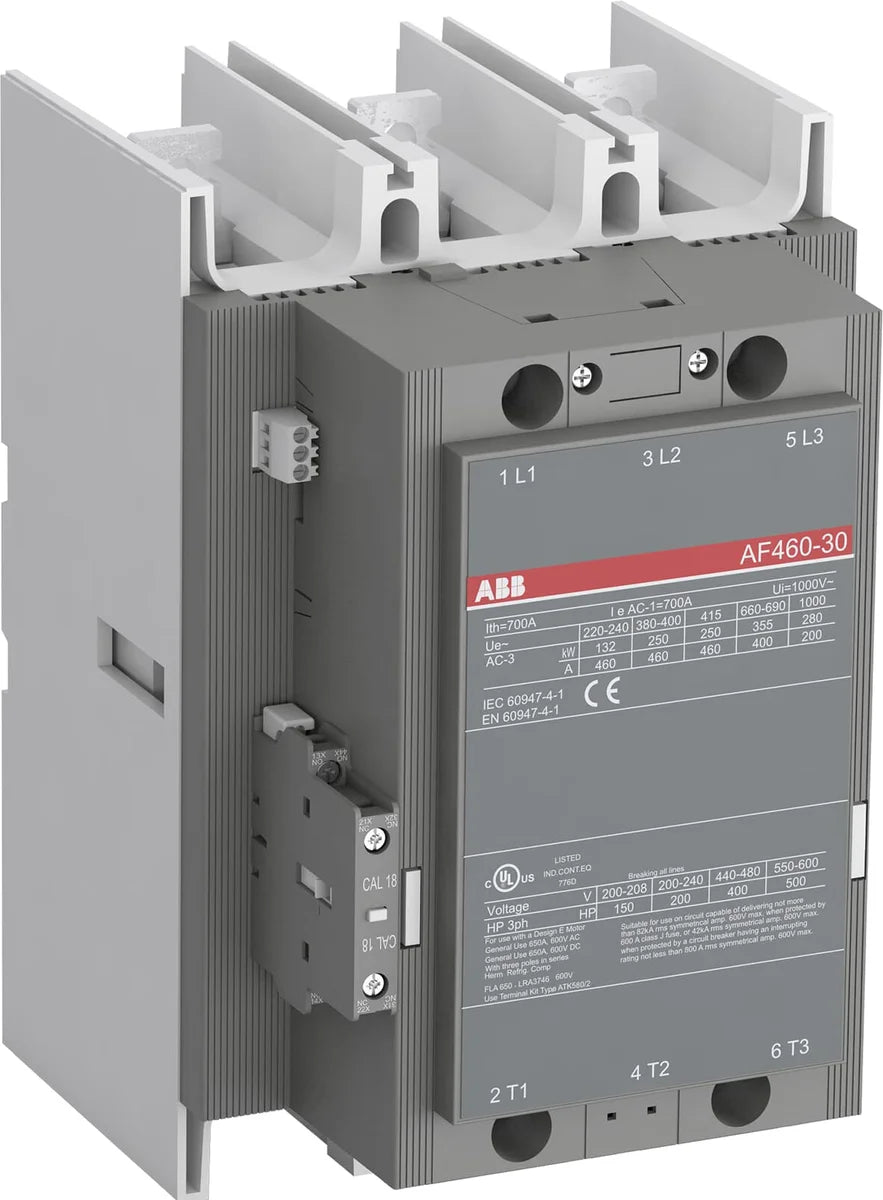

ABB 1SFL597001R7011 AF460-30-11-70 3-Pole 700A 1000V AC-1 100-250V Coil Power Contactor AC Switching

The ABB AF460-30-11-70 power contactor (SKU: 1SFL597001R7011) is a heavy-duty 3-pole AC switching contactor rated at 700 A (AC-1) and up to 1000 V IEC, designed for demanding industrial motor control and load switching applications. With a wide-range coil accepting 100–250 V AC/DC at 50/60 Hz, the AF460-30-11-70 eliminates the need for multiple coil variants and simplifies global installation. Rated at 250 kW at 400 V AC (AC-3), this contactor is engineered for continuous heavy industrial duty in control panels, motor starters, and automation systems.

Technical Specifications

Certifications & Standards

• CE: Conformité Européenne — meets EU safety, health, and environmental requirements
• UKCA: UK Conformity Assessed — approved for Great Britain market post-Brexit
• cULus: Underwriters Laboratories — certified for both US and Canadian markets
• CSA: Canadian Standards Association — Canadian electrical safety approval
• CQC: China Quality Certification — approved for Chinese market
• KC: Korea Certification — approved for South Korean market
• ABS: American Bureau of Shipping — marine and offshore certification
• BV: Bureau Veritas — international classification society approval
• DNV: Det Norske Veritas — marine and energy industry certification
• LR: Lloyd's Register — marine and industrial safety certification
• RINA: Registro Italiano Navale — Italian naval and marine certification
• PRS: Polish Register of Shipping — marine classification approval
• CCS: China Classification Society — Chinese marine certification
• LOVAG: Low Voltage Agreement Group — European low voltage certification
• IEC 60947-4: International standard for contactors and motor starters
• IEC 60529: International standard for degrees of protection (IP ratings)
• IEC 60947-1: General rules for low-voltage switchgear and controlgear
• IEC 60068-2: Environmental testing standard
• EN 45555: General methods for the assessment of the recyclability and recoverability of electrical products
• UL 2799: Zero Waste to Landfill standard
• REACH: Compliant with EU regulation on chemicals (EC 1907/2006)
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• WEEE: Waste Electrical and Electronic Equipment Directive compliant

Applications & Use Cases

• Heavy-duty motor starting and stopping in industrial plants
• Large pump and fan motor control in HVAC and water treatment
< li>Load switching in power distribution panels and motor control centres (MCCs)
• Offshore and marine electrical installations requiring ABS, DNV, BV, LR, RINA, PRS, or CCS approval
• Industrial automation and process control systems
• Resistive and inductive load switching up to 700 A AC-1
