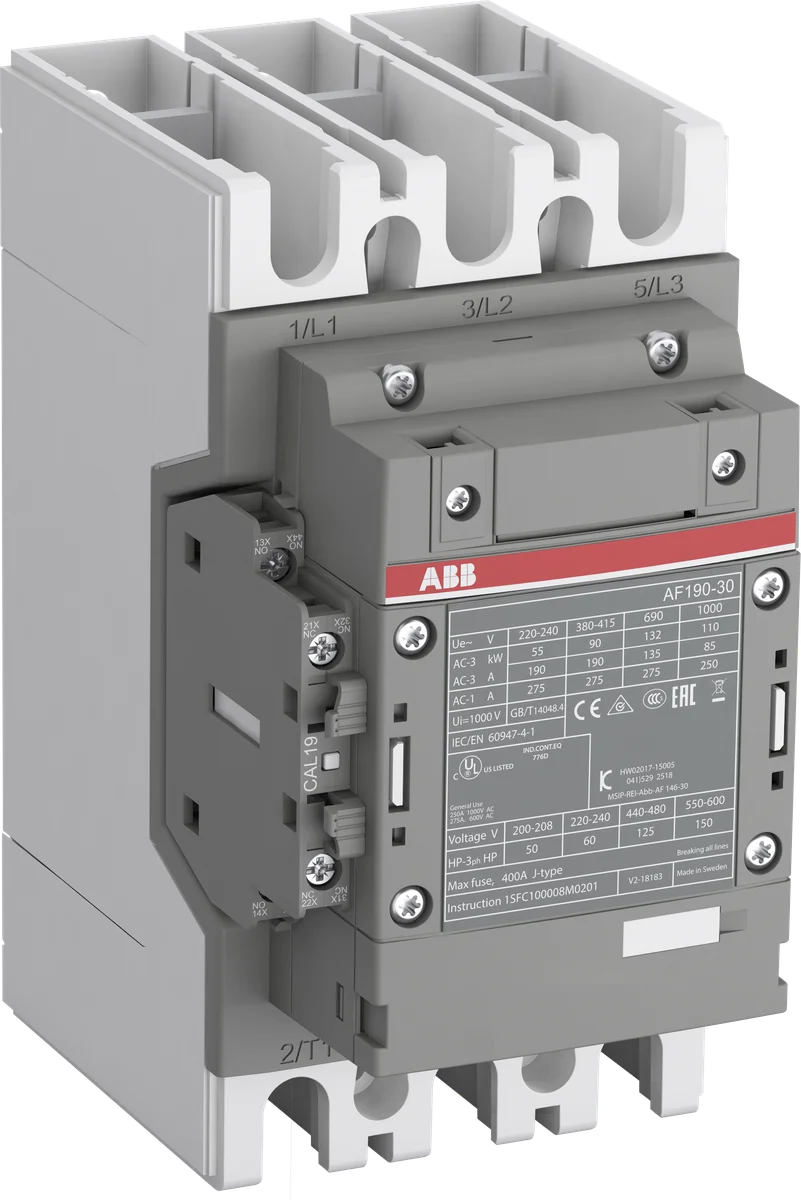

The ABB AF190-30-11-13 power contactor (SKU: 1SFL487002R1311) is a 3-pole AC switching contactor rated at 275 A (AC-1) and up to 1000 V IEC, engineered for demanding industrial motor control and power switching applications. Delivering 90 kW at 400 V AC (AC-3) and 125 hp at 480 V UL, the AF190-30-11-13 belongs to ABB's proven AF contactor series and is built to operate reliably across heavy-duty automation and control panel environments.
| Product Net Width | 105 mm |
|---|---|
| Product Net Depth / Length | 152 mm |
| Product Net Height | 196 mm |
| Product Net Weight | 2.4 kg |
| Dimension Diagram | 1SFB535001G1056.pdf |
| Number of Main Contacts NO | 3 |
|---|---|
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 3P |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 275 A |
| Rated Operational Current AC-1 (Ie) | (1000 V) 40 °C 250 A, (1000 V) 60 °C 225 A, (1000 V) 70 °C 185 A, (690 V) 40 °C 275 A, (690 V) 60 °C 250 A, (690 V) 70 °C 200 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 60 °C 190 A, (440 V) 60 °C 190 A, (500 V) 60 °C 156 A, (690 V) 60 °C 85 A, (1000 V) 60 °C 85 A, (380 / 400 V) 60 °C 190 A, (220 / 230 / 240 V) 60 °C 190 A |
| Rated Operational Current AC-3e (Ie) | (415 V) 60 °C 190 A, (440 V) 60 °C 190 A, (500 V) 60 °C 135 A, (690 V) 60 °C 135 A, (1000 V) 60 °C 85 A, (380 / 400 V) 60 °C 190 A, (220 / 230 / 240 V) 60 °C 190 A |
| Rated Operational Current DC-1 (Ie) | (110 V) 2 Poles in Series, 40 °C 250 A, (220 V) 3 Poles in Series, 40 °C 250 A |
| Rated Operational Current DC-3 (Ie) | (110 V) 2 Poles in Series, 40 °C 250 A, (220 V) 3 Poles in Series, 40 °C 250 A |
| Rated Operational Current DC-5 (Ie) | (110 V) 2 Poles in Series, 40 °C 250 A, (220 V) 3 Poles in Series, 40 °C 250 A |
| Rated Operational Power AC-3 (Pe) | (415 V) 90 kW, (440 V) 110 kW, (500 V) 110 kW, (690 V) 132 kW, (1000 V) 110 kW, (380 / 400 V) 90 kW, (220 / 230 / 240 V) 55 kW |
| Rated Operational Power AC-3e (Pe) | (415 V) 90 kW, (440 V) 110 kW, (500 V) 110 kW, (690 V) 132 kW, (1000 V) 110 kW, (380 / 400 V) 90 kW, (220 / 230 / 240 V) 55 kW |
| Rated Breaking Capacity AC-3 | 8 x Ie AC-3 |
| Rated Breaking Capacity AC-3e | 8.5 x Ie AC-3e |
| Rated Making Capacity AC-3 | 10 x Ie AC-3 |
| Rated Making Capacity AC-3e | 12 x Ie AC-3e |
| Short-Circuit Protective Devices | gG Type Fuses 355 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1520 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 275 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 621 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1900 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 878 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 3300 A, cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 2200 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V, acc. to UL/CSA 1000 V |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Maximum Electrical Switching Frequency | (AC-1) 300 cycles per hour, (AC-2 / AC-4) 150 cycles per hour, (AC-3) 300 cycles per hour |
| Mechanical Durability | 5 million |
| Maximum Mechanical Switching Frequency | 300 cycles per hour |
| Coil Operating Limits | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| Rated Control Circuit Voltage (Uc) | 50 Hz 100 ... 250 V, 60 Hz 100 ... 250 V, DC Operation 100 ... 250 V |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 28.1 V·A, Holding at Max. Rated Control Circuit Voltage 50 Hz 2.5 W, Holding at Max. Rated Control Circuit Voltage 60 Hz 28.1 V·A, Holding at Max. Rated Control Circuit Voltage 60 Hz 2.5 W, Holding at Max. Rated Control Circuit Voltage DC 3.7 W, Pull-in at Max. Rated Control Circuit Voltage 50 Hz 315 V·A, Pull-in at Max. Rated Control Circuit Voltage 60 Hz 315 V·A, Pull-in at Max. Rated Control Circuit Voltage DC 389 V·A, Pull-in at Max. Rated Control Circuit Voltage DC 389 W |
| Power Loss | at Rated Operating Conditions AC-1 per Pole 9 W, at Rated Operating Conditions AC-3 per Pole 4 W |
| Operate Time | Between Coil De-energization and NO Contact Opening 37 ... 47 ms, Between Coil Energization and NO Contact Closing 25 ... 55 ms |
| Connecting Capacity Main Circuit | Flexible 2 x 50 ... 95 mm², Rigid Al-Cable 1 x 95 ... 185 mm², Rigid Cu-Cable 1 x 6 ... 150 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible 2x0.75 ... 2.5 mm², Solid 2 x 1 ... 4 mm², Stranded 2 x 1 .... 4 mm² |
| Connecting Capacity | Flexible 1 x 6 ... 120 mm², Rigid Al-Cable 1 x 95 ... 185 mm², Rigid Cu-Cable 1 x 6 ... 150 mm² |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Tightening Torque | Cable Lug 18 N·m, Main Circuit 14 ... 31 N·m |
| Terminal Type | Main Circuit: Bars |
| Product Name | Block Contactor |
| Maximum Operating Voltage UL/CSA | Main Circuit 1000 V |
|---|---|
| General Use Rating UL/CSA | (1000 V AC) 250 A, (600 V AC) 275 A |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 50 hp, (208 V AC) Three Phase 50 hp, (220 ... 240 V AC) Three Phase 60, (440 ... 480 V AC) Three Phase 125 hp, (550 ... 600 V AC) Three Phase 150 hp |
| Full Load Amps Motor Use | (440 ... 480 V AC) Three Phase 156 A, (550 ... 600 V AC) Three Phase 144 A |
| Part number | 1SFL487002R1311 |
|---|---|
| Type designation | AF190-30-11-13 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500480434 |
| eCl@ss | 27371003 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C, Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C, Close to Contactor for Storage -40 ... 70 °C |
|---|---|
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| REACH Declaration | 2CMT2021-006202 |
|---|---|
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Simplified SCIP | 086c4765-1907-4567-beba-65ba0cdafc0d Hungary, 12196350-b1e8-437e-be8e-6946ac857835 China, 13ddfbd2-bb11-4e6a-bcdd-9a4ae3c7c797 Norway, 157b8d3c-a504-4704-baa1-e1d74b07479e Romania, 1f71a4bd-24b7-4de3-8e28-efaf3ae7d6c0 Poland, 3a478665-984d-4b11-8a1d-25b05340273d Netherlands, 5c4ab054-6e4d-4539-b186-fc190aa94580 France, 5dd66faf-42ef-4e77-a210-5a5f28e8428d Denmark, 8052817b-953f-4181-992b-b7e88e2275b9 Germany, 84256b81-76d2-4e1d-8e45-9048d6720284 Finland, a1f7a125-062b-4ff9-af71-36f05ed7f793 Estonia, b78ca67c-fe2d-4b69-bd72-bb06676a6f75 Greece, b964b243-2743-4d0a-ad98-e67c12db3c68 Czechia, c0a613fe-736e-42fc-b3bd-b13024559208 Bulgaria, c5e1058b-fe83-406a-b4de-aad1392d3dc1 Sweden, cd4fcb06-8531-4dd2-a8c9-128166b1742b Portugal, d3590dab-b0df-4331-87b8-104341fce807 Croatia, e019c32d-a1f2-47e4-91fe-f93310f163a6 Belgium, e31cc978-12a5-4d16-ac41-d42f1cba6dda Spain |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ETIM 7 | EC000066 - Power contactor, AC switching |
|---|---|
| eClass | V11.0 : 27371003 |
| UNSPSC | 39121529 |
| E-Number (Sweden) | 3210134 |
| Package Level 1 Units | box 1 piece |
|---|---|
| Package Level 1 Width | 160 mm |
| Package Level 1 Depth / Length | 258 mm |
| Package Level 1 Height | 235 mm |
| Package Level 1 Gross Weight | 3 kg |
| Package Level 1 EAN | 7320500480434 |
| Shipping weight | 3.0 kg |
| Ships from | Türkiye |
| Dispatch | 10 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of AF190-30-11-13 is 275 A.
The rated operational voltage of AF190-30-11-13 is 1000 V AC.
The rated motor power of AF190-30-11-13 is 90 kW.
The tariff (HS) code on file for AF190-30-11-13 is 85364900.
The EAN (GTIN) of AF190-30-11-13 is 7320500480434.
