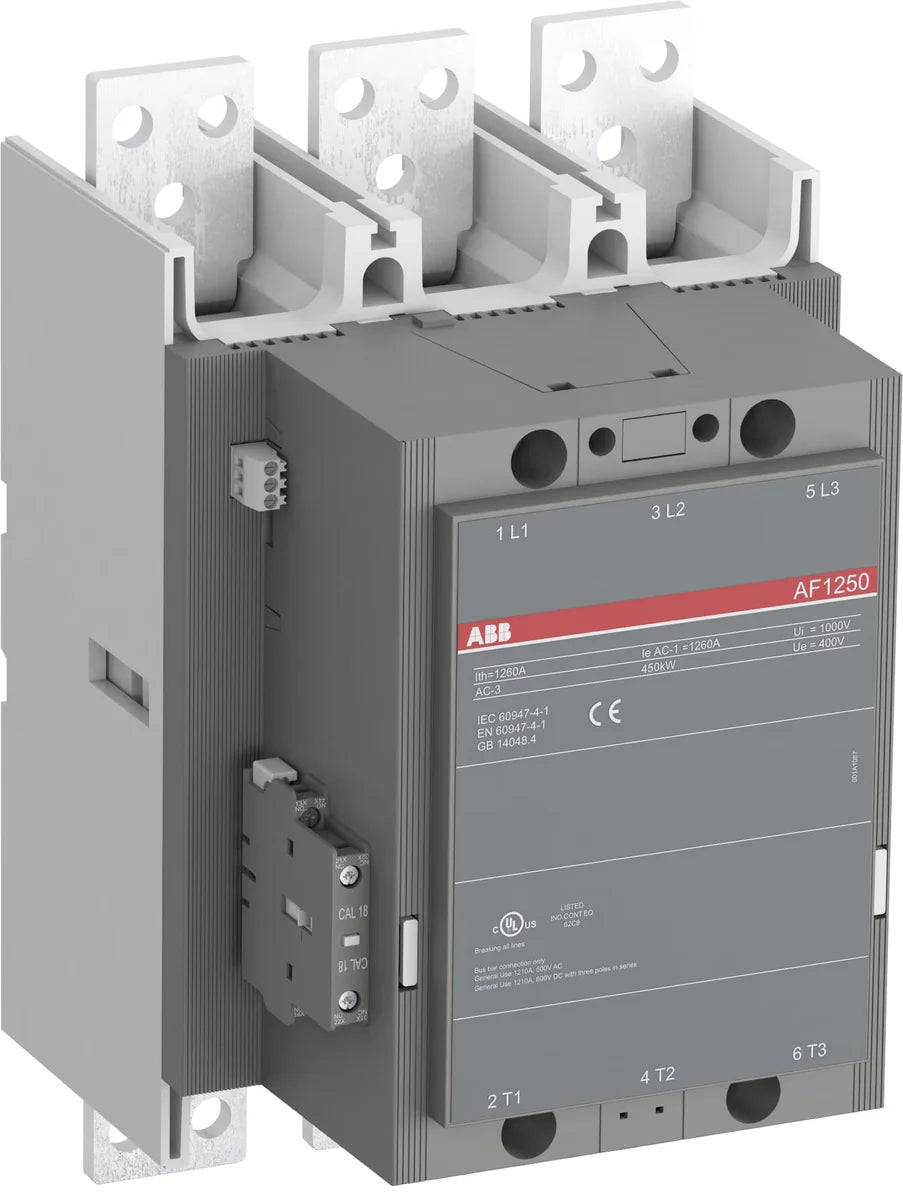

ABB 1SFL647001R7011 AF1250-30-11-70 3-Pole 1260A 1000V AC/DC Coil 100-250V Power Contactor AC Switching

The ABB AF1250-30-11-70 (SKU: 1SFL647001R7011) is a heavy-duty 3-pole power contactor rated for AC switching applications at up to 1260 A (AC-1) and 1000 V IEC, designed for demanding industrial power distribution, motor control, and load switching tasks. Part of ABB's proven AF-series contactor range, the AF1250-30-11-70 features a wide-range AC/DC coil accepting 100–250 V, making it suitable for flexible global deployment across diverse control systems.

Technical Specifications

Certifications & Standards

• CE: Compliant with European low-voltage and EMC directives
• UKCA: UK Conformity Assessed for post-Brexit Great Britain market
• cULus: Listed for both US and Canadian markets by UL
• UL: UL-listed per applicable UL standards
• UL 2799: Certified per UL 2799 requirements
• CQC: China Quality Certification for the Chinese market
• DNV: Det Norske Veritas type approval for marine applications
• KC: Korea Certification Mark for South Korean market
• LR: Lloyd's Register type approval for marine & offshore
• PRS: Polish Register of Shipping type approval
• RINA: Registro Italiano Navale type approval for marine use
• VDE: Verified by Verband der Elektrotechnik (Germany)
• CSA: Canadian Standards Association approval
• IEC 60947-1: General rules for low-voltage switchgear and controlgear
• IEC 60947-4 / IEC60947-4: Contactors and motor starters — electromechanical contactors
• IEC 60947-5: Control circuit devices and switching elements
• IEC 60529 / EN 60529: Degrees of protection provided by enclosures (IP Code)
• IEC 60068-2: Environmental testing — vibration, temperature, humidity
• EN 45555: General methods for the assessment of the ability to recycle and recover electrical/electronic products
• REACH: Compliant with EU REACH regulation on chemical substances
• RoHS: Restriction of Hazardous Substances compliant
• WEEE: Compliant with Waste Electrical and Electronic Equipment directive

Applications & Use Cases

• High-current industrial motor control centres (MCCs) and power distribution panels
• Large pump, compressor, fan, and HVAC system switching
• Marine and offshore power distribution (DNV, LR, PRS, RINA approved)
• Heavy industrial machinery and process automation switching
• Renewable energy and generator control applications
• Global installations requiring a single universal coil voltage (100–250 V AC/DC)
