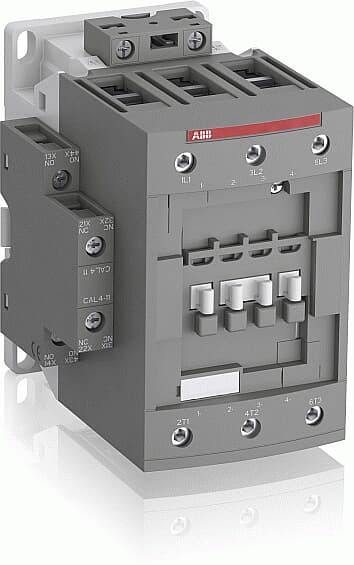

ABB 1SBL407001R1311 AF96-30-11-13 3-Pole 130A AC-1 45kW 400V 100-250V Coil Power Contactor AC Switching

The ABB AF96-30-11-13 power contactor (SKU: 1SBL407001R1311) is a 3-pole AC switching contactor rated at 130 A (AC-1) and 45 kW at 400 V AC (AC-3), designed for demanding industrial motor control and power switching applications. Part of ABB's proven AF Series, it features a wide-range coil accepting 100–250 V AC/DC, simplifying installation across diverse control voltage systems. Compact at 82 × 125.5 × 116 mm and weighing just 1.21 kg, the AF96-30-11-13 delivers reliable performance up to 1000 V IEC / 600 V UL.

Technical Specifications

Certifications & Standards

• CE: European Conformity — meets EU safety, health, and environmental requirements
• UKCA: UK Conformity Assessed — approved for Great Britain market
• UL 60947-1: UL certification to general rules for low-voltage switchgear and controlgear
• UL 60947-4-1: UL certification for contactors and motor starters
• UL 60335-2-40: UL certification for HVAC/R equipment safety
• UL 60335-2-40 LZGH2 A2L: UL certification for A2L refrigerant HVAC/R applications
• CSA C22.2 No. 60947-1:22: CSA certification — general rules for low-voltage switchgear
• CSA C22.2 No. 60947-4-1:22: CSA certification for contactors and motor starters
• CSA C22.2 No. 60335-2-40: CSA certification for HVAC/R equipment
• CSA C22.2 No. 60335-2-40 LZGH2 A2L: CSA certification for A2L refrigerant HVAC/R applications
• CSA: Canadian Standards Association general approval
• IEC/EN 60947-1: International/European standard — general rules for low-voltage switchgear and controlgear
• IEC/EN 60947-4: International/European standard — contactors and motor starters
• IEC 60947-5: International standard — control circuit devices and switching elements
• IEC 60715: Dimensions for DIN rail mounting of electrical equipment
• IEC 60068-227: Environmental testing standard for industrial equipment
• CB: IECEE CB Scheme — internationally recognised safety test certification
• CCC: China Compulsory Certification — approved for the Chinese market
• ABS: American Bureau of Shipping — approved for marine applications
• BV: Bureau Veritas — marine and offshore classification approval
• EN 45555: General methods for the assessment of the ability to recover materials and energy from electrical and electronic equipment
• REACH: Compliance with EU regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• WEEE: Waste Electrical and Electronic Equipment Directive compliance

Applications & Use Cases

• Industrial motor control and starting for pumps, fans, compressors, and conveyors
• HVAC and refrigeration systems requiring A2L refrigerant-compatible switching
• Marine and offshore power distribution (ABS, BV approved)
• Control panels and MCC (Motor Control Centre) assemblies up to 1000 V IEC
• Building automation and industrial process control switchboards
• Applications requiring broad control voltage flexibility (100–250 V AC/DC single coil)
