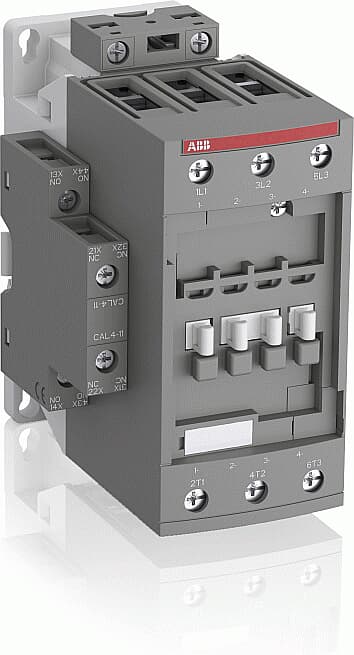

ABB 1SBL367001R1311 AF52-30-11-13 3-Pole 100A 690V AC-1 22kW AC-3 100-250V Coil Power Contactor AC Switching

The ABB AF52-30-11-13 power contactor (SKU: 1SBL367001R1311) is a 3-pole AC switching contactor rated at 100 A (AC-1) and 690 V IEC, delivering 22 kW at 400 V AC-3, with a wide-range coil accepting 100–250 V AC/DC (50/60 Hz). Designed for demanding industrial environments, the AF52-30-11-13 features a compact footprint of 67 × 125.5 × 111 mm and a lightweight 0.99 kg construction, making it ideal for control panels and motor switching applications. Its universal coil eliminates the need for separate AC and DC versions, simplifying procurement and inventory management.

Technical Specifications

Certifications & Standards

• CE: European Conformity — meets EU low voltage and EMC directives
• UKCA: UK Conformity Assessed — for Great Britain market compliance
• UL: Underwriters Laboratories listed for North American market
• CSA: Canadian Standards Association certified
• CCC: China Compulsory Certification for the Chinese market
• CB: IECEE CB Scheme — international safety certification
• ABS: American Bureau of Shipping — marine application approval
• BV: Bureau Veritas — marine and offshore certification
• UL 60335-2-40: Safety of household and similar electrical appliances — heat pumps, air conditioners
• UL 60335-2-40 LZGH2A2L: UL file reference for heat pump / HVAC application listing
• UL 60947-1: Low-voltage switchgear and controlgear — general rules (UL)
• UL 60947-4-1: Contactors and motor starters (UL)
• CSA C22.2 No. 60335-2-40: Canadian standard for heat pumps and air conditioning equipment
• CSA C22.2 No. 60335-2-40 LZGH2A2L: CSA file reference for HVAC application listing
• CSA C22.2 No. 60947-1:22: Low-voltage switchgear general rules (CSA)
• CSA C22.2 No. 60947-4-1:22: Contactors and motor starters (CSA)
• CSA C22.2: Canadian Electrical Code product certification
• IEC 60947-1 / EN 60947-1: Low-voltage switchgear and controlgear — general rules
• IEC 60947-4 / EN 60947-4: Contactors and motor starters
• IEC/EN 60947-1: Combined IEC/EN general rules for low-voltage switchgear
• IEC/EN 60947-4: Combined IEC/EN standard for contactors and motor starters
• IEC 60947-5 / IEC60947-5: Control circuit devices and switching elements
• IEC60947-4: Contactors and motor starters (IEC)
• IEC 60529 / EN 60529: Degrees of protection provided by enclosures (IP Code)
• IEC 60068-227: Environmental testing — combined vibration and climate
• EN45555: General methods for assessing the ability of energy-related products to be repaired, reused, upgraded, and recycled
• EN45555-91: Supplement to EN45555 for specific product categories
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals (EU)
• WEEE: Waste Electrical and Electronic Equipment Directive compliant

Applications & Use Cases

• Motor switching and control in industrial automation panels up to 22 kW / 400 V AC-3
• HVAC and heat pump systems — UL 60335-2-40 and CSA C22.2 No. 60335-2-40 listed
• Power distribution and load switching up to 100 A AC-1 / 690 V IEC
• Marine and offshore installations — ABS and Bureau Veritas approved
• Building automation, pump control, compressor switching, and conveyor systems
• Applications requiring universal 100–250 V AC/DC coil flexibility
