Schneider Electric LV850056SP MasterPact MTZ1 K70/K60/K80 Isolating Block Spare Air Circuit Breaker Accessory

% $-254.27

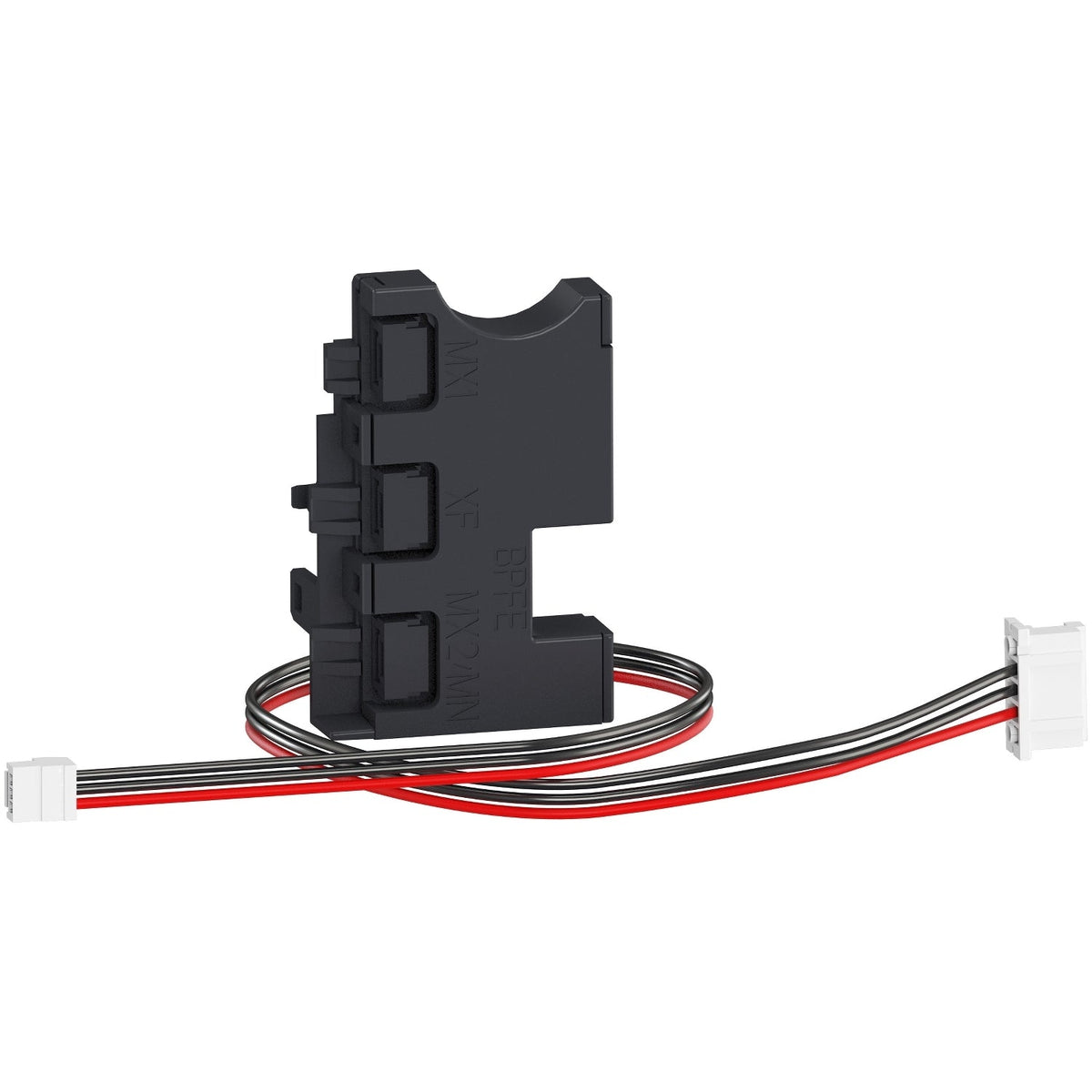

Schneider Electric LV850056SP isolating block – MTZ1 communicating coils
Schneider Electric LV850056SP isolating block – MTZ1 communicating coils

Schneider Electric LV850056SP MasterPact MTZ1 K70/K60/K80 Isolating Block Spare Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV850056SP
Catalog No: LV850056SP
Tariff Code (HS): 853890
Communication: Communicating
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$254.27

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric LV850056SP is an isolating block, short name K70/K60/K80, supplied as a spare part that protects the MX and XF communicating coils on MasterPact MTZ1 breakers. It mounts behind the control unit in the control enclosure and runs on a 480 V AC control circuit, and is rated for an ambient operating range of -35 to 70 degrees C, down to -40 degrees C in storage.

Technical Specifications

Reference LV850056SP
Brand Schneider Electric
Range MasterPact
Device short name K70, K60, K80
Product or Component Type Isolating block
Device Application Coil protection
Range compatibility MasterPact MX communicating coil, XF communicating coil
Control Type Communicating
Mounting Location Control enclosure
Localisation on device Behind control unit
[Uc] control circuit voltage 480 V AC
Ambient temperature, operation -35 to 70 °C
Ambient temperature, storage -40 to 85 °C
Provided equipment 1 instruction sheet
Offer type Spare part
Number of units in package 15

Selection Notes

The LV850056SP exists specifically to protect the MX and XF communicating coils when they report status back over the control unit's network — it is not required on a non-communicating coil setup. Confirm the control circuit is 480 V AC before ordering, since that is the voltage this isolating block is rated for. It mounts behind the control unit rather than at the terminal block, so access requires opening the control enclosure rather than the front cover.

Technical Details

Short Description
Isolating block spare part, protects MX/XF communicating coils, MasterPact MTZ1, 480 V AC.
Catalog No
LV850056SP
Delivery Date (Days)
30 days
Model Number
K70/K60/K80 Isolating Block
Tariff Code
853890
