Part number
LV848603SP
$50.22 On request Dispatch — · From TürkiyeGet a Quote

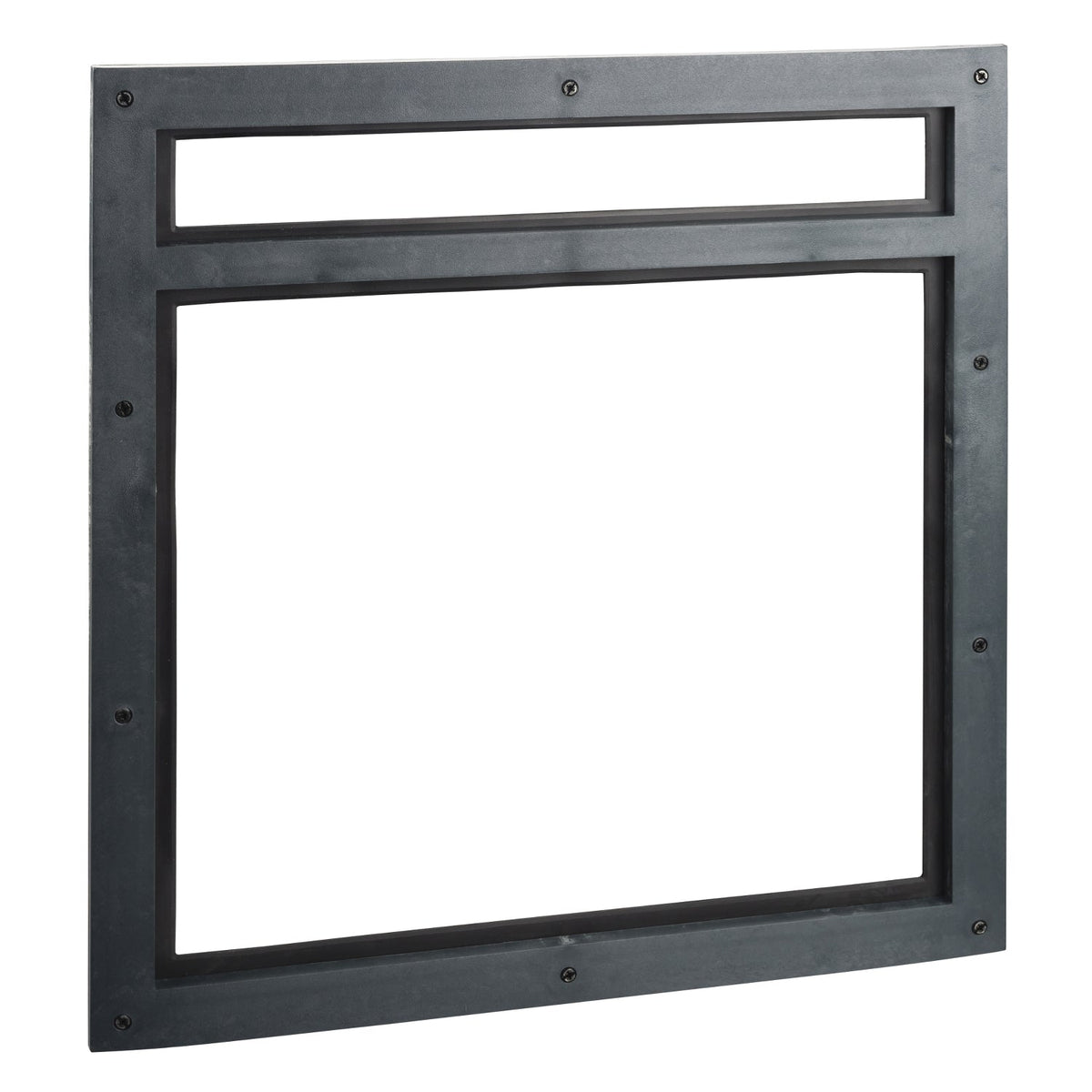

Schneider Electric LV848603SP MasterPact MTZ2/3 Door Escutcheon IP40 Drawout Air Circuit Breaker Accessory

Door escutcheon spare part, IP40, drawout MasterPact MTZ2/MTZ3.

Range
MasterPact
Product or Component Type
Escutcheon
Accessory / separate part category
Installation accessory
Range compatibility
Masterpact MasterPact MTZ2 circuit breaker, Masterpact MasterPact MTZ3 circuit breaker
Mounting Mode
Drawout
EAN
3606481173300
Description

About the LV848603SP

The Schneider Electric LV848603SP is a door escutcheon supplied as a spare part for drawout MasterPact MTZ2 and MTZ3 circuit breakers, raising the cubicle door's degree of protection to IP40 versus the IP30 rating of a free-standing installed breaker. It mounts on the cubicle door around the breaker front. It is supplied in packs of 20 with 1 instruction sheet included.

Selection Notes

Use the LV848603SP for drawout MTZ2/MTZ3 breakers, where the chassis and cradle geometry differs from the fixed version covered by the LV848601SP. The escutcheon is optional equipment that lifts the cubicle door's protection to IP40, compared with IP30 when the breaker is free-standing without it, and it remains compatible with the breaker being racked in, test, or out. It is a spare part sold in packs of 20 with an instruction sheet included. The instruction sheet included with the pack covers the door cut-out and fastening steps for the retrofit.

Specification

Full specification

20 values · Last verified 30 Oct 2026

Main 5

Range MasterPact
Product or Component Type Escutcheon
Accessory / separate part category Installation accessory
Range compatibility Masterpact MasterPact MTZ2 circuit breaker, Masterpact MasterPact MTZ3 circuit breaker
Mounting Mode Drawout

Complementary 2

Provided equipment 1 instruction sheet
Offer type Spare part

Contractual warranty 1

Warranty (in months) 18
Show all 20 specifications ↓ Show less ↑12 more values in Identification, Logistics.

Identification 7

Part number LV848603SP
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606481173300

Logistics 5

Country of origin PL
Shipping weight 0.408 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for LV848603SP

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the LV848603SP

What is the HS code of LV848603SP for customs?

The tariff (HS) code on file for LV848603SP is 853890.

What is the EAN of LV848603SP?

The EAN (GTIN) of LV848603SP is 3606481173300.

Where does LV848603SP ship from, and how fast?

LV848603SP ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
