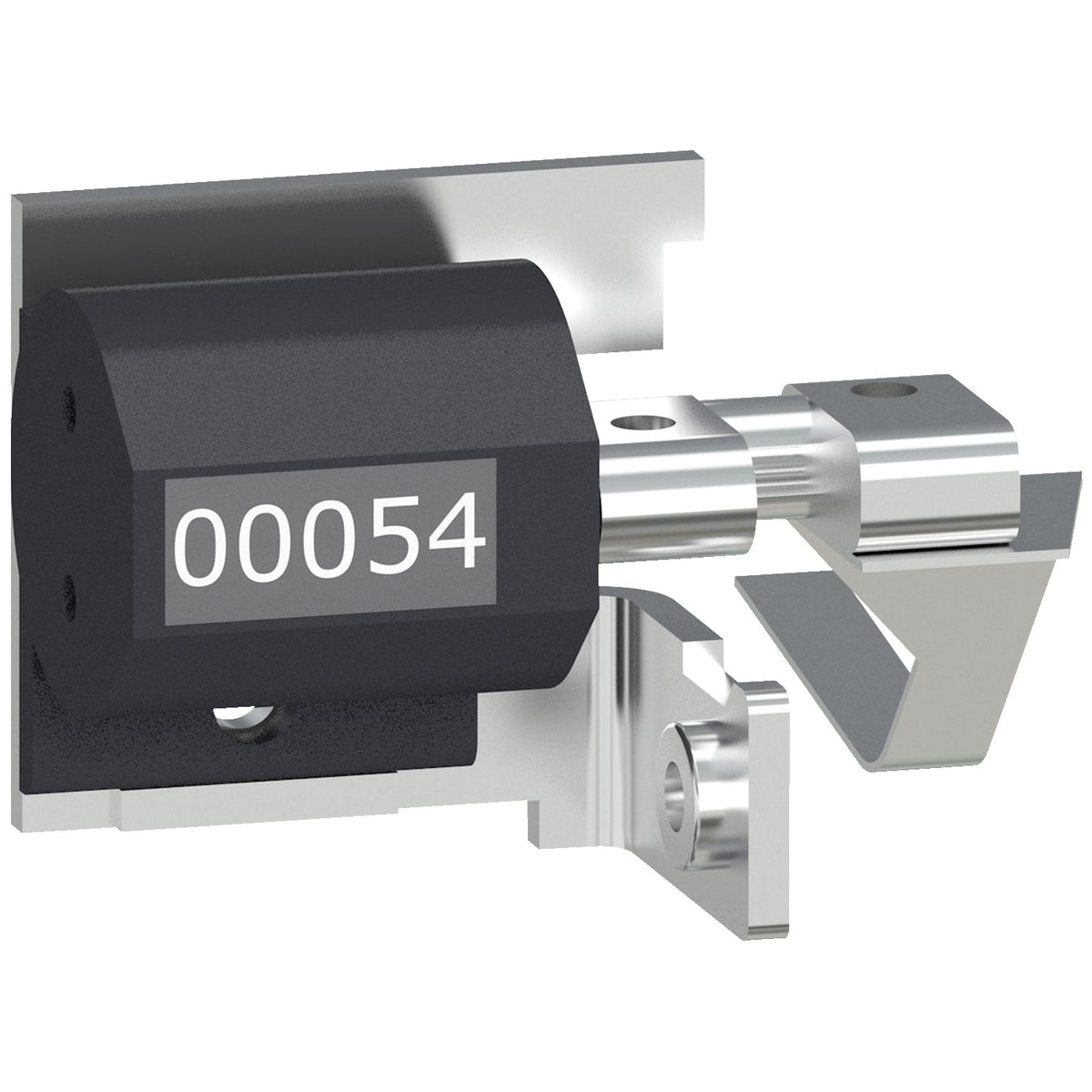

The Schneider Electric LV848535 is a mechanical operation counter with a 5-digit display for MasterPact MTZ2 and MTZ3 circuit breakers, fixed or drawout. It records the cumulative number of open/close operations the breaker has performed, with no reset function. It is sold in inner packs of 10 and outer cartons of 80 units.
The LV848535 has no reset function, so the 5-digit count is a permanent maintenance record of total operations rather than a figure that can be zeroed after service; track remaining mechanical life against the breaker's rated endurance using this count. It is purely mechanical, with no electrical output for remote monitoring — pair it with the EIFE Ethernet module if operation count needs to be read remotely. It fits both fixed and drawout MTZ2/MTZ3 breakers. Because the display is mechanical, it continues to show the correct count even with no control power applied to the breaker.
| Range | MasterPact |
|---|---|
| Product or Component Type | Operation counter |
| Accessory / separate part category | Monitoring accessory |
| Range compatibility | Masterpact MasterPact MTZ2 circuit breaker, Masterpact MasterPact MTZ3 circuit breaker |
| Display Type | Mechanical |
|---|---|
| Display digits | 5 |
| Reset | Without |
| Warranty (in months) | 18 |
|---|
| Part number | LV848535 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480808067 |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.6 in (4.0 cm) |
| Package 1 Width | 3.5 in (9.0 cm) |
| Package 1 Length | 3.5 in (9.0 cm) |
| Package weight(Lbs) | 1.3 oz (38.0 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 2.4 in (6.0 cm) |
| Package 2 Width | 10.6 in (27.0 cm) |
| Package 2 Length | 7.09 in (18.0 cm) |
| Package 2 Weight | 17.0 oz (481.0 g) |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 11.8 in (30.0 cm) |
| Package 3 Width | 11.8 in (30.0 cm) |
| Package 3 Length | 15.7 in (40.0 cm) |
| Package 3 Weight | 9.557 lb(US) (4.335 kg) |
| Shipping weight | 0.038 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for LV848535 is 853890.
The EAN (GTIN) of LV848535 is 3606480808067.
LV848535 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
