Schneider Electric LV848601SP MasterPact MTZ2/3 Door Escutcheon IP40 Fixed Air Circuit Breaker Accessory

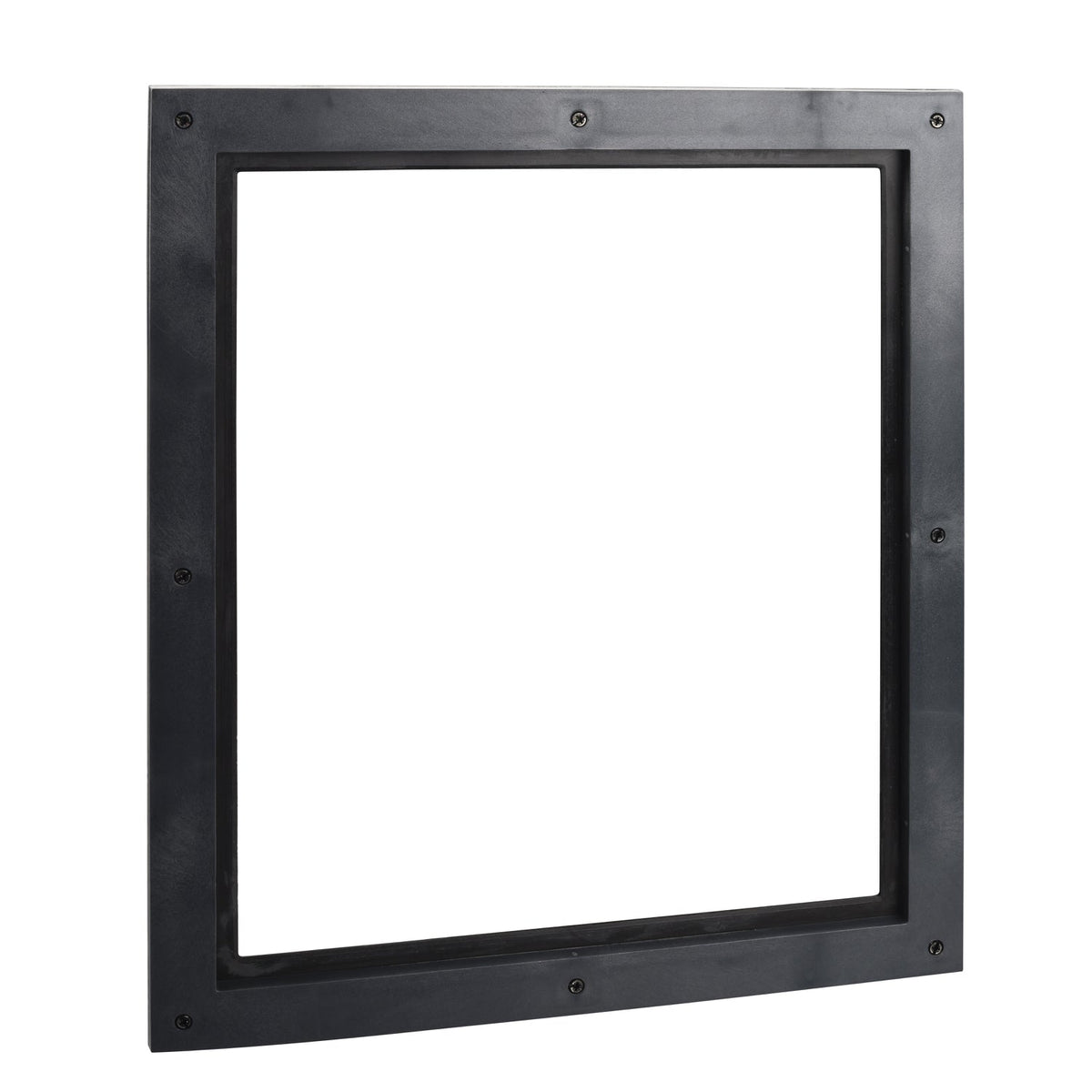

The Schneider Electric LV848601SP is a door escutcheon supplied as a spare part for fixed MasterPact MTZ2 and MTZ3 circuit breakers, raising the cubicle door's degree of protection to IP40. It is an installation accessory mounted on the panel door around the breaker's front face. It is supplied in packs of 20 with 1 instruction sheet included.

Technical Specifications

Selection Notes

The LV848601SP is sized for fixed-mounted MTZ2/MTZ3 breakers only; the LV848603SP covers the equivalent escutcheon for drawout breakers, which sit differently relative to the door opening. Fitting it raises the protection degree at the door cut-out to IP40, compared with the breaker's own IP30 rating when installed free-standing without an escutcheon. It is a spare part sold in packs of 20, with an instruction sheet included for the retrofit. The instruction sheet included with the pack covers the door cut-out and fastening steps for the retrofit.
