Schneider Electric LV947365 MasterPacT MTZ Active MX Opening Release 380-480V Air Circuit Breaker Accessory

% $-121.30
Schneider Electric LV947365 MX opening voltage release – MTZ Active 380-480 V AC
Schneider Electric LV947365 MX opening voltage release – MTZ Active 380-480 V AC

Schneider Electric LV947365 MasterPacT MTZ Active MX Opening Release 380-480V Air Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: LV947365
Catalog No: LV947365
Tariff Code (HS): 853890
Rated Voltage: 380-480 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$121.30

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

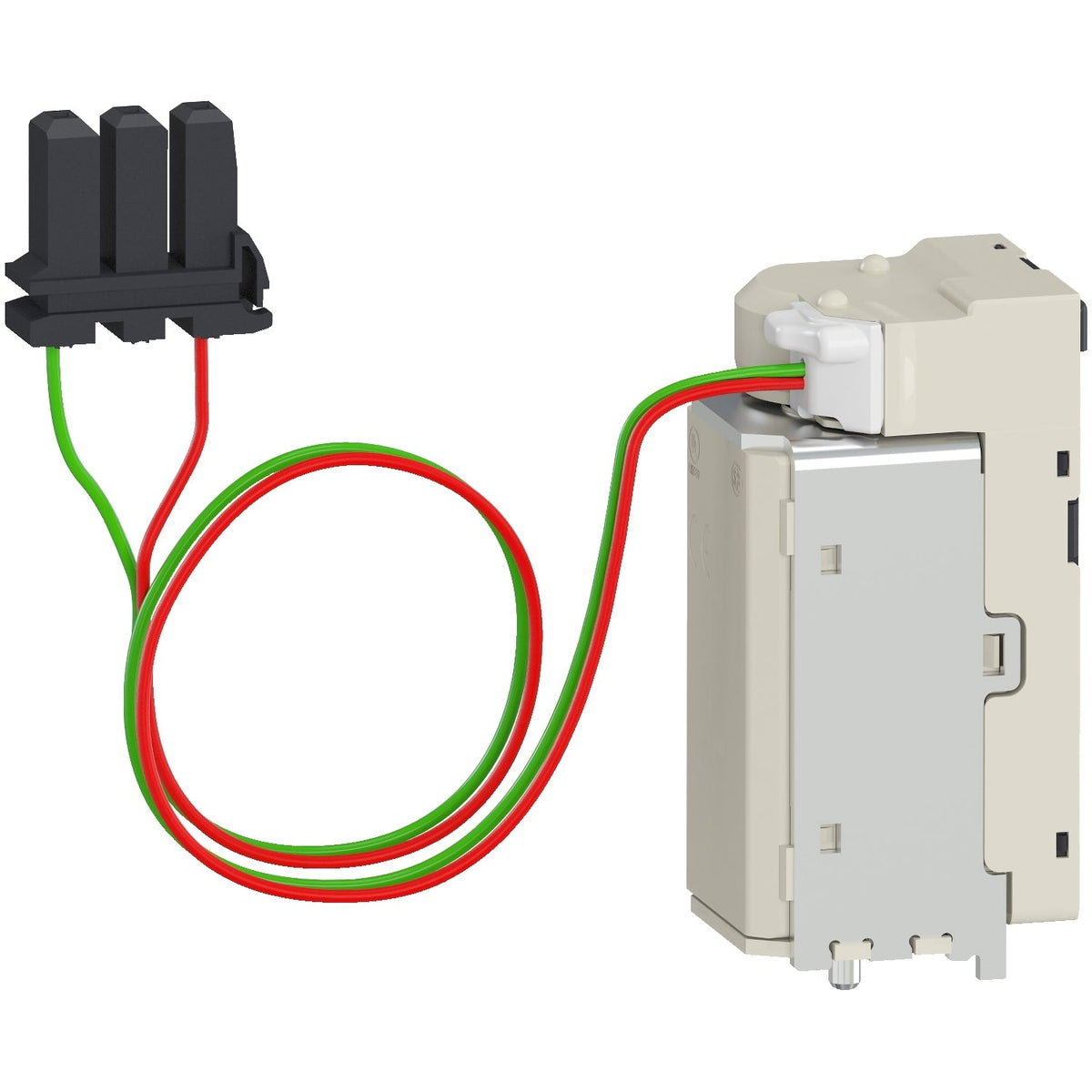

The Schneider Electric LV947365 is an MX opening coil for fixed MasterPacT MTZ1 and MTZ2 Active circuit breakers fitted with the MicroLogic Active control unit, supplied for 380-480 V AC 50/60 Hz only. Energizing the coil trips the breaker open within 60 ms once voltage reaches 0.7-1.1 Un. It is sold as a single piece with an instruction sheet for installation.

Technical Specifications

Reference LV947365
Brand Schneider Electric
Range MasterPacT
Device short name MX
Product or Component Type Voltage release
Device Application Control
Range compatibility MasterPacT MTZ1, MTZ2 Active circuit breaker
Voltage release type Opening coil
Control Type Standard
[Un] voltage power supply 380-480 V AC 50/60 Hz
Threshold tripping voltage 0.7-1.1 Un on opening
Holding power consumption 4.5 VA
Circuit breaker mounting mode Fixed
Maximum response time 60 ms on MTZ1, MTZ2, and MTZ3 opening
Number of units in package 1

Selection Notes

The LV947365 is the AC-only, 380-480 V top of the MX opening-coil range, while the 100-130 V and 200-250 V siblings also accept DC supply; confirm the shunt-trip source is AC before ordering it. Like the rest of the MX family it is limited to MTZ1 and MTZ2 Active frames. The 0.7-1.1 Un trip window and 60 ms response time are unchanged from the lower-voltage variants. It ships one piece per package, matching the rest of the MasterPacT Active MX coil family.

Technical Details

Short Description
MX opening voltage release, fixed MasterPacT MTZ1/MTZ2 Active, 380-480 V AC.
Rated Voltage (VAC)
380-480 V AC
Mounting Type
Fixed
Catalog No
LV947365
Delivery Date (Days)
30 days
Model Number
MX
Tariff Code
853890
